塑料管夹卡箍 nylon hose clamp,Kwik Clamp™
多种规格可选 Ø5.6-Ø85mm均为标准在库零件。产品设计重量轻-比传统金属喉箍轻65%!
双柄塑料软管夹-可拆卸和重复使用的塑料软管卡箍

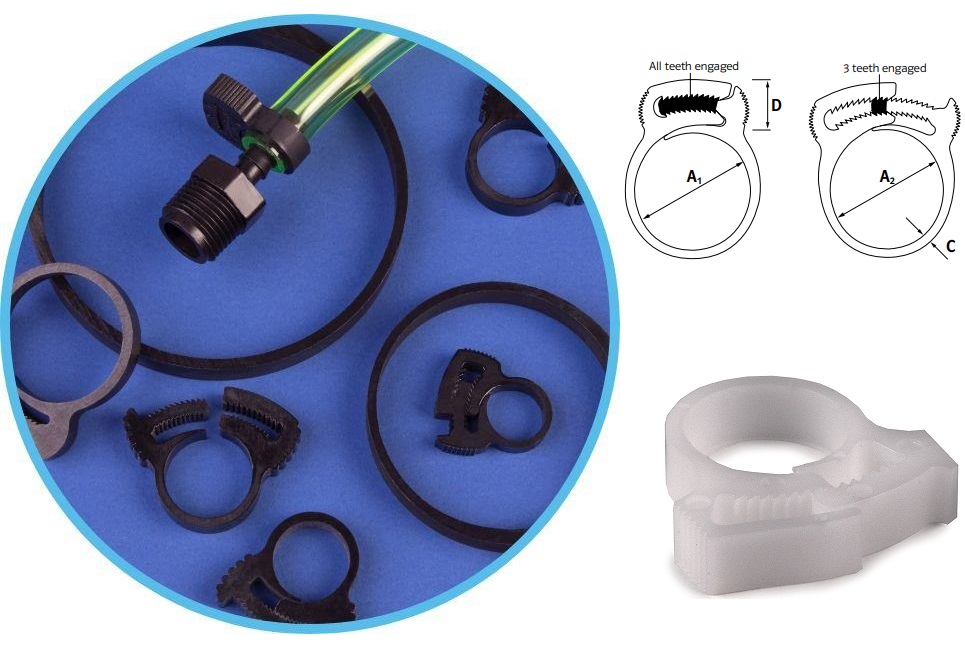

由其独特的双排互锁齿颚形成。双排齿提供两倍以上类似产品获得的夹紧力
自锁结构-可通过向“头部”施加侧向运动来拆解
可手动安装
使用加工工具安装,以实现安全张紧
它具有优异的耐化学性
Sinohua尼龙软管夹的创新设计使其能够固定电线、电缆、软管和管道。
信诺华工业135系列塑料软管夹没有锋利的边缘,因此与传统金属钢带卡箍不同,其安装和工作更安全
根据卡箍尺寸、软管质量和接头类型,可承受200 psi及以上的压力。较小的直径可承受较高的压力。
施加均匀的向内径向力,即与大多数夹具不同,压力均匀地施加在软管上
高耐化学性,包括汽油(甚至甲醇)、机油和大多数溶剂
重量轻-比许多金属夹替代品轻65%!
尼龙卡箍管夹尺寸选型参照
尼龙软管夹产品资料下载
箍紧外径范围(CD=clamping diameter))卡箍本体宽度W
Article# CD W
1350100 Ø5.6 - 6.5 4.2
1350101 Ø6.6 - 8.0 5.0
1350102 Ø8.0 - 9.2 5.0
1350103 Ø9.2 - 10.5 5.0
1350104 Ø10.5 - 12.0 6.0
1350106 Ø12.8 - 15.0 7.0
1350107 Ø15.0 - 17.2 7.0
1350108 Ø17.0 - 18.5 7.0
1350109 Ø18.2 - 20.5 7.0
1350110 Ø20.5 - 23.0 7.0
1350111 Ø22.0 - 25.0 7.0
1350112 Ø25.0 - 28.0 7.0
1350113 Ø27.0 - 30.0 7.5
1350114 Ø29.5 - 32.5 7.5
1350115 Ø32.5 - 35.5 8.0
1350116 Ø35.0 - 38.5 8.0
1350117 Ø38.0 - 41.5 8.0
1350118 Ø41.0 - 44.5 8.0
1350119 Ø44.0 - 47.5 8.0
1350120 Ø47.0 - 50.5 8.0
1350121 Ø50.0 - 53.5 8.0
1350122 Ø53.0 - 57.0 8.0
1350123 Ø56.5 - 60.5 8.0
1350124 Ø60.0 - 65.0 8.0
1350125 Ø66.0 - 70.0 8.0
1350126 Ø70.0 - 75.0 8.0
1350127 Ø76.0 - 80.0 8.0
1350128 Ø80.0 - 85.0 8.0
产品说明
信诺华工业135系列软管卡箍的独特之处在于,它具有双排棘齿,以确保在所有类型的软管/配件组合上牢固地夹紧。根据机械强度测试,我们的双握把管夹满足并通常超过相同设计的其他品牌的强度。它可以承受大量的安装压力,以实现棘轮式夹具中可能的最大闭合力。坚固的头部设计即使在最恶劣的应用环境中表现良好。此外,该设计在中小压力流通之软管和管道时特别实用。
Sinohua Kwik Clamp™ Nylon Double Bond Hose Clamps
PRODUCT DESCRIPTION
The Double Grip hose clamp is unique in that it has a second row of teeth to insure a firm grip on hose/fitting combinations of all types. Based on mechanical strength testing, our double grip clamp meets and generally exceeds the strength of other brands of the same design. It can withstand a great deal of installation pressure to accomplish the maximum amount of closure force possible in a ratchet style clamp. The substantial head design performs well in the most strenuous circumstances and is more protected from release from an accidental "blow to the head".
No sharp edges therefore safer to install and work around unlike metal worm drive clamps
Resists pressures up to 200 psi and above dependent on clamp size, hose quality and fitting type. Smaller diameters withstand higher pressures.
Exerts a uniform inward radial force, i.e. pressure is uniformly applied to hose unlike most clamps
High chemical resistance including gasoline (even with methanol), oils and most solvents
Light weight - up to 65% lighter than many metal clamp alternatives
Fire resistant - Nylon 6/6 is UL 94 V2 self extinguishing
Fully RoHS compliant
DOUBLE LOCKING HEAVY DUTY NYLON HOSE CLAMPS
these nylon hose clamps called Kwik Clamp now withstands temperatures ranging from -40°F to 302°F (-40°C to 150°C). Kwik Clamps handle moderate non-hydraulic pressure applications in a wide variety of industries.
Kwik Clamps from Sinohua offer a patented double row of durable teeth to ensure a strong bond that will not vibrate loose. They're made from U.L.-listed, black, nylon 6-6 and cannot corrode or rust like some of their metal counterparts. As their name implies, installation and removal is quick; no tools are needed.
Kwik Clamps are light weight, non-conductive, and may be reused. They're well stocked and available for same day or JIT (Just In Time) shipment. Over thirty sizes are offered and range from ¼" through 4-¼" nominal O.D. An assortment of fittings, tubing, and reinforced hose is also stocked for complete fluid or air transfer systems.
INSTALLATION OF SINOHUA KWIK CLAMP™: Slide the clamp over the hose to the desired position and simply pinch the two ends of the clamp together. If necessary, use pliers to tighten.
These double gripping clamps from Sinohua are ideal for use in automotive, electrical, marine, medical, agricultural, and many other applications.
