滑动锁扣-等效eberhard 1-485-MB
滑动锁-经济型轻载应用门扣
经济型轻载推入式闭合卡扣式滑动门扣，手指轻拉即可卡扣锁紧。
按压开门及锁闭，滑动锁提供了一种经济实惠的解决方案，可一键关闭以固定面板或门。这些锁扣采用无钥匙设计。无需用到任何工具。

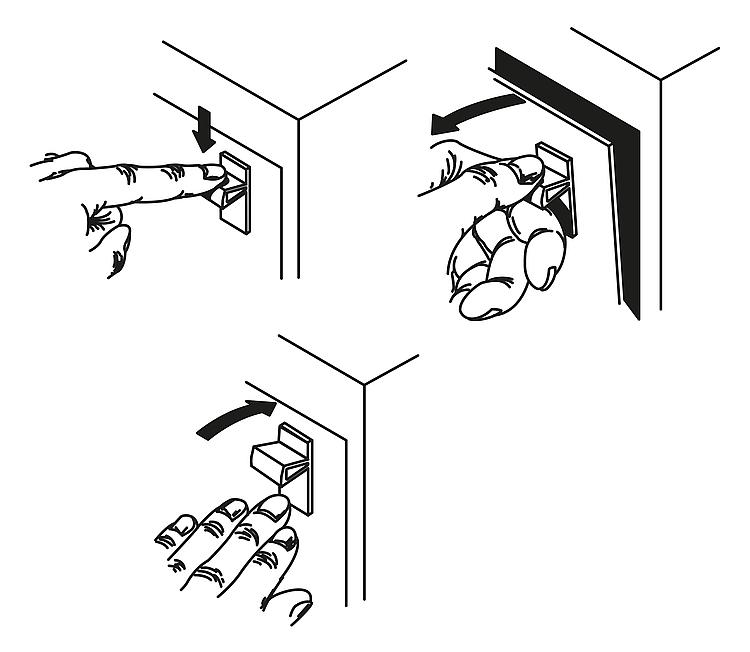

操作简单；向后拉闩锁以打开面板，然后松开闩锁，闩锁返回到原来的锁定位置。
材料：PA6+5%GF
面板厚度：1~2m/m
最大静载荷：200N
饰面：哑光黑色，灰色，白色
符合ROHS
物料编号：黑色 15934R，白色 16142Z
滑动门锁产品尺寸图：
| 物料号 |
A
|
B | C | D | E | F | G | H | I | J | Hole Size (mm) | Colour |
| 15934R | 45 | 28 | 22 | 15 | 6.8 | 13 | 25 | 8.8 | 6.3 | 2 |
长方形孔 39.5x25.5
|
black
|
| 16142Z | 45 | 28 | 22 | 15 | 6.8 | 13 | 25 | 8.8 | 6.3 | 2 |
长方形孔 39.5x25.5
|
white |
按下关闭滑动闩锁，卡入式
所有这些塑料注塑制作的滑动锁的安装成本都很低，安装和操作也很方便，每个滑动锁的尺寸和抓握风格都有所不同，适合不同的应用。所有这些都提供在一个矩形孔中的卡扣安装，并且都使用简单的滑动动作打开。
安装方式：
将滑动锁主体（棘爪端先）放入面板孔中。
将锁体的后（弹簧）端推入孔中。
塑料滑动门锁通过弹簧张力保持在关闭位置。不锈钢弹簧嵌套在一体式滑动锁主体的后端，并接触面板孔的后边缘。
当面板被推动关闭时，倾斜的棘爪边缘与支撑角相遇，并将闩锁向后滑动。当面板完全关闭时，棘爪离开支架边缘，弹簧将闩锁向前滑动至关闭位置。
用手指向后滑动闩锁即可打开面板。
这款塑料滑动锁扣外观干净、装配后几乎和柜门外表面齐平。而且面板孔总是隐藏的。
这些滑动闩锁非常适合用于小型金属外壳、通讯机柜及小型电气控制柜。应用包括各种类型的机械和设备上的检修面板、盖子和门。
行业参考编号：eberhard 1-485-MB|按扣,southco A3-40-625-12、A3-40-525-12,UL94V0版本（southco A3-99-187-12和southco A3-99-130-12等效品）可根据客人要求提供。
除此之外，信诺华工业还可提供一种外露操作手柄的滑动锁。如下所示
可以看到，由于操控手柄外露，因此提供更大的抓握力。开关门更加方便，但是缺点也是显而易见的。会突出柜门表面比较多。
点击这里可以下载观摩这款外露操作手柄滑动锁的开关门动画视频，可以非常清楚地明白这些无工具门锁的妙处。
Slide Latch (Snap lock Slam Latch)
Push-to-Close Snap-in Slide Latch
Push to Close
Material: PA6+5%GF
Panel thickness: 1~2m/m
Maximum Static Load:200N
Sliding latches offer an economical solution with a push to close action for securing your panel or door. These latches are a keyless design.
Installation of these Sliding Latches :
Place the latch body, pawl end first, into the panel hole.
Push the back (spring) end of the latch body into the hole.
Slide the appropriate snap clip (see the table) onto the latch body underside, starting at the pawl end.
The Plastic Slide Latch from Sinohua is held in the closed position by spring tension. A stainless steel spring is nested at the back end of the one-piece latch body, and contacts the back edge of the panel hole.
When the panel is pushed closed, the sloped pawl edge meets the support corner and slides the latch back. As the panel closes fully, the pawl clears the edge of the support and the spring slides the latch forward to the closed position.
The panel is opened by sliding the latch back with a finger.
This black thermoplastic latch from Sinohua has a clean, flush appearance. The panel hole is always concealed.
These slide latches are ideal for small metal, plastic or composite sheet material commonly used to construct cabinets and enclosures. Applications include access panels, covers and doors on various types of machinery and equipment.
Operation is simple; pull back the latch to open panel, then release and the latch returns to it’s original locked position.
