高强度环槽huck铆钉
材料选项包括中碳钢和铝。

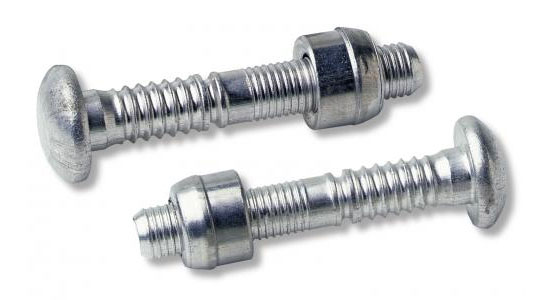

信诺华®工业高强度环槽铆钉是一个由类似螺旋纹路结构的铆钉主体和配套轴环组成的两件式高强度紧固组件系统。是一款已经在高铁城轨等大型装备久经考验的可完全媲美Avdel Maxlok®系列的产品。
尽管它们属于单边操作紧固件系列,但事实上严格意义上来说不能算单边盲铆,完成这个环槽铆钉的装配需要从工件的两侧进入以安装铆钉本体和轴环套。与行业其他盲铆紧固件系列中的任何其他产品相比,它们提供了更高的剪切强度、拉伸强度、夹紧载荷和抗振动性能。
材料选项包括中碳钢和铝,通用可选尺寸为3/16“或1/4”。
信诺华®工业高强度套环铆钉锁紧螺栓紧固系统依赖于将轴环正确安装到铆钉销体上,以获得最大的预紧性能。当我们安装时,套环被压在铆钉销主体上,套环中的材料受力流入销体表面的螺旋状凹槽,形成一个牢固可靠的紧固连接。此外,随着被紧固部件受力,套环底部的材料也会受力流动,套筒外径随之膨胀增大并和被紧固部件紧密结合形成燕尾槽一样的凸缘。这就形成了一个完整的承载表面。
此外,这种套环铆钉由于多重螺旋结构设计,它还是一种多用途夹紧固定部件。这意味着一款铆钉可以容纳厚度变化很大的被紧固材料或应用部件。这使得选型设计及一线操作人员更加方便,从而减少库存、组装时间和成本。而且,这种高强度环槽铆钉亦可设计作为防盗防拆紧固系统采用。
头型head | Industrial P/N | Sinohua P/N | Description |
扁头 | 01901-70610 | 115444449 | 3/16" Pin .062-.625 Grip Range Trivalent Zinc Clear Maxlok®1901 Lockbolt |
01981-70600 | 11544455 | Collar-3/16" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01901-70620 | 11544450 | 3/16" Pin .312-1.250 Grip Range Trivalent Zinc Clear Maxlok®1901 Lockbolt | |
01981-70600 | 11544455 | Collar-3/16" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01901-70810 | 11544451 | 1/4" Pin .062-.625 Grip Range Trivalent Zinc Clear Maxlok®1901 Lockbolt | |
01981-70800 | 11544456 | Collar-1/4" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01901-70820 | 11544452 | 1/4" Pin .312-1.250 Grip Range Trivalent Zinc Clear Maxlok®1901 Lockbolt | |
01981-70800 | 11544456 | Collar-1/4" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01921-00610 | 11544582 | 3/16" .062-.625 Grip Range Avdel Maxlok®1921 Aluminum Lockbolt | |
01985-00600 | 11544453 | Collar-3/16" Collar Diameter Plain Finish Aluminum Avdel Maxlok® for Flanged Lockbolt | |
01985-00620 | 11544583 | 3/16" .312-1.250 Grip Range Avdel Maxlok®1921 Aluminum Lockbolt | |
01985-00600 | 11544453 | Collar-3/16" Collar Diameter Plain Finish Aluminum Avdel Maxlok® for Flanged Lockbolt | |
01921-00810 | 11455584 | 1/4" .062-.625 Grip Range Avdel Maxlok®1921 Aluminum Lockbolt | |
01985-00800 | 11544454 | Collar-1/4" Collar Diameter Plain Finish Aluminum Avdel Maxlok® for Flanged Lockbolt | |
01921-00820 | 11544585 | 1/4" .312-1.250 Grip Range Avdel Maxlok®1921 Aluminum Lockbolt | |
01985-00800 | 11544454 | Collar-1/4" Collar Diameter Plain Finish Aluminum Avdel Maxlok® for Flanged Lockbolt | |
沉头 | 01902-70610 | 21540011 | 3/16" Pin .094-.625 Grip Range Trivalent Zinc Clear Maxlok® 1902 Lockbolt |
01981-70600 | 11544455 | Collar-3/16" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01902-70620 | 21540012 | 3/16" Pin .311-1.25 Grip Range Trivalent Zinc Clear Maxlok® 1902 Lockbolt | |
01981-70600 | 11544455 | Collar-3/16" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
蘑菇头 | 01903-70610 | Mushroom Head Steel Maxlok Lock Bolt in 3/16" diameter,.062 - .625'' grip range | |
01981-70600 | 11544455 | Collar-3/16" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01903-70620 | Mushroom Head Steel Maxlok Lock Bolt in 3/16" diameter,.312 - 1.25'' grip range | ||
01981-70600 | 11544455 | Collar-3/16" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01903-70810 | Mushroom Head Steel Maxlok Lock Bolt in 1/4" diameter,.062 - .625'' grip range | ||
01981-70800 | 11544456 | Collar-1/4" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01903-70820 | Mushroom Head Steel Maxlok Lock Bolt in 1/4" diameter,.312 - 1.25'' grip range | ||
01981-70800 | 11544456 | Collar-1/4" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt | |
01903-70832 | Mushroom Head Steel Maxlok Lock Bolt in 1/4" diameter,1.1 - 2.04'' grip range | ||
01981-70800 | 11544456 | Collar-1/4" Collar Dia Trivalent Zinc Finish Steel Avdel Maxlok® for Flanged Lockbolt |
信诺华®工业高强度环槽铆钉的一些典型优点:
已经在高铁城轨等超级严苛条件下运行,实现了60000小时无故障。
夹紧范围广,适合各种不同厚度的应用场景
高剪切和抗拉强度
用于高速装配的高强度
卓越的抗振动性能
始终如一的高性能
减少了紧固件库存,简化了库存控制
我们专门给轨道交通,新能源汽车,风力发电,机场登机桥配套服务提供各种高质量机械设备用零部件的公司(我们的产品是最基础的工业零件单体,如果用BOM表的概念来看,我们的BOM中就只有一两个子件),我们定位是为行业龙头企业提供售后无忧客户安心的产品和服务。
The Maxlok® lockbolt is a two-piece assembly consisting of a bolt and collar. Although they are in the blind fastener family, they are not blind fasteners as access is required from both sides of the workpiece to install the bolts and collars. They provide higher shear strength, tensile strength, clamp load, and vibration resistance than any other product in the Avdel® blind fastener family. Material options include aluminum and steel in sizes of 3/16" or 1/4". The Maxlok® lockbolt fastening system relies on the proper installation of the collar onto the bolt for maximum joint performance. The collar is pressed onto the bolt and material from the collar flows into the grooves of the bolt creating a virtually tamper-proof joint. Additionally, as the application draws closer together, a flange is formed at the base of the collar next to the rear application sheet. This creates a load-bearing surface, which absorbs the force of setting the fastener. Otherwise, the setting force, or clamp load, might spread into the application and damage the material. The Maxlok® lockbolt does not contain a break notch so it is a multi-grip fastener. Multi-grip means the bolt can accommodate materials or application components with widely varying thicknesses. This allows one bolt to do the job of two or more single grip range fasteners, thus reducing inventory, assembly time and cost.
Typical features
- Wide grip range to suit a wide variety of applications
- High shear and tensile strength
- High strength for high-speed assembly
- Excellent vibration resistance
- Consistent, high performance
- Robust and rugged installation tools
- Reduced fastener inventory and simpler stock control
