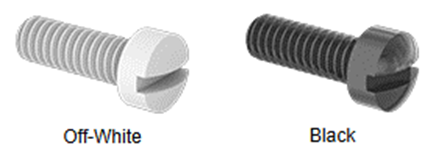

塑料螺丝 Plastic screws
塑料螺丝 Plastic screws
用于装配的紧固零件
多种不同产品规格可供选择
各种规格均有现成模具
用于装配的紧固零件
多种不同产品规格可供选择
各种规格均有现成模具
塑料螺丝 Plastic screws规格如下
Plastic Socket Head Screws
| Nylon Plastic | ||||||||

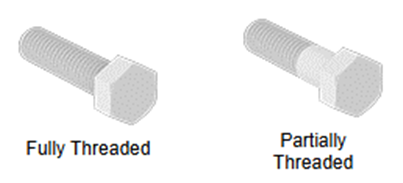

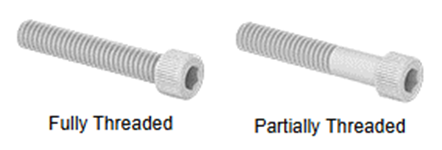

| Part NO. | Lg. | Thread Specifications | Threading | Min. Thread Lg. | Head Dia. | Head Ht. | Drive Size | Color |
| 95868A130CHN | 1/8" | 2-56 | Fully Threaded | __ | 9/64" | 0.086" | 5/64" | Black,Off-White |
| 95868A131CHN | 3/16" | 2-56 | Fully Threaded | __ | 9/64" | 0.086" | 5/64" | Black,Off-White |
| 95868A132CHN | 1/4" | 2-56 | Fully Threaded | __ | 9/64" | 0.086" | 5/64" | Black,Off-White |
| 95868A133CHN | 5/16" | 2-56 | Fully Threaded | __ | 9/64" | 0.086" | 5/64" | Black,Off-White |
| 95868A134CHN | 3/8" | 2-56 | Fully Threaded | __ | 9/64" | 0.086" | 5/64" | Black,Off-White |
| 95868A135CHN | 1/2" | 2-56 | Fully Threaded | __ | 9/64" | 0.086" | 5/64" | Black,Off-White |
| 95868A252CHN | 3/32" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A254CHN | 1/8" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A253CHN | 5/32" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A255CHN | 3/16" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A256CHN | 1/4" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A251CHN | 9/32" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A257CHN | 5/16" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A258CHN | 3/8" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A259CHN | 7/16" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A260CHN | 1/2" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A261CHN | 9/16" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A262CHN | 5/8" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A270CHN | 11/16" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A263CHN | 3/4" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A264CHN | 7/8" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A265CHN | 1" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A266CHN | 1 1/8" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A267CHN | 1 1/4" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A268CHN | 1 3/8" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A269CHN | 1 1/2" | 4-40 | Fully Threaded | __ | 0.183" | 0.112" | 3/32" | Black,Off-White |
| 95868A290CHN | 3/32" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A291CHN | 1/8" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A292CHN | 5/32" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A293CHN | 3/16" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A294CHN | 1/4" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A295CHN | 5/16" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A296CHN | 3/8" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A297CHN | 7/16" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A298CHN | 1/2" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A299CHN | 5/8" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A300CHN | 11/16" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A301CHN | 3/4" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A302CHN | 7/8" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A304CHN | 1" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A303CHN | 1 1/8" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A305CHN | 1 1/4" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A307CHN | 1 1/2" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A310CHN | 1 3/4" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A311CHN | 1 7/8" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A312CHN | 2 1/4" | 6-32 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A904CHN | 1/4" | 6-40 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A906CHN | 3/8" | 6-40 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A908CHN | 3/4" | 6-40 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A910CHN | 1" | 6-40 | Fully Threaded | __ | 0.226" | 0.138" | 7/64" | Black,Off-White |
| 95868A337CHN | 1/8" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A338CHN | 3/16" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A340CHN | 1/4" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A339CHN | 9/32" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A341CHN | 5/16" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A342CHN | 3/8" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A343CHN | 7/16" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A344CHN | 1/2" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A346CHN | 5/8" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A347CHN | 3/4" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A348CHN | 7/8" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A349CHN | 1" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A350CHN | 1 1/8" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A351CHN | 1 1/4" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A352CHN | 1 3/8" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A353CHN | 1 1/2" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A354CHN | 1 3/4" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A355CHN | 2" | 8-32 | Fully Threaded | __ | 0.27" | 0.164" | 9/64" | Black,Off-White |
| 95868A387CHN | 1/8" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A388CHN | 3/16" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A389CHN | 1/4" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A390CHN | 5/16" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A391CHN | 3/8" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A392CHN | 1/2" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A393CHN | 5/8" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A395CHN | 3/4" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A397CHN | 1" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A398CHN | 1 1/4" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A399CHN | 1 1/2" | 10-24 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A080CHN | 1/8" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A082CHN | 3/16" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A084CHN | 1/4" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A085CHN | 5/16" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A087CHN | 3/8" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A089CHN | 1/2" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A090CHN | 5/8" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A091CHN | 3/4" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A095CHN | 7/8" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A092CHN | 1" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A093CHN | 1 1/4" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A096CHN | 1 1/2" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A098CHN | 2" | 10-32 | Fully Threaded | __ | 5/16" | 0.19" | 5/32" | Black,Off-White |
| 95868A733CHN | 3/16" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A734CHN | 1/4" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A736CHN | 5/16" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A735CHN | 3/8" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A740CHN | 1/2" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A741CHN | 5/8" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A742CHN | 3/4" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A743CHN | 7/8" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A744CHN | 1" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A739CHN | 1 1/8" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A745CHN | 1 1/4" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A746CHN | 1 1/2" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A747CHN | 1 3/4" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A750CHN | 2" | 1/4"-20 | Partially Threaded | 1 3/32" | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A751CHN | 2 1/4" | 1/4"-20 | Partially Threaded | 1" | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A752CHN | 2 1/2" | 1/4"-20 | Partially Threaded | 1 1/8" | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A753CHN | 3" | 1/4"-20 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A077CHN | 3/16" | 1/4"-28 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A078CHN | 1/4" | 1/4"-28 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A079CHN | 3/8" | 1/4"-28 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A081CHN | 3/4" | 1/4"-28 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A094CHN | 1" | 1/4"-28 | Fully Threaded | __ | 3/8" | 1/4" | 3/16" | Black,Off-White |
| 95868A810CHN | 1/2" | 5/16"-18 | Fully Threaded | __ | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A812CHN | 3/4" | 5/16"-18 | Fully Threaded | __ | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A814CHN | 1" | 5/16"-18 | Fully Threaded | __ | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A815CHN | 1 1/4" | 5/16"-18 | Partially Threaded | 1/4" | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A816CHN | 1 1/2" | 5/16"-18 | Partially Threaded | 7/16" | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A817CHN | 2" | 5/16"-18 | Partially Threaded | 1 7/32" | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A818CHN | 2 1/2" | 5/16"-18 | Partially Threaded | 1 1/16" | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A819CHN | 3" | 5/16"-18 | Partially Threaded | 1 3/32" | 15/32" | 5/16" | 1/4" | Black,Off-White |
| 95868A821CHN | 1/2" | 3/8"-16 | Fully Threaded | __ | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A824CHN | 3/4" | 3/8"-16 | Fully Threaded | __ | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A826CHN | 1" | 3/8"-16 | Fully Threaded | __ | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A828CHN | 1 1/4" | 3/8"-16 | Partially Threaded | 1/4" | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A830CHN | 1 1/2" | 3/8"-16 | Partially Threaded | 7/16" | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A834CHN | 2" | 3/8"-16 | Partially Threaded | 1" | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A836CHN | 2 1/2" | 3/8"-16 | Partially Threaded | 1 3/32" | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A837CHN | 3" | 3/8"-16 | Partially Threaded | 1 3/32" | 9/16" | 3/8" | 5/16" | Black,Off-White |
| 95868A631CHN | 1/2" | 1/2"-13 | Fully Threaded | __ | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A633CHN | 3/4" | 1/2"-13 | Fully Threaded | __ | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A636CHN | 1" | 1/2"-13 | Fully Threaded | __ | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A650CHN | 1 1/4" | 1/2"-13 | Fully Threaded | __ | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A654CHN | 1 1/2" | 1/2"-13 | Partially Threaded | 1/4" | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A657CHN | 2" | 1/2"-13 | Partially Threaded | 3/4" | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A663CHN | 2 1/2" | 1/2"-13 | Partially Threaded | 1 9/16" | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A664CHN | 3" | 1/2"-13 | Partially Threaded | 1 5/16" | 3/4" | 1/2" | 3/8" | Black,Off-White |
| 95868A963CHN | 1/2" | 5/8"-11 | Fully Threaded | __ | 15/16" | 5/8" | 1/2" | Black,Off-White |
| 95868A964CHN | 3/4" | 5/8"-11 | Fully Threaded | __ | 15/16" | 5/8" | 1/2" | Black,Off-White |
| 95868A965CHN | 1" | 5/8"-11 | Fully Threaded | __ | 15/16" | 5/8" | 1/2" | Black,Off-White |
| 95868A966CHN | 1 1/2" | 5/8"-11 | Fully Threaded | __ | 15/16" | 5/8" | 1/2" | Black,Off-White |
| 95868A967CHN | 2" | 5/8"-11 | Partially Threaded | 7/16" | 15/16" | 5/8" | 1/2" | Black,Off-White |
| 93640A141CHN | 5mm | M3 × 0.5mm | Fully Threaded | __ | 4.6mm | 2.8mm | 3/32" | Black,Off-White |
| 93640A142CHN | 6mm | M3 × 0.5mm | Fully Threaded | __ | 4.6mm | 2.8mm | 3/32" | Black,Off-White |
| 93640A143CHN | 8mm | M4 × 0.7mm | Fully Threaded | __ | 6.7mm | 4.1mm | 9/64" | Black,Off-White |
| 93640A144CHN | 10mm | M4 × 0.7mm | Fully Threaded | __ | 6.7mm | 4.1mm | 9/64" | Black,Off-White |
| 93640A145CHN | 12mm | M4 × 0.7mm | Fully Threaded | __ | 6.7mm | 4.1mm | 9/64" | Black,Off-White |
| 93640A146CHN | 14mm | M4 × 0.7mm | Fully Threaded | __ | 6.7mm | 4.1mm | 9/64" | Black,Off-White |
| 93640A147CHN | 16mm | M4 × 0.7mm | Fully Threaded | __ | 6.7mm | 4.1mm | 9/64" | Black,Off-White |
| 93640A148CHN | 10mm | M5 × 0.8mm | Fully Threaded | __ | 7.9mm | 4.8mm | 5/32" | Black,Off-White |
| 93640A149CHN | 12mm | M5 × 0.8mm | Fully Threaded | __ | 7.9mm | 4.8mm | 5/32" | Black,Off-White |
| 93640A151CHN | 20mm | M5 × 0.8mm | Fully Threaded | __ | 7.9mm | 4.8mm | 5/32" | Black,Off-White |
| 93640A152CHN | 25mm | M5 × 0.8mm | Fully Threaded | __ | 7.9mm | 4.8mm | 5/32" | Black,Off-White |
| 93640A136CHN | 12mm | M6 × 1mm | Fully Threaded | __ | 9.3mm | 6.2mm | 3/16" | Off-White |
| 93640A137CHN | 20mm | M6 × 1mm | Fully Threaded | __ | 9.3mm | 6.2mm | 3/16" | Off-White |
| 93640A138CHN | 25mm | M6 × 1mm | Fully Threaded | __ | 9.3mm | 6.2mm | 3/16" | Off-White |
| 93640A139CHN | 30mm | M6 × 1mm | Fully Threaded | __ | 9.3mm | 6.2mm | 3/16" | Off-White |
| 93640A101CHN | 16mm | M8 × 1.25mm | Fully Threaded | __ | 13mm | 8mm | 6 mm | Off-White |
| 93640A106CHN | 20mm | M8 × 1.25mm | Fully Threaded | __ | 13mm | 8mm | 6 mm | Off-White |
| 93640A111CHN | 25mm | M8 × 1.25mm | Fully Threaded | __ | 13mm | 8mm | 6 mm | Off-White |
| 93640A117CHN | 30mm | M8 × 1.25mm | Fully Threaded | __ | 13mm | 8mm | 6 mm | Off-White |
| 93640A123CHN | 35mm | M8 × 1.25mm | Fully Threaded | __ | 13mm | 8mm | 6 mm | Off-White |
| 93640A221CHN | 20mm | M10 × 1.5mm | Fully Threaded | __ | 16mm | 10mm | 8 mm | Off-White |
| 93640A225CHN | 25mm | M10 × 1.5mm | Fully Threaded | __ | 16mm | 10mm | 8 mm | Off-White |
| 93640A232CHN | 30mm | M10 × 1.5mm | Fully Threaded | __ | 16mm | 10mm | 8 mm | Off-White |
| 93640A238CHN | 35mm | M10 × 1.5mm | Fully Threaded | __ | 16mm | 10mm | 8 mm | Off-White |
| 93640A244CHN | 40mm | M10 × 1.5mm | Fully Threaded | __ | 16mm | 10mm | 8 mm | Off-White |
| 93640A334CHN | 20mm | M12 × 1.75mm | Fully Threaded | __ | 18mm | 12mm | 10 mm | Off-White |
| 93640A339CHN | 25mm | M12 × 1.75mm | Fully Threaded | __ | 18mm | 12mm | 10 mm | Off-White |
| 93640A344CHN | 30mm | M12 × 1.75mm | Fully Threaded | __ | 18mm | 12mm | 10 mm | Off-White |
| 93640A348CHN | 40mm | M12 × 1.75mm | Fully Threaded | __ | 18mm | 12mm | 10 mm | Off-White |
| Glass-Filled Nylon Plastic | ||||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Drive Size | Color |

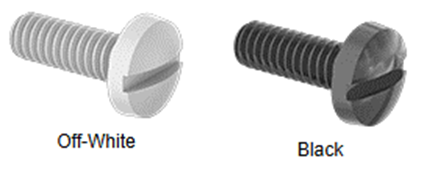

| 91221A110CHN | 1/8" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 91221A171CHN | 3/16" | 2-56 | 9/64" | 0.086" | 5/64" | Black |
| 91221A111CHN | 3/16" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 91221A172CHN | 1/4" | 2-56 | 9/64" | 0.086" | 5/64" | Black |
| 91221A112CHN | 1/4" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 91221A113CHN | 5/16" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 91221A173CHN | 3/8" | 2-56 | 9/64" | 0.086" | 5/64" | Black |
| 91221A114CHN | 3/8" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 91221A174CHN | 1/2" | 2-56 | 9/64" | 0.086" | 5/64" | Black |
| 91221A115CHN | 1/2" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 91221A211CHN | 1/8" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A212CHN | 3/16" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A175CHN | 1/4" | 4-40 | 0.183" | 0.112" | 3/32" | Black |
| 91221A213CHN | 1/4" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A214CHN | 5/16" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A176CHN | 3/8" | 4-40 | 0.183" | 0.112" | 3/32" | Black |
| 91221A216CHN | 3/8" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A163CHN | 7/16" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A177CHN | 1/2" | 4-40 | 0.183" | 0.112" | 3/32" | Black |
| 91221A217CHN | 1/2" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A178CHN | 5/8" | 4-40 | 0.183" | 0.112" | 3/32" | Black |
| 91221A218CHN | 5/8" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A179CHN | 3/4" | 4-40 | 0.183" | 0.112" | 3/32" | Black |
| 91221A219CHN | 3/4" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A164CHN | 7/8" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A181CHN | 1" | 4-40 | 0.183" | 0.112" | 3/32" | Black |
| 91221A221CHN | 1" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A165CHN | 1 1/2" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 91221A135CHN | 1/4" | 6-32 | 0.226" | 0.138" | 7/64" | Black |
| 91221A210CHN | 1/4" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 91221A137CHN | 3/8" | 6-32 | 0.226" | 0.138" | 7/64" | Black |
| 91221A215CHN | 3/8" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 91221A139CHN | 1/2" | 6-32 | 0.226" | 0.138" | 7/64" | Black |
| 91221A220CHN | 1/2" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 91221A142CHN | 3/4" | 6-32 | 0.226" | 0.138" | 7/64" | Black |
| 91221A225CHN | 3/4" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 91221A144CHN | 1" | 6-32 | 0.226" | 0.138" | 7/64" | Black |
| 91221A230CHN | 1" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 91221A166CHN | 1 1/4" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 91221A167CHN | 1 1/2" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 91221A121CHN | 1/4" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 91221A146CHN | 3/8" | 8-32 | 0.27" | 0.164" | 9/64" | Black |
| 91221A440CHN | 3/8" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 91221A148CHN | 1/2" | 8-32 | 0.27" | 0.164" | 9/64" | Black |
| 91221A445CHN | 1/2" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 91221A151CHN | 5/8" | 8-32 | 0.27" | 0.164" | 9/64" | Black |
| 91221A450CHN | 5/8" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 91221A153CHN | 3/4" | 8-32 | 0.27" | 0.164" | 9/64" | Black |
| 91221A455CHN | 3/4" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 91221A155CHN | 1" | 8-32 | 0.27" | 0.164" | 9/64" | Black |
| 91221A460CHN | 1" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 91221A711CHN | 1/4" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A712CHN | 3/8" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A713CHN | 1/2" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A714CHN | 5/8" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A715CHN | 3/4" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A716CHN | 1" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A157CHN | 1/2" | 10-32 | 5/16" | 0.19" | 5/32" | Black |
| 91221A680CHN | 1/2" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A159CHN | 3/4" | 10-32 | 5/16" | 0.19" | 5/32" | Black |
| 91221A685CHN | 3/4" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A162CHN | 1" | 10-32 | 5/16" | 0.19" | 5/32" | Black |
| 91221A690CHN | 1" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A182CHN | 1 1/4" | 10-32 | 5/16" | 0.19" | 5/32" | Black |
| 91221A695CHN | 1 1/4" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A705CHN | 1 1/2" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A710CHN | 2" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 91221A168CHN | 3/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A169CHN | 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A183CHN | 5/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Black |
| 91221A960CHN | 5/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A184CHN | 3/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Black |
| 91221A965CHN | 3/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A970CHN | 7/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A185CHN | 1" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Black |
| 91221A975CHN | 1" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A186CHN | 1 1/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Black |
| 91221A980CHN | 1 1/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A187CHN | 1 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Black |
| 91221A985CHN | 1 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A990CHN | 2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A123CHN | 3" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 91221A124CHN | 1/2" | 5/16"-18 | 15/32" | 5/16" | 1/4" | Off-White |
| 91221A125CHN | 3/4" | 5/16"-18 | 15/32" | 5/16" | 1/4" | Off-White |
| 91221A126CHN | 1" | 5/16"-18 | 15/32" | 5/16" | 1/4" | Off-White |
| 91221A127CHN | 1/2" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Off-White |
| 91221A128CHN | 3/4" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Off-White |
| 91221A129CHN | 1" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Off-White |
| 91221A131CHN | 2" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Off-White |
| 97695A121CHN | 5mm | M3 × 0.5mm | 4.6mm | 2.8mm | 3/32" | Black |
| 97695A101CHN | 5mm | M3 × 0.5mm | 4.6mm | 2.8mm | 3/32" | Off-White |
| 97695A122CHN | 6mm | M3 × 0.5mm | 4.6mm | 2.8mm | 3/32" | Black |
| 97695A102CHN | 6mm | M3 × 0.5mm | 4.6mm | 2.8mm | 3/32" | Off-White |
| 97695A123CHN | 8mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Black |
| 97695A103CHN | 8mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Off-White |
| 97695A124CHN | 10mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Black |
| 97695A104CHN | 10mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Off-White |
| 97695A125CHN | 12mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Black |
| 97695A105CHN | 12mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Off-White |
| 97695A126CHN | 14mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Black |
| 97695A106CHN | 14mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Off-White |
| 97695A127CHN | 16mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Black |
| 97695A107CHN | 16mm | M4 × 0.7mm | 6.7mm | 4.1mm | 9/64" | Off-White |
| 97695A108CHN | 10mm | M5 × 0.8mm | 7.9mm | 4.8mm | 5/32" | Off-White |
| 97695A128CHN | 12mm | M5 × 0.8mm | 7.9mm | 4.8mm | 5/32" | Black |
| 97695A109CHN | 12mm | M5 × 0.8mm | 7.9mm | 4.8mm | 5/32" | Off-White |
| 97695A129CHN | 20mm | M5 × 0.8mm | 7.9mm | 4.8mm | 5/32" | Black |
| 97695A111CHN | 20mm | M5 × 0.8mm | 7.9mm | 4.8mm | 5/32" | Off-White |
| 97695A131CHN | 25mm | M5 × 0.8mm | 7.9mm | 4.8mm | 5/32" | Black |
| 97695A112CHN | 25mm | M5 × 0.8mm | 7.9mm | 4.8mm | 5/32" | Off-White |
| 97695A132CHN | 12mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Black |
| 97695A113CHN | 12mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Off-White |
| 97695A133CHN | 20mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Black |
| 97695A114CHN | 20mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Off-White |
| 97695A134CHN | 25mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Black |
| 97695A115CHN | 25mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Off-White |
| 97695A135CHN | 30mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Black |
| 97695A116CHN | 30mm | M6 × 1mm | 9.3mm | 6.2mm | 3/16" | Off-White |
| 97695A117CHN | 16mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Off-White |
| 97695A118CHN | 20mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Off-White |
| Polypropylene Plastic | ||||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Drive Size | Color |
| 99477A101CHN | 3/16" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 99477A102CHN | 1/4" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 99477A103CHN | 1/2" | 2-56 | 9/64" | 0.086" | 5/64" | Off-White |
| 99477A104CHN | 3/16" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A105CHN | 1/4" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A106CHN | 5/16" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A107CHN | 3/8" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A108CHN | 1/2" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A109CHN | 3/4" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A111CHN | 1" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A112CHN | 1 1/2" | 4-40 | 0.183" | 0.112" | 3/32" | Off-White |
| 99477A110CHN | 1/4" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 99477A120CHN | 3/8" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 99477A130CHN | 1/2" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 99477A140CHN | 3/4" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 99477A150CHN | 1" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 99477A113CHN | 1 1/2" | 6-32 | 0.226" | 0.138" | 7/64" | Off-White |
| 99477A114CHN | 1/4" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 99477A260CHN | 3/8" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 99477A270CHN | 1/2" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 99477A280CHN | 5/8" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 99477A290CHN | 3/4" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 99477A310CHN | 1" | 8-32 | 0.27" | 0.164" | 9/64" | Off-White |
| 99477A115CHN | 1/2" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A116CHN | 1" | 10-24 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A117CHN | 3/8" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A440CHN | 1/2" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A118CHN | 5/8" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A450CHN | 3/4" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A460CHN | 1" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A470CHN | 1 1/4" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A480CHN | 1 1/2" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A490CHN | 2" | 10-32 | 5/16" | 0.19" | 5/32" | Off-White |
| 99477A119CHN | 1/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A121CHN | 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A610CHN | 5/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A620CHN | 3/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A630CHN | 7/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A640CHN | 1" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A650CHN | 1 1/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A660CHN | 1 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A122CHN | 1 3/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A670CHN | 2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A123CHN | 2 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A124CHN | 3" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Off-White |
| 99477A125CHN | 1" | 5/16"-18 | 15/32" | 5/16" | 1/4" | Off-White |
| 99477A126CHN | 1/2" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Off-White |
| 99477A127CHN | 3/4" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Off-White |
| 99477A128CHN | 1" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Off-White |
| 99477A129CHN | 5mm | M3 × 0.5mm | 5.5mm | 3mm | 2.5 mm | Off-White |
| 99477A131CHN | 6mm | M3 × 0.5mm | 5.5mm | 3mm | 2.5 mm | Off-White |
| 99477A132CHN | 8mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Off-White |
| 99477A133CHN | 10mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Off-White |
| 99477A134CHN | 12mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Off-White |
| 99477A135CHN | 14mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Off-White |
| 99477A136CHN | 16mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Off-White |
| 99477A137CHN | 10mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Off-White |
| 99477A138CHN | 12mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Off-White |
| 99477A139CHN | 20mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Off-White |
| 99477A141CHN | 25mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Off-White |
| 99477A142CHN | 12mm | M6 × 1mm | 10mm | 6mm | 5 mm | Off-White |
| 99477A143CHN | 20mm | M6 × 1mm | 10mm | 6mm | 5 mm | Off-White |
| 99477A144CHN | 25mm | M6 × 1mm | 10mm | 6mm | 5 mm | Off-White |
| 99477A145CHN | 30mm | M6 × 1mm | 10mm | 6mm | 5 mm | Off-White |
| 99477A146CHN | 16mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Off-White |
| 99477A147CHN | 20mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Off-White |
| 99477A148CHN | 25mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Off-White |
| 99477A149CHN | 35mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Off-White |
| PEEK Plastic | ||||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Drive Size | Color |
| 98885A201CHN | 3/16" | 2-56 | 9/64" | 0.086" | 5/64" | Beige |
| 98885A101CHN | 1/4" | 2-56 | 9/64" | 0.086" | 5/64" | Beige |
| 98885A202CHN | 1/2" | 2-56 | 9/64" | 0.086" | 5/64" | Beige |
| 98885A203CHN | 3/16" | 4-40 | 0.183" | 0.112" | 3/32" | Beige |
| 98885A102CHN | 1/4" | 4-40 | 0.183" | 0.112" | 3/32" | Beige |
| 98885A103CHN | 5/16" | 4-40 | 0.183" | 0.112" | 3/32" | Beige |
| 98885A104CHN | 3/8" | 4-40 | 0.183" | 0.112" | 3/32" | Beige |
| 98885A105CHN | 1/2" | 4-40 | 0.183" | 0.112" | 3/32" | Beige |
| 98885A106CHN | 1/4" | 6-32 | 0.226" | 0.138" | 7/64" | Beige |
| 98885A107CHN | 3/8" | 6-32 | 0.226" | 0.138" | 7/64" | Beige |
| 98885A108CHN | 1/2" | 6-32 | 0.226" | 0.138" | 7/64" | Beige |
| 98885A109CHN | 5/8" | 6-32 | 0.226" | 0.138" | 7/64" | Beige |
| 98885A111CHN | 3/4" | 6-32 | 0.226" | 0.138" | 7/64" | Beige |
| 98885A204CHN | 1/4" | 8-32 | 0.27" | 0.164" | 9/64" | Beige |
| 98885A112CHN | 3/8" | 8-32 | 0.27" | 0.164" | 9/64" | Beige |
| 98885A113CHN | 1/2" | 8-32 | 0.27" | 0.164" | 9/64" | Beige |
| 98885A114CHN | 5/8" | 8-32 | 0.27" | 0.164" | 9/64" | Beige |
| 98885A115CHN | 3/4" | 8-32 | 0.27" | 0.164" | 9/64" | Beige |
| 98885A116CHN | 1" | 8-32 | 0.27" | 0.164" | 9/64" | Beige |
| 98885A205CHN | 1 1/2" | 8-32 | 0.27" | 0.164" | 9/64" | Beige |
| 98885A206CHN | 1/2" | 10-24 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A207CHN | 3/4" | 10-24 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A117CHN | 3/8" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A118CHN | 1/2" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A119CHN | 5/8" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A121CHN | 3/4" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A122CHN | 1" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A208CHN | 1 1/4" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A209CHN | 1 1/2" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A211CHN | 2" | 10-32 | 5/16" | 0.19" | 5/32" | Beige |
| 98885A123CHN | 3/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A124CHN | 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A125CHN | 5/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A126CHN | 3/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A127CHN | 7/8" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A128CHN | 1" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A129CHN | 1 1/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A131CHN | 1 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A212CHN | 1 3/4" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A132CHN | 2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A213CHN | 2 1/2" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A214CHN | 3" | 1/4"-20 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A215CHN | 3/8" | 1/4"-28 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A216CHN | 3/4" | 1/4"-28 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A217CHN | 1" | 1/4"-28 | 3/8" | 1/4" | 3/16" | Beige |
| 98885A218CHN | 1/2" | 5/16"-18 | 15/32" | 5/16" | 1/4" | Beige |
| 98885A133CHN | 3/4" | 5/16"-18 | 15/32" | 5/16" | 1/4" | Beige |
| 98885A134CHN | 1" | 5/16"-18 | 15/32" | 5/16" | 1/4" | Beige |
| 98885A219CHN | 1/2" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Beige |
| 98885A221CHN | 3/4" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Beige |
| 98885A135CHN | 1" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Beige |
| 98885A222CHN | 2" | 3/8"-16 | 9/16" | 3/8" | 5/16" | Beige |
| 98885A223CHN | 5mm | M3 × 0.5mm | 5.5mm | 3mm | 2.5 mm | Beige |
| 98885A224CHN | 6mm | M3 × 0.5mm | 5.5mm | 3mm | 2.5 mm | Beige |
| 98885A225CHN | 8mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Beige |
| 98885A226CHN | 10mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Beige |
| 98885A227CHN | 12mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Beige |
| 98885A228CHN | 14mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Beige |
| 98885A229CHN | 16mm | M4 × 0.7mm | 7mm | 4mm | 3 mm | Beige |
| 98885A231CHN | 10mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Beige |
| 98885A232CHN | 12mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Beige |
| 98885A233CHN | 20mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Beige |
| 98885A234CHN | 25mm | M5 × 0.8mm | 8.5mm | 5mm | 4 mm | Beige |
| 98885A235CHN | 12mm | M6 × 1mm | 10mm | 6mm | 5 mm | Beige |
| 98885A236CHN | 20mm | M6 × 1mm | 10mm | 6mm | 5 mm | Beige |
| 98885A237CHN | 25mm | M6 × 1mm | 10mm | 6mm | 5 mm | Beige |
| 98885A238CHN | 16mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Beige |
| 98885A239CHN | 20mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Beige |
| 98885A241CHN | 25mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Beige |
| 98885A242CHN | 30mm | M8 × 1.25mm | 13mm | 8mm | 6 mm | Beige |
Nylon Pan Head Phillips Screws
| Nylon Plastic | ||||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Drive Size | Color |
| 94735A701CHN | 1/8" | 0-80 | 0.116" | 0.044" | No. 0 | Off-White,Black |
| 94735A702CHN | 3/16" | 0-80 | 0.116" | 0.044" | No. 0 | Off-White,Black |
| 94735A703CHN | 1/4" | 0-80 | 0.116" | 0.044" | No. 0 | Off-White,Black |
| 94735A704CHN | 3/32" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A705CHN | 1/8" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A706CHN | 3/16" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A707CHN | 1/4" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A708CHN | 5/16" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A709CHN | 3/8" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A711CHN | 7/16" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A712CHN | 1/2" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A713CHN | 3/4" | 2-56 | 0.160" | 0.058" | No. 1 | Off-White,Black |
| 94735A714CHN | 1" | 2-56 | __ | __ | No. 1 | Off-White,Black |
| 94735A715CHN | 1/8" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A716CHN | 3/16" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A717CHN | 1/4" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A718CHN | 9/32" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A719CHN | 5/16" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A721CHN | 3/8" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A722CHN | 1/2" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A723CHN | 5/8" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A724CHN | 3/4" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A725CHN | 1" | 4-40 | 0.215" | 0.075" | No. 1 | Off-White,Black |
| 94735A200CHN | 1/8" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A726CHN | 3/16" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A727CHN | 1/4" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A728CHN | 5/16" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A729CHN | 3/8" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A731CHN | 1/2" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A732CHN | 5/8" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A733CHN | 3/4" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A734CHN | 1" | 6-32 | 0.263" | 0.092" | No. 2 | Off-White,Black |
| 94735A530CHN | 1/8" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A735CHN | 1/4" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A736CHN | 3/8" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A737CHN | 1/2" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A738CHN | 5/8" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A739CHN | 3/4" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A741CHN | 1" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A742CHN | 1 1/4" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A743CHN | 1 1/2" | 8-32 | 0.320" | 0.110" | No. 2 | Off-White,Black |
| 94735A744CHN | 1/4" | 10-24 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A745CHN | 3/8" | 10-24 | 0.373" | 0.150" | No. 2 | Off-White,Black |
| 94735A746CHN | 1/2" | 10-24 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A747CHN | 3/4" | 10-24 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A748CHN | 1" | 10-24 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A749CHN | 1 1/2" | 10-24 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A751CHN | 1/8" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A752CHN | 1/4" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A753CHN | 3/8" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A754CHN | 1/2" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A755CHN | 5/8" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A756CHN | 3/4" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A757CHN | 1" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A758CHN | 1 1/2" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A759CHN | 2" | 10-32 | 0.365" | 0.125" | No. 2 | Off-White,Black |
| 94735A762CHN | 1/4" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Off-White,Black |
| 94735A761CHN | 3/8" | 1/4"-20 | 0.492" | 0.198" | No. 2 | Off-White,Black |
| 94735A763CHN | 1/2" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Off-White,Black |
| 94735A764CHN | 5/8" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Off-White,Black |
| 94735A765CHN | 3/4" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Off-White,Black |
| 94735A766CHN | 1" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Off-White,Black |
| 94735A767CHN | 1 1/2" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Off-White,Black |
| 94735A768CHN | 2" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Off-White,Black |
| 94735A769CHN | 1/2" | 1/4"-28 | 0.492" | 0.198" | No. 2 | Off-White,Black |
| 94735A771CHN | 3/4" | 1/4"-28 | 0.492" | 0.198" | No. 2 | Off-White,Black |
| 94735A772CHN | 1" | 1/4"-28 | 0.492" | 0.198" | No. 2 | Off-White,Black |
| 94735A578CHN | 3/8" | 5/16"-18 | 0.625" | 0.218" | No. 4 | Off-White,Black |
| 94735A791CHN | 1/2" | 5/16"-18 | 0.625" | 0.218" | No. 4 | Off-White,Black |
| 94735A792CHN | 3/4" | 5/16"-18 | 0.625" | 0.218" | No. 4 | Off-White,Black |
| 94735A793CHN | 1" | 5/16"-18 | 0.625" | 0.218" | No. 4 | Off-White,Black |
| 94735A794CHN | 1 1/2" | 5/16"-18 | 0.625" | 0.218" | No. 4 | Off-White,Black |
| 94735A795CHN | 2" | 5/16"-18 | 0.625" | 0.218" | No. 4 | Off-White,Black |
| 94735A822CHN | 3/8" | 3/8"-16 | 0.750" | 0.261" | No. 5 | Off-White,Black |
| 94735A796CHN | 1/2" | 3/8"-16 | 0.750" | 0.261" | No. 5 | Off-White,Black |
| 94735A797CHN | 3/4" | 3/8"-16 | 0.750" | 0.261" | No. 5 | Off-White,Black |
| 94735A798CHN | 1" | 3/8"-16 | 0.750" | 0.261" | No. 5 | Off-White,Black |
| 94735A799CHN | 1 1/2" | 3/8"-16 | 0.750" | 0.261" | No. 5 | Off-White,Black |
| 94735A801CHN | 2" | 3/8"-16 | 0.750" | 0.261" | No. 5 | Off-White,Black |
Metric Nylon Pan Head Phillips Screws
| Nylon Plastic | ||||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Drive Size | Color |
| 92492A701CHN | 4 | M2 × 0.4 mm | 4 | 1.6 | No. 0 | Off-White,Black |
| 92492A702CHN | 5 | M2 × 0.4 mm | 4 | 1.6 | No. 0 | Off-White,Black |
| 92492A703CHN | 6 | M2 × 0.4 mm | 4 | 1.6 | No. 0 | Off-White,Black |
| 92492A704CHN | 8 | M2 × 0.4 mm | 4 | 1.6 | No. 0 | Off-White,Black |
| 92492A705CHN | 10 | M2 × 0.4 mm | 4 | 1.6 | No. 0 | Off-White,Black |
| 92492A706CHN | 12 | M2 × 0.4 mm | 4 | 1.6 | No. 0 | Off-White,Black |
| 92492A707CHN | 16 | M2 × 0.4 mm | 4 | 1.6 | No. 0 | Off-White,Black |
| 92492A708CHN | 4 | M2.5 × 0.45 mm | 5 | 2.1 | No. 0 | Off-White,Black |
| 92492A709CHN | 5 | M2.5 × 0.45 mm | 5 | 2.1 | No. 0 | Off-White,Black |
| 92492A711CHN | 6 | M2.5 × 0.45 mm | 5 | 2.1 | No. 0 | Off-White,Black |
| 92492A712CHN | 8 | M2.5 × 0.45 mm | 5 | 2.1 | No. 0 | Off-White,Black |
| 92492A713CHN | 10 | M2.5 × 0.45 mm | 5 | 2.1 | No. 0 | Off-White,Black |
| 92492A714CHN | 4 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A715CHN | 5 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A716CHN | 6 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A717CHN | 8 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A718CHN | 10 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A719CHN | 12 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A721CHN | 16 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A722CHN | 20 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A723CHN | 25 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A724CHN | 30 | M3 × 0.5 mm | 5.6 | 2.4 | No. 1 | Off-White,Black |
| 92492A725CHN | 6 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A726CHN | 8 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A727CHN | 10 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A728CHN | 12 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A729CHN | 16 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A731CHN | 20 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A732CHN | 25 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A733CHN | 30 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A734CHN | 35 | M4 × 0.7 mm | 8 | 3.1 | No. 2 | Off-White,Black |
| 92492A735CHN | 8 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A736CHN | 10 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A737CHN | 12 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A738CHN | 16 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A739CHN | 20 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A741CHN | 25 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A742CHN | 30 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A743CHN | 40 | M5 × 0.8 mm | 9.5 | 3.7 | No. 2 | Off-White,Black |
| 92492A744CHN | 8 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A745CHN | 10 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A746CHN | 12 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A747CHN | 16 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A748CHN | 20 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A749CHN | 25 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A751CHN | 30 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A752CHN | 35 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A753CHN | 40 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A754CHN | 45 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A755CHN | 50 | M6 × 1 mm | 12 | 4.6 | No. 3 | Off-White,Black |
| 92492A756CHN | 16 | M8 × 1.25 mm | 16 | 6 | No. 4 | Off-White,Black |
| 92492A757CHN | 20 | M8 × 1.25 mm | 16 | 6 | No. 4 | Off-White,Black |
| 92492A758CHN | 25 | M8 × 1.25 mm | 16 | 6 | No. 4 | Off-White,Black |
| 92492A759CHN | 30 | M8 × 1.25 mm | 16 | 6 | No. 4 | Off-White,Black |
| 92492A761CHN | 50 | M8 × 1.25 mm | 16 | 6 | No. 4 | Off-White,Black |
| 92492A762CHN | 20 | M10 × 1.5 mm | 20 | 7.5 | No. 4 | Off-White,Black |
| 92492A763CHN | 25 | M10 × 1.5 mm | 20 | 7.5 | No. 4 | Off-White,Black |
| 92492A764CHN | 30 | M10 × 1.5 mm | 20 | 7.5 | No. 4 | Off-White,Black |
Metric High-Strength High-Temperature PEEK Pan Head Phillips Screws
| PEEK Plastic | ||||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Drive Size | Color |
| 96367A110CHN | 4 | M2 × 0.4 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A120CHN | 5 | M2 × 0.4 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A130CHN | 6 | M2 × 0.4 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A140CHN | 8 | M2 × 0.4 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A150CHN | 10 | M2 × 0.4 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A160CHN | 4 | M2.5 × 0.45 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A170CHN | 5 | M2.5 × 0.45 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A180CHN | 6 | M2.5 × 0.45 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A190CHN | 8 | M2.5 × 0.45 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A101CHN | 10 | M2.5 × 0.45 mm | 5 | 1.4 | No. 0 | Beige |
| 96367A921CHN | 5 | M3 × 0.5 mm | 5.4 | 1.5 | No. 1 | Beige |
| 96367A922CHN | 6 | M3 × 0.5 mm | 5.4 | 1.5 | No. 1 | Beige |
| 96367A923CHN | 8 | M3 × 0.5 mm | 5.4 | 1.5 | No. 1 | Beige |
| 96367A924CHN | 10 | M3 × 0.5 mm | 5.4 | 1.5 | No. 1 | Beige |
| 96367A925CHN | 12 | M3 × 0.5 mm | 5.4 | 1.5 | No. 1 | Beige |
| 96367A102CHN | 16 | M3 × 0.5 mm | 5.4 | 1.5 | No. 0 | Beige |
| 96367A103CHN | 20 | M3 × 0.5 mm | 5.4 | 1.5 | No. 0 | Beige |
| 96367A935CHN | 6 | M4 × 0.7 mm | 8 | 2.5 | No. 2 | Beige |
| 96367A936CHN | 8 | M4 × 0.7 mm | 8 | 2.5 | No. 2 | Beige |
| 96367A937CHN | 10 | M4 × 0.7 mm | 8 | 2.5 | No. 2 | Beige |
| 96367A938CHN | 12 | M4 × 0.7 mm | 8 | 2.5 | No. 2 | Beige |
| 96367A939CHN | 16 | M4 × 0.7 mm | 8 | 2.5 | No. 2 | Beige |
| 96367A105CHN | 20 | M4 × 0.7 mm | 8 | 2.5 | No. 1 | Beige |
| 96367A106CHN | 25 | M4 × 0.7 mm | 8 | 2.5 | No. 1 | Beige |
| 96367A949CHN | 8 | M5 × 0.8 mm | 9.4 | 2.7 | No. 2 | Beige |
| 96367A950CHN | 10 | M5 × 0.8 mm | 9.4 | 2.7 | No. 2 | Beige |
| 96367A951CHN | 12 | M5 × 0.8 mm | 9.4 | 2.7 | No. 2 | Beige |
| 96367A952CHN | 16 | M5 × 0.8 mm | 9.4 | 2.7 | No. 2 | Beige |
| 96367A953CHN | 20 | M5 × 0.8 mm | 9.4 | 2.7 | No. 2 | Beige |
| 96367A963CHN | 10 | M6 × 1 mm | 12 | 3.3 | No. 3 | Beige |
| 96367A964CHN | 12 | M6 × 1 mm | 12 | 3.3 | No. 3 | Beige |
| 96367A965CHN | 16 | M6 × 1 mm | 12 | 3.3 | No. 3 | Beige |
| 96367A966CHN | 20 | M6 × 1 mm | 12 | 3.3 | No. 3 | Beige |
| 96367A967CHN | 25 | M6 × 1 mm | 12 | 3.3 | No. 3 | Beige |
High-Strength High-Temperature PEEK Pan Head Phillips Screws
| PEEK Plastic | ||||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Drive Size | Color |
| 96367A971CHN | 3/16" | 2-56 | 0.195" | 0.070" | No. 1 | Beige |
| 96367A972CHN | 1/4" | 2-56 | 0.195" | 0.070" | No. 1 | Beige |
| 96367A973CHN | 3/8" | 2-56 | 0.195" | 0.070" | No. 1 | Beige |
| 96367A974CHN | 1/2" | 2-56 | 0.195" | 0.070" | No. 1 | Beige |
| 96367A975CHN | 3/16" | 4-40 | 0.210" | 0.080" | No. 1 | Beige |
| 96367A104CHN | 1/4" | 4-40 | 0.210" | 0.080" | No. 1 | Beige |
| 96367A976CHN | 5/16" | 4-40 | 0.210" | 0.080" | No. 1 | Beige |
| 96367A128CHN | 3/8" | 4-40 | 0.210" | 0.080" | No. 1 | Beige |
| 96367A230CHN | 1/2" | 4-40 | 0.210" | 0.080" | No. 1 | Beige |
| 96367A413CHN | 3/4" | 4-40 | 0.210" | 0.080" | No. 1 | Beige |
| 96367A977CHN | 1" | 4-40 | 0.210" | 0.080" | No. 1 | Beige |
| 96367A449CHN | 1/4" | 6-32 | 0.270" | 0.097" | No. 2 | Beige |
| 96367A978CHN | 5/16" | 6-32 | 0.268" | 0.097" | No. 2 | Beige |
| 96367A451CHN | 3/8" | 6-32 | 0.268" | 0.097" | No. 2 | Beige |
| 96367A464CHN | 1/2" | 6-32 | 0.268" | 0.097" | No. 2 | Beige |
| 96367A477CHN | 3/4" | 6-32 | 0.268" | 0.097" | No. 2 | Beige |
| 96367A490CHN | 1" | 6-32 | 0.270" | 0.097" | No. 2 | Beige |
| 96367A506CHN | 1/4" | 8-32 | 0.320" | 0.115" | No. 2 | Beige |
| 96367A554CHN | 3/8" | 8-32 | 0.314" | 0.115" | No. 2 | Beige |
| 96367A567CHN | 1/2" | 8-32 | 0.314" | 0.115" | No. 2 | Beige |
| 96367A580CHN | 3/4" | 8-32 | 0.314" | 0.115" | No. 2 | Beige |
| 96367A514CHN | 1" | 8-32 | 0.320" | 0.115" | No. 2 | Beige |
| 96367A603CHN | 1/4" | 10-32 | 0.370" | 0.133" | No. 2 | Beige |
| 96367A657CHN | 3/8" | 10-32 | 0.370" | 0.133" | No. 2 | Beige |
| 96367A671CHN | 1/2" | 10-32 | 0.370" | 0.133" | No. 2 | Beige |
| 96367A685CHN | 3/4" | 10-32 | 0.370" | 0.133" | No. 2 | Beige |
| 96367A683CHN | 1" | 10-32 | 0.370" | 0.133" | No. 2 | Beige |
| 96367A744CHN | 3/8" | 1/4"-20 | 0.490" | 0.175" | No. 3 | Beige |
| 96367A858CHN | 1/2" | 1/4"-20 | 0.490" | 0.175" | No. 3 | Beige |
| 96367A903CHN | 3/4" | 1/4"-20 | 0.490" | 0.175" | No. 3 | Beige |
| 96367A912CHN | 1" | 1/4"-20 | 0.490" | 0.175" | No. 3 | Beige |
| Impact-Resistant Polycarbonate Pan Head Phillips Screws |
| Polycarbonate Plastic | ||||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Drive Size | Color |
| 93140A300CHN | 1/8" | 2-56 | 0.170" | 0.063" | No. 1 | Clear |
| 93140A305CHN | 3/16" | 2-56 | 0.170" | 0.063" | No. 1 | Clear |
| 93140A310CHN | 1/4" | 2-56 | 0.170" | 0.063" | No. 1 | Clear |
| 93140A315CHN | 3/8" | 2-56 | 0.170" | 0.063" | No. 1 | Clear |
| 93140A320CHN | 1/2" | 2-56 | 0.170" | 0.063" | No. 1 | Clear |
| 93140A403CHN | 3/16" | 4-40 | 0.219" | 0.080" | No. 1 | Clear |
| 93140A106CHN | 1/4" | 4-40 | 0.219" | 0.080" | No. 1 | Clear |
| 93140A108CHN | 3/8" | 4-40 | 0.219" | 0.080" | No. 1 | Clear |
| 93140A109CHN | 1/2" | 4-40 | 0.219" | 0.080" | No. 1 | Clear |
| 93140A277CHN | 3/4" | 4-40 | 0.215" | 0.075" | No. 1 | Clear |
| 93140A144CHN | 1/4" | 6-32 | 0.270" | 0.097" | No. 2 | Clear |
| 93140A146CHN | 3/8" | 6-32 | 0.270" | 0.097" | No. 2 | Clear |
| 93140A148CHN | 1/2" | 6-32 | 0.270" | 0.097" | No. 2 | Clear |
| 93140A381CHN | 3/4" | 6-32 | 0.263" | 0.092" | No. 1 | Clear |
| 93140A427CHN | 1" | 6-32 | 0.263" | 0.092" | No. 2 | Clear |
| 93140A166CHN | 1/4" | 8-32 | 0.322" | 0.115" | No. 2 | Clear |
| 93140A169CHN | 3/8" | 8-32 | 0.322" | 0.115" | No. 2 | Clear |
| 93140A588CHN | 1/2" | 8-32 | 0.320" | 0.110" | No. 2 | Clear |
| 93140A614CHN | 3/4" | 8-32 | 0.320" | 0.110" | No. 2 | Clear |
| 93140A782CHN | 1" | 8-32 | 0.320" | 0.110" | No. 2 | Clear |
| 93140A173CHN | 1/4" | 10-32 | 0.373" | 0.133" | No. 2 | Clear |
| 93140A175CHN | 3/8" | 10-32 | 0.373" | 0.133" | No. 2 | Clear |
| 93140A178CHN | 1/2" | 10-32 | 0.373" | 0.133" | No. 2 | Clear |
| 93140A181CHN | 5/8" | 10-32 | 0.373" | 0.133" | No. 2 | Clear |
| 93140A184CHN | 3/4" | 10-32 | 0.373" | 0.133" | No. 2 | Clear |
| 93140A187CHN | 1" | 10-32 | 0.373" | 0.133" | No. 2 | Clear |
| 93140A794CHN | 3/8" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Clear |
| 93140A832CHN | 1/2" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Clear |
| 93140A239CHN | 3/4" | 1/4"-20 | 0.505" | 0.180" | No. 3 | Clear |
| 93140A246CHN | 1" | 1/4"-20 | 0.505" | 0.180" | No. 3 | Clear |
| 93140A952CHN | 1 1/2" | 1/4"-20 | 0.485" | 0.165" | No. 3 | Clear |
| Metric Impact-Resistant Polycarbonate Pan Head Phillips Screws |
| Polycarbonate Plastic | ||||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Drive Size | Color |
| 93140A015CHN | 5 | M3 × 0.5 mm | 6 | 2.4 | No. 0 | Clear |
| 93140A154CHN | 6 | M3 × 0.5 mm | 6 | 2.4 | No. 0 | Clear |
| 93140A258CHN | 8 | M3 × 0.5 mm | 6 | 2.4 | No. 0 | Clear |
| 93140A342CHN | 10 | M3 × 0.5 mm | 6 | 2.4 | No. 0 | Clear |
| 93140A455CHN | 12 | M3 × 0.5 mm | 6 | 2.4 | No. 0 | Clear |
| 93140A474CHN | 6 | M4 × 0.7 mm | 8 | 3.1 | No. 1 | Clear |
| 93140A496CHN | 8 | M4 × 0.7 mm | 8 | 3.1 | No. 1 | Clear |
| 93140A513CHN | 10 | M4 × 0.7 mm | 8 | 3.1 | No. 1 | Clear |
| 93140A552CHN | 12 | M4 × 0.7 mm | 8 | 3.1 | No. 1 | Clear |
| 93140A586CHN | 16 | M4 × 0.7 mm | 8 | 3.1 | No. 1 | Clear |
| 93140A679CHN | 8 | M5 × 0.8 mm | 10 | 3.8 | No. 1 | Clear |
| 93140A699CHN | 10 | M5 × 0.8 mm | 10 | 3.8 | No. 1 | Clear |
| 93140A713CHN | 12 | M5 × 0.8 mm | 10 | 3.8 | No. 1 | Clear |
| 93140A763CHN | 16 | M5 × 0.8 mm | 10 | 3.8 | No. 1 | Clear |
| 93140A814CHN | 20 | M5 × 0.8 mm | 10 | 3.8 | No. 1 | Clear |
| 93140A816CHN | 10 | M6 × 1 mm | 12 | 4.6 | No. 2 | Clear |
| 93140A855CHN | 12 | M6 × 1 mm | 12 | 4.6 | No. 2 | Clear |
| 93140A903CHN | 16 | M6 × 1 mm | 12 | 4.6 | No. 2 | Clear |
| 93140A918CHN | 20 | M6 × 1 mm | 12 | 4.6 | No. 2 | Clear |
| 93140A947CHN | 25 | M6 × 1 mm | 12 | 4.6 | No. 2 | Clear |
| Nylon Pan Head Slotted Screws |
| Nylon Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 92942A701CHN | 1/8" | 0-80 | 0.116" | 0.044" | Off-White,Black |
| 92942A702CHN | 3/16" | 0-80 | 0.116" | 0.044" | Off-White,Black |
| 92942A703CHN | 1/4" | 0-80 | 0.116" | 0.044" | Off-White,Black |
| 92942A704CHN | 3/32" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A705CHN | 1/8" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A706CHN | 3/16" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A707CHN | 1/4" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A708CHN | 5/16" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A709CHN | 3/8" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A711CHN | 7/16" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A712CHN | 1/2" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A713CHN | 3/4" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A714CHN | 1" | 2-56 | 0.167" | 0.053" | Off-White,Black |
| 92942A715CHN | 3/16" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A716CHN | 1/4" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A717CHN | 9/32" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A718CHN | 5/16" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A719CHN | 3/8" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A721CHN | 1/2" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A722CHN | 5/8" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A723CHN | 3/4" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A724CHN | 1" | 4-40 | 0.219" | 0.068" | Off-White,Black |
| 92942A725CHN | 3/16" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A726CHN | 1/4" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A727CHN | 5/16" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A728CHN | 3/8" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A729CHN | 1/2" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A731CHN | 5/8" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A732CHN | 3/4" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A733CHN | 1" | 6-32 | 0.270" | 0.082" | Off-White,Black |
| 92942A734CHN | 1/4" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A735CHN | 3/8" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A736CHN | 1/2" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A737CHN | 5/8" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A738CHN | 3/4" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A739CHN | 1" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A741CHN | 1 1/4" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A742CHN | 1 1/2" | 8-32 | 0.322" | 0.096" | Off-White,Black |
| 92942A743CHN | 1/4" | 10-24 | 0.373" | 0.110" | Off-White,Black |
| 92942A744CHN | 1/2" | 10-24 | 0.373" | 0.110" | Off-White,Black |
| 92942A745CHN | 3/4" | 10-24 | 0.373" | 0.110" | Off-White,Black |
| 92942A746CHN | 1" | 10-24 | 0.373" | 0.110" | Off-White,Black |
| 92942A747CHN | 1 1/2" | 10-24 | 0.373" | 0.110" | Off-White,Black |
| 92942A748CHN | 1/8" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A749CHN | 1/4" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A751CHN | 3/8" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A752CHN | 1/2" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A753CHN | 5/8" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A754CHN | 3/4" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A755CHN | 1" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A756CHN | 1 1/2" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A757CHN | 2" | 10-32 | 0.373" | 0.110" | Off-White,Black |
| 92942A758CHN | 1/4" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| 92942A759CHN | 3/8" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| 92942A761CHN | 1/2" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| 92942A762CHN | 5/8" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| 92942A763CHN | 3/4" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| 92942A764CHN | 1" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| 92942A765CHN | 1 1/2" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| 92942A766CHN | 2" | 1/4"-20 | 0.492" | 0.144" | Off-White,Black |
| Metric Nylon Pan Head Slotted Screws |
| Nylon Plastic | |||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Color |
| 92942A801CHN | 8 | M2 × 0.4 mm | 4 | 1.3 | Off-White,Black |
| 92942A802CHN | 10 | M2 × 0.4 mm | 4 | 1.3 | Off-White,Black |
| 92942A803CHN | 12 | M2 × 0.4 mm | 4 | 1.3 | Off-White,Black |
| 92942A804CHN | 16 | M2 × 0.4 mm | 4 | 1.3 | Off-White,Black |
| 92942A805CHN | 5 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A806CHN | 6 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A807CHN | 8 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A808CHN | 10 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A809CHN | 12 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A811CHN | 16 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A812CHN | 20 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A813CHN | 25 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A814CHN | 30 | M3 × 0.5 mm | 5.6 | 1.8 | Off-White,Black |
| 92942A815CHN | 6 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A816CHN | 8 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A817CHN | 10 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A818CHN | 12 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A819CHN | 16 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A821CHN | 20 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A822CHN | 25 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A823CHN | 30 | M4 × 0.7 mm | 8 | 2.4 | Off-White,Black |
| 92942A824CHN | 8 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A825CHN | 10 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A826CHN | 12 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A827CHN | 16 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A828CHN | 20 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A829CHN | 25 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A831CHN | 30 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A832CHN | 40 | M5 × 0.8 mm | 9.5 | 3 | Off-White,Black |
| 92942A833CHN | 8 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A834CHN | 10 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A835CHN | 12 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A836CHN | 16 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A837CHN | 20 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A838CHN | 25 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A839CHN | 30 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A841CHN | 40 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A842CHN | 50 | M6 × 1 mm | 12 | 3.6 | Off-White,Black |
| 92942A843CHN | 16 | M8 × 1.25 mm | 16 | 4.8 | Off-White,Black |
| 92942A844CHN | 20 | M8 × 1.25 mm | 16 | 4.8 | Off-White,Black |
| 92942A845CHN | 30 | M8 × 1.25 mm | 16 | 4.8 | Off-White,Black |
| 92942A846CHN | 50 | M8 × 1.25 mm | 16 | 4.8 | Off-White,Black |
| Extreme-Temperature Chemical-Resistant PTFE Pan Head Slotted Screws |
| PTFE Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 94701A110CHN | 3/16" | 2-56 | 0.167" | 0.053" | White |
| 94701A120CHN | 1/4" | 2-56 | 0.167" | 0.053" | White |
| 94701A130CHN | 1/2" | 2-56 | 0.167" | 0.053" | White |
| 94701A140CHN | 3/16" | 4-40 | 0.219" | 0.068" | White |
| 94701A611CHN | 1/4" | 4-40 | 0.219" | 0.068" | White |
| 94701A612CHN | 3/8" | 4-40 | 0.219" | 0.068" | White |
| 94701A613CHN | 1/2" | 4-40 | 0.219" | 0.068" | White |
| 94701A614CHN | 3/4" | 4-40 | 0.219" | 0.068" | White |
| 94701A150CHN | 1" | 4-40 | 0.219" | 0.068" | White |
| 94701A207CHN | 1/4" | 6-32 | 0.270" | 0.082" | White |
| 94701A223CHN | 3/8" | 6-32 | 0.270" | 0.082" | White |
| 94701A231CHN | 1/2" | 6-32 | 0.270" | 0.082" | White |
| 94701A239CHN | 3/4" | 6-32 | 0.270" | 0.082" | White |
| 94701A247CHN | 1" | 6-32 | 0.270" | 0.082" | White |
| 94701A303CHN | 1/4" | 8-32 | 0.322" | 0.096" | White |
| 94701A314CHN | 3/8" | 8-32 | 0.322" | 0.096" | White |
| 94701A325CHN | 1/2" | 8-32 | 0.322" | 0.096" | White |
| 94701A336CHN | 3/4" | 8-32 | 0.322" | 0.096" | White |
| 94701A615CHN | 1" | 8-32 | 0.322" | 0.096" | White |
| 94701A404CHN | 1/4" | 10-32 | 0.373" | 0.110" | White |
| 94701A416CHN | 3/8" | 10-32 | 0.373" | 0.110" | White |
| 94701A428CHN | 1/2" | 10-32 | 0.373" | 0.110" | White |
| 94701A440CHN | 3/4" | 10-32 | 0.373" | 0.110" | White |
| 94701A452CHN | 1" | 10-32 | 0.373" | 0.110" | White |
| 94701A616CHN | 3/8" | 1/4"-20 | 0.492" | 0.144" | White |
| 94701A617CHN | 1/2" | 1/4"-20 | 0.492" | 0.144" | White |
| 94701A523CHN | 3/4" | 1/4"-20 | 0.492" | 0.144" | White |
| 94701A535CHN | 1" | 1/4"-20 | 0.492" | 0.144" | White |
| 94701A618CHN | 1 1/2" | 1/4"-20 | 0.492" | 0.144" | White |
| Metric Extreme-Temperature Chemical-Resistant PTFE Pan Head Slotted Screws |
| PTFE Plastic | |||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Color |
| 94701A058CHN | 5 | M3 × 0.5 mm | 5.6 | 1.8 | White |
| 94701A091CHN | 6 | M3 × 0.5 mm | 5.6 | 1.8 | White |
| 94701A197CHN | 8 | M3 × 0.5 mm | 5.6 | 1.8 | White |
| 94701A251CHN | 10 | M3 × 0.5 mm | 5.6 | 1.8 | White |
| 94701A281CHN | 12 | M3 × 0.5 mm | 5.6 | 1.8 | White |
| 94701A285CHN | 6 | M4 × 0.7 mm | 8 | 2.4 | White |
| 94701A318CHN | 8 | M4 × 0.7 mm | 8 | 2.4 | White |
| 94701A320CHN | 10 | M4 × 0.7 mm | 8 | 2.4 | White |
| 94701A365CHN | 12 | M4 × 0.7 mm | 8 | 2.4 | White |
| 94701A405CHN | 16 | M4 × 0.7 mm | 8 | 2.4 | White |
| 94701A412CHN | 8 | M5 × 0.8 mm | 9.5 | 3 | White |
| 94701A464CHN | 10 | M5 × 0.8 mm | 9.5 | 3 | White |
| 94701A504CHN | 12 | M5 × 0.8 mm | 9.5 | 3 | White |
| 94701A532CHN | 16 | M5 × 0.8 mm | 9.5 | 3 | White |
| 94701A669CHN | 20 | M5 × 0.8 mm | 9.5 | 3 | White |
| 94701A789CHN | 10 | M6 × 1 mm | 12 | 3.6 | White |
| 94701A803CHN | 12 | M6 × 1 mm | 12 | 3.6 | White |
| 94701A823CHN | 16 | M6 × 1 mm | 12 | 3.6 | White |
| 94701A825CHN | 20 | M6 × 1 mm | 12 | 3.6 | White |
| 94701A989CHN | 25 | M6 × 1 mm | 12 | 3.6 | White |
| Plastic Narrow Cheese Head Slotted Screws |
| Nylon Plastic | |||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Color |
| 96295A701CHN | 8 | M2 × 0.4 mm | 3.8 | 1.3 | Off-White,Black |
| 96295A702CHN | 10 | M2 × 0.4 mm | 3.8 | 1.3 | Off-White,Black |
| 96295A703CHN | 12 | M2 × 0.4 mm | 3.8 | 1.3 | Off-White,Black |
| 96295A704CHN | 16 | M2 × 0.4 mm | 3.8 | 1.3 | Off-White,Black |
| 96295A705CHN | 5 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A706CHN | 6 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A707CHN | 8 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A708CHN | 10 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A709CHN | 12 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A711CHN | 16 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A712CHN | 20 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A713CHN | 25 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A714CHN | 30 | M3 × 0.5 mm | 5.5 | 2 | Off-White,Black |
| 96295A715CHN | 6 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A716CHN | 8 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A717CHN | 10 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A718CHN | 12 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A719CHN | 16 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A721CHN | 20 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A722CHN | 25 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A723CHN | 30 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A724CHN | 35 | M4 × 0.7 mm | 7 | 2.6 | Off-White,Black |
| 96295A725CHN | 8 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A726CHN | 10 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A727CHN | 12 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A728CHN | 16 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A729CHN | 20 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A731CHN | 25 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A732CHN | 30 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A733CHN | 40 | M5 × 0.8 mm | 8.5 | 3.3 | Off-White,Black |
| 96295A734CHN | 8 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A735CHN | 10 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A736CHN | 12 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A737CHN | 16 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A738CHN | 20 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A739CHN | 25 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A741CHN | 30 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A742CHN | 35 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A743CHN | 40 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A744CHN | 45 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A745CHN | 50 | M6 × 1 mm | 10 | 3.9 | Off-White,Black |
| 96295A746CHN | 16 | M8 × 1.25 mm | 13 | 5 | Off-White,Black |
| 96295A747CHN | 20 | M8 × 1.25 mm | 13 | 5 | Off-White,Black |
| 96295A748CHN | 25 | M8 × 1.25 mm | 13 | 5 | Off-White,Black |
| 96295A749CHN | 30 | M8 × 1.25 mm | 13 | 5 | Off-White,Black |
| 96295A751CHN | 50 | M8 × 1.25 mm | 13 | 5 | Off-White,Black |
| Nylon Decorative Round Head Slotted Screws |
| Nylon Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 97263A701CHN | 1/8" | 0-80 | 0.113" | 0.053" | Off-White,Black |
| 97263A702CHN | 1/4" | 0-80 | 0.113" | 0.053" | Off-White,Black |
| 97263A703CHN | 1/8" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A704CHN | 3/16" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A705CHN | 1/4" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A706CHN | 5/16" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A707CHN | 3/8" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A708CHN | 7/16" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A709CHN | 1/2" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A711CHN | 3/4" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A712CHN | 1" | 2-56 | 0.162" | 0.069" | Off-White,Black |
| 97263A713CHN | 3/16" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A714CHN | 1/4" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A715CHN | 5/16" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A716CHN | 3/8" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A717CHN | 1/2" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A718CHN | 5/8" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A719CHN | 3/4" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A721CHN | 1" | 4-40 | 0.211" | 0.086" | Off-White,Black |
| 97263A722CHN | 3/16" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A723CHN | 1/4" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A724CHN | 5/16" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A725CHN | 3/8" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A726CHN | 1/2" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A727CHN | 5/8" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A728CHN | 3/4" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A729CHN | 1" | 6-32 | 0.260" | 0.103" | Off-White,Black |
| 97263A731CHN | 1/4" | 8-32 | 0.309" | 0.120" | Off-White,Black |
| 97263A732CHN | 3/8" | 8-32 | 0.309" | 0.120" | Off-White,Black |
| 97263A733CHN | 1/2" | 8-32 | 0.309" | 0.120" | Off-White,Black |
| 97263A734CHN | 5/8" | 8-32 | 0.309" | 0.120" | Off-White,Black |
| 97263A735CHN | 3/4" | 8-32 | 0.309" | 0.120" | Off-White,Black |
| 97263A736CHN | 1" | 8-32 | 0.309" | 0.120" | Off-White,Black |
| 97263A737CHN | 1 1/2" | 8-32 | 0.309" | 0.120" | Off-White,Black |
| 97263A738CHN | 1/4" | 10-24 | 0.359" | 0.137" | Off-White,Black |
| 97263A739CHN | 1/2" | 10-24 | 0.359" | 0.137" | Off-White,Black |
| 97263A741CHN | 3/4" | 10-24 | 0.359" | 0.137" | Off-White,Black |
| 97263A742CHN | 1" | 10-24 | 0.359" | 0.137" | Off-White,Black |
| 97263A743CHN | 1 1/2" | 10-24 | 0.359" | 0.137" | Off-White,Black |
| 97263A744CHN | 1/8" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A745CHN | 1/4" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A746CHN | 3/8" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A747CHN | 1/2" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A748CHN | 5/8" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A749CHN | 3/4" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A751CHN | 1" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A752CHN | 1 1/2" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A753CHN | 2" | 10-32 | 0.359" | 0.137" | Off-White,Black |
| 97263A754CHN | 1/4" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| 97263A755CHN | 3/8" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| 97263A756CHN | 1/2" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| 97263A757CHN | 5/8" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| 97263A758CHN | 3/4" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| 97263A759CHN | 1" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| 97263A761CHN | 1 1/2" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| 97263A762CHN | 2" | 1/4"-20 | 0.472" | 0.175" | Off-White,Black |
| Extreme-Temperature Chemical-Resistant |
| PTFE Decorative Round Head Slotted Screws |
| PTFE Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 94700A106CHN | 1/4" | 4-40 | 0.211" | 0.086" | White |
| 94700A108CHN | 3/8" | 4-40 | 0.211" | 0.086" | White |
| 94700A112CHN | 5/8" | 4-40 | 0.211" | 0.086" | White |
| 94700A144CHN | 1/4" | 6-32 | 0.260" | 0.103" | White |
| 94700A146CHN | 3/8" | 6-32 | 0.260" | 0.103" | White |
| 94700A148CHN | 1/2" | 6-32 | 0.260" | 0.103" | White |
| 94700A151CHN | 3/4" | 6-32 | 0.260" | 0.103" | White |
| 94700A153CHN | 1" | 6-32 | 0.260" | 0.103" | White |
| 94700A190CHN | 1/4" | 8-32 | 0.309" | 0.120" | White |
| 94700A192CHN | 3/8" | 8-32 | 0.309" | 0.120" | White |
| 94700A194CHN | 1/2" | 8-32 | 0.309" | 0.120" | White |
| 94700A196CHN | 3/4" | 8-32 | 0.309" | 0.120" | White |
| 94700A199CHN | 1" | 8-32 | 0.309" | 0.120" | White |
| 94700A827CHN | 3/8" | 10-32 | 0.359" | 0.137" | White |
| 94700A829CHN | 1/2" | 10-32 | 0.359" | 0.137" | White |
| 94700A831CHN | 3/4" | 10-32 | 0.359" | 0.137" | White |
| 94700A833CHN | 1" | 10-32 | 0.359" | 0.137" | White |
| 94700A540CHN | 3/4" | 1/4"-20 | 0.472" | 0.175" | White |
| 94700A542CHN | 1" | 1/4"-20 | 0.472" | 0.175" | White |
| Plastic High-Profile Narrow Fillister Head Slotted Screws |
| Nylon Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 93939A701CHN | 1/8" | 0-80 | 0.096" | 0.055" | Off-White,Black |
| 93939A702CHN | 3/16" | 0-80 | 0.096" | 0.055" | Off-White,Black |
| 93939A703CHN | 1/4" | 0-80 | 0.096" | 0.055" | Off-White,Black |
| 93939A704CHN | 1/8" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A705CHN | 3/16" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A706CHN | 1/4" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A707CHN | 5/16" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A708CHN | 3/8" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A709CHN | 1/2" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A711CHN | 3/4" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A712CHN | 1" | 2-56 | 0.140" | 0.083" | Off-White,Black |
| 93939A713CHN | 3/16" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A714CHN | 1/4" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A715CHN | 9/32" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A716CHN | 5/16" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A717CHN | 3/8" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A718CHN | 1/2" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A719CHN | 5/8" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A721CHN | 3/4" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A722CHN | 1" | 4-40 | 0.183" | 0.107" | Off-White,Black |
| 93939A723CHN | 3/16" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A724CHN | 1/4" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A725CHN | 5/16" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A726CHN | 3/8" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A727CHN | 1/2" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A728CHN | 5/8" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A729CHN | 3/4" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A731CHN | 1" | 6-32 | 0.226" | 0.132" | Off-White,Black |
| 93939A732CHN | 1/4" | 8-32 | 0.270" | 0.156" | Off-White,Black |
| 93939A733CHN | 3/8" | 8-32 | 0.270" | 0.156" | Off-White,Black |
| 93939A734CHN | 1/2" | 8-32 | 0.270" | 0.156" | Off-White,Black |
| 93939A735CHN | 5/8" | 8-32 | 0.270" | 0.156" | Off-White,Black |
| 93939A736CHN | 3/4" | 8-32 | 0.270" | 0.156" | Off-White,Black |
| 93939A737CHN | 1" | 8-32 | 0.270" | 0.156" | Off-White,Black |
| 93939A738CHN | 1 1/2" | 8-32 | 0.270" | 0.156" | Off-White,Black |
| 93939A739CHN | 1/4" | 10-24 | 0.313" | 0.180" | Off-White,Black |
| 93939A741CHN | 1/2" | 10-24 | 0.313" | 0.180" | Off-White,Black |
| 93939A742CHN | 3/4" | 10-24 | 0.313" | 0.180" | Off-White,Black |
| 93939A743CHN | 1" | 10-24 | 0.313" | 0.180" | Off-White,Black |
| 93939A744CHN | 1 1/2" | 10-24 | 0.313" | 0.180" | Off-White,Black |
| 93939A745CHN | 1/8" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A746CHN | 1/4" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A747CHN | 3/8" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A748CHN | 1/2" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A749CHN | 5/8" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A751CHN | 3/4" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A752CHN | 1" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A753CHN | 1 1/2" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A754CHN | 2" | 10-32 | 0.313" | 0.180" | Off-White,Black |
| 93939A755CHN | 1/4" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| 93939A756CHN | 3/8" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| 93939A757CHN | 1/2" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| 93939A758CHN | 5/8" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| 93939A759CHN | 3/4" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| 93939A761CHN | 1" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| 93939A762CHN | 1 1/2" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| 93939A763CHN | 2" | 1/4"-20 | 0.414" | 0.237" | Off-White,Black |
| Plastic Binding Head Slotted Screws |
| Nylon Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 94690A701CHN | 1/8" | 0-80 | 0.126" | 0.032" | Off-White,Black |
| 94690A702CHN | 3/16" | 0-80 | 0.126" | 0.032" | Off-White,Black |
| 94690A703CHN | 1/4" | 0-80 | 0.126" | 0.032" | Off-White,Black |
| 94690A704CHN | 3/32" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A705CHN | 1/8" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A706CHN | 3/16" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A707CHN | 1/4" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A708CHN | 5/16" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A709CHN | 3/8" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A711CHN | 7/16" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A712CHN | 1/2" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A713CHN | 3/4" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A714CHN | 1" | 2-56 | 0.181" | 0.050" | Off-White,Black |
| 94690A715CHN | 3/16" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A716CHN | 1/4" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A717CHN | 9/32" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A718CHN | 5/16" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A719CHN | 3/8" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A721CHN | 1/2" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A722CHN | 5/8" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A723CHN | 3/4" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A724CHN | 1" | 4-40 | 0.235" | 0.068" | Off-White,Black |
| 94690A725CHN | 3/16" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A726CHN | 1/4" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A727CHN | 5/16" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A728CHN | 3/8" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A729CHN | 1/2" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A731CHN | 5/8" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A732CHN | 3/4" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A733CHN | 1" | 6-32 | 0.290" | 0.087" | Off-White,Black |
| 94690A734CHN | 1/4" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A735CHN | 3/8" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A736CHN | 1/2" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A737CHN | 5/8" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A738CHN | 3/4" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A739CHN | 1" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A741CHN | 1 1/4" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A742CHN | 1 1/2" | 8-32 | 0.344" | 0.105" | Off-White,Black |
| 94690A743CHN | 1/4" | 10-24 | 0.399" | 0.123" | Off-White,Black |
| 94690A744CHN | 1/2" | 10-24 | 0.399" | 0.123" | Off-White,Black |
| 94690A745CHN | 3/4" | 10-24 | 0.399" | 0.123" | Off-White,Black |
| 94690A746CHN | 1" | 10-24 | 0.399" | 0.123" | Off-White,Black |
| 94690A747CHN | 1 1/2" | 10-24 | 0.399" | 0.123" | Off-White,Black |
| 94690A748CHN | 1/4" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A749CHN | 3/8" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A751CHN | 1/2" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A752CHN | 5/8" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A753CHN | 3/4" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A754CHN | 1" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A755CHN | 1 1/2" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A756CHN | 2" | 10-32 | 0.399" | 0.123" | Off-White,Black |
| 94690A757CHN | 1/4" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| 94690A758CHN | 3/8" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| 94690A759CHN | 1/2" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| 94690A761CHN | 5/8" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| 94690A762CHN | 3/4" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| 94690A763CHN | 1" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| 94690A764CHN | 1 1/2" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| 94690A765CHN | 2" | 1/4"-20 | 0.525" | 0.165" | Off-White,Black |
| Plastic Hex Head Screws |
| Nylon Plastic | |||||||
| Part NO. | Lg. | Thread Specifications | Min. Thread Lg. | Thread Spacing | Head Wd. | Head Ht. | |
| Black | Off-White | ||||||
| 99091A050CHN | 94613A050CHN | 1/8" | 0-80 | __ | Fine | 1/8" | 3/64" |
| 99091A054CHN | 94613A054CHN | 3/16" | 0-80 | __ | Fine | 1/8" | 3/64" |
| 99091A058CHN | 94613A058CHN | 1/4" | 0-80 | __ | Fine | 1/8" | 3/64" |
| 99091A073CHN | 94613A073CHN | 3/32" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A074CHN | 94613A074CHN | 1/8" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A076CHN | 94613A076CHN | 3/16" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A077CHN | 94613A077CHN | 1/4" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A078CHN | 94613A078CHN | 5/16" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A079CHN | 94613A079CHN | 3/8" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A080CHN | 94613A080CHN | 7/16" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A081CHN | 94613A081CHN | 1/2" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A084CHN | 94613A084CHN | 3/4" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A086CHN | 94613A086CHN | 1" | 2-56 | __ | Coarse | 1/8" | 3/64" |
| 99091A105CHN | 94613A105CHN | 3/16" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A106CHN | 94613A106CHN | 1/4" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A107CHN | 94613A107CHN | 9/32" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A109CHN | 94613A109CHN | 5/16" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A108CHN | 94613A108CHN | 3/8" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A110CHN | 94613A110CHN | 1/2" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A112CHN | 94613A112CHN | 5/8" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A113CHN | 94613A113CHN | 3/4" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A115CHN | 94613A115CHN | 1" | 4-40 | __ | Coarse | 3/16" | 1/16" |
| 99091A143CHN | 94613A143CHN | 3/16" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A144CHN | 94613A144CHN | 1/4" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A145CHN | 94613A145CHN | 5/16" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A146CHN | 94613A146CHN | 3/8" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A148CHN | 94613A148CHN | 1/2" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A150CHN | 94613A150CHN | 5/8" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A151CHN | 94613A151CHN | 3/4" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A153CHN | 94613A153CHN | 1" | 6-32 | __ | Coarse | 1/4" | 3/32" |
| 99091A190CHN | 94613A190CHN | 1/4" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A192CHN | 94613A192CHN | 3/8" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A194CHN | 94613A194CHN | 1/2" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A196CHN | 94613A196CHN | 5/8" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A197CHN | 94613A197CHN | 3/4" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A199CHN | 94613A199CHN | 1" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A204CHN | 94613A204CHN | 1 1/4" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A203CHN | 94613A203CHN | 1 1/2" | 8-32 | __ | Coarse | 1/4" | 7/64" |
| 99091A238CHN | 94613A238CHN | 1/4" | 10-24 | __ | Coarse | 5/16" | 1/8" |
| 99091A242CHN | 94613A242CHN | 1/2" | 10-24 | __ | Coarse | 5/16" | 1/8" |
| 99091A245CHN | 94613A245CHN | 3/4" | 10-24 | __ | Coarse | 5/16" | 1/8" |
| 99091A247CHN | 94613A247CHN | 1" | 10-24 | __ | Coarse | 5/16" | 1/8" |
| 99091A251CHN | 94613A251CHN | 1 1/2" | 10-24 | __ | Coarse | 5/16" | 1/8" |
| 99091A848CHN | 94613A848CHN | 1/8" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A825CHN | 94613A825CHN | 1/4" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A827CHN | 94613A827CHN | 3/8" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A829CHN | 94613A829CHN | 1/2" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A830CHN | 94613A830CHN | 5/8" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A831CHN | 94613A831CHN | 3/4" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A833CHN | 94613A833CHN | 1" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A836CHN | 94613A836CHN | 1 1/2" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A838CHN | 94613A838CHN | 2" | 10-32 | __ | Fine | 5/16" | 1/8" |
| 99091A533CHN | 94613A533CHN | 1/4" | 1/4"-20 | __ | Coarse | 3/8" | 3/16" |
| 91970A535CHN | 91244A535CHN | 3/8" | 1/4"-20 | __ | Coarse | 7/16" | 3/16" |
| 99091A537CHN | 94613A537CHN | 1/2" | 1/4"-20 | __ | Coarse | 3/8" | 3/16" |
| 91970A537CHN | 91244A537CHN | 1/2" | 1/4"-20 | __ | Coarse | 7/16" | 3/16" |
| 99091A539CHN | 94613A539CHN | 5/8" | 1/4"-20 | __ | Coarse | 3/8" | 3/16" |
| 99091A540CHN | 94613A540CHN | 3/4" | 1/4"-20 | __ | Coarse | 3/8" | 3/16" |
| 91970A540CHN | 91244A540CHN | 3/4" | 1/4"-20 | __ | Coarse | 7/16" | 3/16" |
| 99091A542CHN | 94613A542CHN | 1" | 1/4"-20 | __ | Coarse | 3/8" | 3/16" |
| 91970A542CHN | 91244A542CHN | 1" | 1/4"-20 | __ | Coarse | 7/16" | 3/16" |
| 91970A544CHN | 91244A544CHN | 1 1/4" | 1/4"-20 | 3/4" | Coarse | 7/16" | 3/16" |
| 99091A546CHN | 94613A546CHN | 1 1/2" | 1/4"-20 | __ | Coarse | 3/8" | 3/16" |
| 91970A546CHN | 91244A546CHN | 1 1/2" | 1/4"-20 | 3/4" | Coarse | 7/16" | 3/16" |
| 99091A550CHN | 94613A550CHN | 2" | 1/4"-20 | __ | Coarse | 3/8" | 3/16" |
| 91970A550CHN | 91244A550CHN | 2" | 1/4"-20 | 3/4" | Coarse | 7/16" | 3/16" |
| 91970A579CHN | 91244A579CHN | 1/2" | 5/16"-18 | __ | Coarse | 1/2" | 15/64" |
| 91970A581CHN | 91244A581CHN | 3/4" | 5/16"-18 | __ | Coarse | 1/2" | 15/64" |
| 91970A583CHN | 91244A583CHN | 1" | 5/16"-18 | __ | Coarse | 1/2" | 15/64" |
| 91970A585CHN | 91244A585CHN | 1 1/4" | 5/16"-18 | 7/8" | Coarse | 1/2" | 15/64" |
| 91970A587CHN | 91244A587CHN | 1 1/2" | 5/16"-18 | 7/8" | Coarse | 1/2" | 15/64" |
| 91970A591CHN | 91244A591CHN | 2" | 5/16"-18 | 7/8" | Coarse | 1/2" | 15/64" |
| 91970A593CHN | 91244A593CHN | 2 1/2" | 5/16"-18 | 7/8" | Coarse | 1/2" | 15/64" |
| 91970A595CHN | 91244A595CHN | 3" | 5/16"-18 | 7/8" | Coarse | 1/2" | 15/64" |
| 91970A620CHN | 91244A620CHN | 1/2" | 3/8"-16 | __ | Coarse | 9/16" | 17/64" |
| 91970A622CHN | 91244A622CHN | 3/4" | 3/8"-16 | __ | Coarse | 9/16" | 17/64" |
| 91970A624CHN | 91244A624CHN | 1" | 3/8"-16 | __ | Coarse | 9/16" | 17/64" |
| 91970A626CHN | 91244A626CHN | 1 1/4" | 3/8"-16 | 1" | Coarse | 9/16" | 17/64" |
| 91970A628CHN | 91244A628CHN | 1 1/2" | 3/8"-16 | 1" | Coarse | 9/16" | 17/64" |
| 91970A632CHN | 91244A632CHN | 2" | 3/8"-16 | 1" | Coarse | 9/16" | 17/64" |
| 91970A634CHN | 91244A634CHN | 2 1/2" | 3/8"-16 | 1" | Coarse | 9/16" | 17/64" |
| 91970A638CHN | 91244A638CHN | 3" | 3/8"-16 | 1" | Coarse | 9/16" | 17/64" |
| 91970A708CHN | 91244A708CHN | 1/2" | 1/2"-13 | __ | Coarse | 3/4" | 23/64" |
| 91970A710CHN | 91244A710CHN | 3/4" | 1/2"-13 | __ | Coarse | 3/4" | 23/64" |
| 91970A712CHN | 91244A712CHN | 1" | 1/2"-13 | __ | Coarse | 3/4" | 23/64" |
| 91970A714CHN | 91244A714CHN | 1 1/4" | 1/2"-13 | __ | Coarse | 3/4" | 23/64" |
| 91970A716CHN | 91244A716CHN | 1 1/2" | 1/2"-13 | 1 1/4" | Coarse | 3/4" | 23/64" |
| 91970A720CHN | 91244A720CHN | 2" | 1/2"-13 | 1 1/4" | Coarse | 3/4" | 23/64" |
| 91970A722CHN | 91244A722CHN | 2 1/2" | 1/2"-13 | 1 1/4" | Coarse | 3/4" | 23/64" |
| 91970A724CHN | 91244A724CHN | 3" | 1/2"-13 | 1 1/4" | Coarse | 3/4" | 23/64" |
| 91970A751CHN | 91244A751CHN | 1/2" | 5/8"-11 | __ | Coarse | 15/16" | 7/16" |
| 91970A753CHN | 91244A753CHN | 1" | 5/8"-11 | __ | Coarse | 15/16" | 7/16" |
| 91970A755CHN | 91244A755CHN | 2" | 5/8"-11 | 1 1/2" | Coarse | 15/16" | 7/16" |
| 99602A310CHN | 94175A310CHN | 8mm | M4 × 0.7 mm | __ | Coarse | 7mm | 3mm |
| 99602A315CHN | 94175A315CHN | 10mm | M4 × 0.7 mm | __ | Coarse | 7mm | 3mm |
| 99602A320CHN | 94175A320CHN | 12mm | M4 × 0.7 mm | __ | Coarse | 7mm | 3mm |
| 99602A325CHN | 94175A325CHN | 16mm | M4 × 0.7 mm | __ | Coarse | 7mm | 3mm |
| 99602A330CHN | 94175A330CHN | 20mm | M4 × 0.7 mm | __ | Coarse | 7mm | 3mm |
| 99602A420CHN | 94175A420CHN | 12mm | M5 × 0.8 mm | __ | Coarse | 8mm | 3.8mm |
| 99602A425CHN | 94175A425CHN | 16mm | M5 × 0.8 mm | __ | Coarse | 8mm | 3.8mm |
| 99602A430CHN | 94175A430CHN | 20mm | M5 × 0.8 mm | __ | Coarse | 8mm | 3.8mm |
| 99602A435CHN | 94175A435CHN | 25mm | M5 × 0.8 mm | __ | Coarse | 8mm | 3.8mm |
| 99602A510CHN | 94175A510CHN | 10mm | M6 × 1 mm | __ | Coarse | 10mm | 4.7mm |
| 99602A520CHN | 94175A520CHN | 16mm | M6 × 1 mm | __ | Coarse | 10mm | 4.7mm |
| 99602A525CHN | 94175A525CHN | 20mm | M6 × 1 mm | __ | Coarse | 10mm | 4.7mm |
| 99602A535CHN | 94175A535CHN | 30mm | M6 × 1 mm | __ | Coarse | 10mm | 4.7mm |
| 99602A545CHN | 94175A545CHN | 40mm | M6 × 1 mm | __ | Coarse | 10mm | 4.7mm |
| 99602A605CHN | 94175A605CHN | 16mm | M8 × 1.25 mm | __ | Coarse | 13mm | 6mm |
| 99602A610CHN | 94175A610CHN | 20mm | M8 × 1.25 mm | __ | Coarse | 13mm | 6mm |
| 99602A615CHN | 94175A615CHN | 25mm | M8 × 1.25 mm | __ | Coarse | 13mm | 6mm |
| 99602A620CHN | 94175A620CHN | 30mm | M8 × 1.25 mm | __ | Coarse | 13mm | 6mm |
| 99602A625CHN | 94175A625CHN | 35mm | M8 × 1.25 mm | __ | Coarse | 13mm | 6mm |
| 99602A630CHN | 94175A630CHN | 50mm | M8 × 1.25 mm | __ | Coarse | 13mm | 6mm |
| 99602A650CHN | 94175A650CHN | 20mm | M10 × 1.5 mm | __ | Coarse | 16mm | 7.5mm |
| 99602A660CHN | 94175A660CHN | 30mm | M10 × 1.5 mm | __ | Coarse | 16mm | 7.5mm |
| 99602A665CHN | 94175A665CHN | 35mm | M10 × 1.5 mm | __ | Coarse | 16mm | 7.5mm |
| 99602A670CHN | 94175A670CHN | 50mm | M10 × 1.5 mm | __ | Coarse | 16mm | 7.5mm |
| 99602A705CHN | 94175A705CHN | 25mm | M12 × 1.75 mm | __ | Coarse | 18mm | 9mm |
| 99602A710CHN | 94175A711CHN | 30mm | M12 × 1.75 mm | __ | Coarse | 18mm | 9mm |
| 99602A715CHN | 94175A715CHN | 35mm | M12 × 1.75 mm | __ | Coarse | 18mm | 9mm |
| 99602A720CHN | 94175A721CHN | 40mm | M12 × 1.75 mm | __ | Coarse | 18mm | 9mm |
| 99602A725CHN | 94175A726CHN | 50mm | M12 × 1.75 mm | __ | Coarse | 18mm | 9mm |
| PVC Plastic | |||||||
| Part NO. | Lg. | Thread Specifications | Min. Thread Lg. | Thread Spacing | Head Wd. | Head Ht. | Color |
| 95841A538CHN | 1/2" | 1/4"-20 | __ | Coarse | 7/16" | 15/64" | Gray |
| 95841A540CHN | 3/4" | 1/4"-20 | __ | Coarse | 7/16" | 15/64" | Gray |
| 95841A542CHN | 1" | 1/4"-20 | __ | Coarse | 7/16" | 15/64" | Gray |
| 95841A546CHN | 1 1/2" | 1/4"-20 | 3/4" | Coarse | 7/16" | 15/64" | Gray |
| 95841A550CHN | 2" | 1/4"-20 | 3/4" | Coarse | 7/16" | 15/64" | Gray |
| 95841A554CHN | 3" | 1/4"-20 | 3/4" | Coarse | 7/16" | 15/64" | Gray |
| 95841A583CHN | 1" | 5/16"-18 | __ | Coarse | 1/2" | 17/64" | Gray |
| 95841A585CHN | 1 1/4" | 5/16"-18 | 1" | Coarse | 1/2" | 17/64" | Gray |
| 95841A587CHN | 1 1/2" | 5/16"-18 | 1" | Coarse | 1/2" | 17/64" | Gray |
| 95841A589CHN | 2" | 5/16"-18 | 1" | Coarse | 1/2" | 17/64" | Gray |
| 95841A623CHN | 1/2" | 3/8"-16 | __ | Coarse | 9/16" | 5/16" | Gray |
| 95841A624CHN | 1" | 3/8"-16 | __ | Coarse | 9/16" | 5/16" | Gray |
| 95841A626CHN | 1 1/4" | 3/8"-16 | 1" | Coarse | 9/16" | 5/16" | Gray |
| 95841A628CHN | 1 1/2" | 3/8"-16 | 1" | Coarse | 9/16" | 5/16" | Gray |
| 95841A632CHN | 2" | 3/8"-16 | 1" | Coarse | 9/16" | 5/16" | Gray |
| 95841A636CHN | 3" | 3/8"-16 | 1" | Coarse | 9/16" | 5/16" | Gray |
| 95841A712CHN | 1" | 1/2"-13 | __ | Coarse | 3/4" | 13/32" | Gray |
| 95841A716CHN | 1 1/2" | 1/2"-13 | 1" | Coarse | 3/4" | 13/32" | Gray |
| 95841A720CHN | 2" | 1/2"-13 | 1 1/4" | Coarse | 3/4" | 13/32" | Gray |
| 95841A724CHN | 3" | 1/2"-13 | 1 1/2" | Coarse | 3/4" | 13/32" | Gray |
| 95841A726CHN | 4" | 1/2"-13 | 1 1/2" | Coarse | 3/4" | 13/32" | Gray |
| 95841A800CHN | 1 1/2" | 5/8"-11 | __ | Coarse | 7/8" | 31/64" | Gray |
| 95841A802CHN | 2" | 5/8"-11 | 1 1/2" | Coarse | 7/8" | 31/64" | Gray |
| 95841A806CHN | 3" | 5/8"-11 | 1 1/2" | Coarse | 7/8" | 31/64" | Gray |
| 95841A810CHN | 4" | 5/8"-11 | 1 1/2" | Coarse | 7/8" | 31/64" | Gray |
| PTFE Plastic | ||||||
| Part NO. | Lg. | Thread Specifications | Threading | Head Wd. | Head Ht. | Color |
| 94701A212CHN | 1/4" | 6-32 | Fully Threaded | 1/4" | 3/32" | White |
| 94701A228CHN | 3/8" | 6-32 | Fully Threaded | 1/4" | 3/32" | White |
| 94701A236CHN | 1/2" | 6-32 | Fully Threaded | 1/4" | 3/32" | White |
| 94701A244CHN | 3/4" | 6-32 | Fully Threaded | 1/4" | 3/32" | White |
| 94701A252CHN | 1" | 6-32 | Fully Threaded | 1/4" | 3/32" | White |
| 94701A308CHN | 1/4" | 8-32 | Fully Threaded | 1/4" | 7/64" | White |
| 94701A319CHN | 3/8" | 8-32 | Fully Threaded | 1/4" | 7/64" | White |
| 94701A330CHN | 1/2" | 8-32 | Fully Threaded | 1/4" | 7/64" | White |
| 94701A341CHN | 3/4" | 8-32 | Fully Threaded | 1/4" | 7/64" | White |
| 94701A409CHN | 1/4" | 10-32 | Fully Threaded | 5/16" | 1/8" | White |
| 94701A421CHN | 3/8" | 10-32 | Fully Threaded | 5/16" | 1/8" | White |
| 94701A433CHN | 1/2" | 10-32 | Fully Threaded | 5/16" | 1/8" | White |
| 94701A445CHN | 3/4" | 10-32 | Fully Threaded | 5/16" | 1/8" | White |
| 94701A457CHN | 1" | 10-32 | Fully Threaded | 5/16" | 1/8" | White |
| 91297A537CHN | 1/2" | 1/4"-20 | Fully Threaded | 7/16" | 3/16" | White |
| 94701A528CHN | 3/4" | 1/4"-20 | Fully Threaded | 3/8" | 3/16" | White |
| 91297A540CHN | 3/4" | 1/4"-20 | Fully Threaded | 7/16" | 3/16" | White |
| 94701A541CHN | 1" | 1/4"-20 | Fully Threaded | 3/8" | 3/16" | White |
| 91297A542CHN | 1" | 1/4"-20 | Fully Threaded | 7/16" | 3/16" | White |
| 91297A581CHN | 3/4" | 5/16"-18 | Fully Threaded | 1/2" | 15/64" | White |
| 91297A583CHN | 1" | 5/16"-18 | Fully Threaded | 1/2" | 15/64" | White |
| 91297A585CHN | 1 1/2" | 5/16"-18 | Fully Threaded | 1/2" | 15/64" | White |
| 91297A624CHN | 1" | 3/8"-16 | Fully Threaded | 9/16" | 17/64" | White |
| 91297A628CHN | 1 1/2" | 3/8"-16 | Fully Threaded | 9/16" | 17/64" | White |
| 91297A632CHN | 2" | 3/8"-16 | Fully Threaded | 9/16" | 17/64" | White |
| 91297A634CHN | 2 1/2" | 3/8"-16 | Fully Threaded | 9/16" | 17/64" | White |
| Nylon Slotted Flat Head Screws |
| Nylon Plastic—82° Countersink Angle | ||||||
| Part NO. | Lg. | Thread Specifications | Flat Head Profile | Head Dia. | Head Ht. | Color |
| 92929A101CHN | 1/8" | 0-80 | Standard | 0.118" | 0.035" | Off-White,Black |
| 92929A102CHN | 3/16" | 0-80 | Standard | 0.118" | 0.035" | Off-White,Black |
| 92929A103CHN | 1/4" | 0-80 | Standard | 0.118" | 0.035" | Off-White,Black |
| 92929A104CHN | 3/32" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A106CHN | 1/8" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A108CHN | 3/16" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A110CHN | 1/4" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A112CHN | 5/16" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A114CHN | 3/8" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A116CHN | 7/16" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A118CHN | 1/2" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A120CHN | 3/4" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A122CHN | 1" | 2-56 | Standard | 0.172" | 0.051" | Off-White,Black |
| 92929A124CHN | 3/16" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A126CHN | 1/4" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A128CHN | 9/32" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A130CHN | 5/16" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A132CHN | 3/8" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A134CHN | 1/2" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A136CHN | 5/8" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A138CHN | 3/4" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A140CHN | 1" | 4-40 | Standard | 0.225" | 0.067" | Off-White,Black |
| 92929A142CHN | 3/16" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A144CHN | 1/4" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A146CHN | 5/16" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A148CHN | 3/8" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A150CHN | 1/2" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A152CHN | 5/8" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A154CHN | 3/4" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A156CHN | 1" | 6-32 | Standard | 0.279" | 0.083" | Off-White,Black |
| 92929A158CHN | 1/4" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A160CHN | 5/16" | 8-32 | Undercut | 0.332" | 0.100" | Off-White,Black |
| 92929A161CHN | 3/8" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A163CHN | 1/2" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A165CHN | 5/8" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A167CHN | 3/4" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A169CHN | 1" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A171CHN | 1 1/4" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A173CHN | 1 1/2" | 8-32 | Standard | 0.332" | 0.100" | Off-White,Black |
| 92929A175CHN | 1/4" | 10-24 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A177CHN | 3/8" | 10-24 | Standard | 0.365" | 0.116" | Off-White,Black |
| 92929A178CHN | 1/2" | 10-24 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A180CHN | 5/8" | 10-24 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A181CHN | 3/4" | 10-24 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A183CHN | 1" | 10-24 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A185CHN | 1 1/2" | 10-24 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A187CHN | 1/4" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A189CHN | 3/8" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A191CHN | 1/2" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A193CHN | 5/8" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A195CHN | 3/4" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A197CHN | 1" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A199CHN | 1 1/2" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A201CHN | 2" | 10-32 | Standard | 0.385" | 0.116" | Off-White,Black |
| 92929A216CHN | 1/4" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A218CHN | 3/8" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A219CHN | 1/2" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A221CHN | 5/8" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A223CHN | 3/4" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A225CHN | 7/8" | 1/4"-20 | Undercut | 0.507" | 0.153" | Off-White,Black |
| 92929A226CHN | 1" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A228CHN | 1 1/4" | 1/4"-20 | Undercut | 0.507" | 0.153" | Off-White,Black |
| 92929A230CHN | 1 1/2" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A232CHN | 1 3/4" | 1/4"-20 | Undercut | 0.507" | 0.153" | Off-White,Black |
| 92929A233CHN | 2" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A235CHN | 2 1/2" | 1/4"-20 | Undercut | 0.507" | 0.153" | Off-White,Black |
| 92929A236CHN | 3" | 1/4"-20 | Standard | 0.507" | 0.153" | Off-White,Black |
| 92929A203CHN | 1/2" | 5/16"-18 | Standard | 0.635" | 0.191" | Off-White,Black |
| 92929A204CHN | 5/8" | 5/16"-18 | Standard | 0.635" | 0.191" | Off-White,Black |
| 92929A205CHN | 3/4" | 5/16"-18 | Standard | 0.635" | 0.191" | Off-White,Black |
| 92929A206CHN | 1" | 5/16"-18 | Standard | 0.635" | 0.191" | Off-White,Black |
| 92929A207CHN | 1 1/4" | 5/16"-18 | Standard | 0.635" | 0.191" | Off-White,Black |
| 92929A208CHN | 1 1/2" | 5/16"-18 | Standard | 0.635" | 0.191" | Off-White,Black |
| 92929A209CHN | 2" | 5/16"-18 | Standard | 0.635" | 0.191" | Off-White,Black |
| 92929A210CHN | 3/4" | 3/8"-16 | Standard | 0.725" | 0.230" | Off-White,Black |
| 92929A211CHN | 1" | 3/8"-16 | Standard | 0.725" | 0.230" | Off-White,Black |
| 92929A212CHN | 1 1/4" | 3/8"-16 | Standard | 0.762" | 0.230" | Off-White,Black |
| 92929A213CHN | 1 1/2" | 3/8"-16 | Standard | 0.725" | 0.230" | Off-White,Black |
| 92929A214CHN | 2" | 3/8"-16 | Standard | 0.725" | 0.230" | Off-White,Black |
| 92929A215CHN | 3" | 3/8"-16 | Standard | 0.762" | 0.230" | Off-White,Black |
| Nylon Plastic—100° Countersink Angle | ||||||
| Part NO. | Lg. | Thread Specifications | Flat Head Profile | Head Dia. | Head Ht. | Color |
| 92929A105CHN | 3/32" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A107CHN | 1/8" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A109CHN | 3/16" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A111CHN | 1/4" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A113CHN | 5/16" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A115CHN | 3/8" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A117CHN | 7/16" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A119CHN | 1/2" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A121CHN | 3/4" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A123CHN | 1" | 2-56 | Standard | 0.172" | 0.037" | Off-White,Black |
| 92929A125CHN | 3/16" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A127CHN | 1/4" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A129CHN | 9/32" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A131CHN | 5/16" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A133CHN | 3/8" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A135CHN | 1/2" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A137CHN | 5/8" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A139CHN | 3/4" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A141CHN | 1" | 4-40 | Standard | 0.225" | 0.049" | Off-White,Black |
| 92929A143CHN | 3/16" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A145CHN | 1/4" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A147CHN | 5/16" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A149CHN | 3/8" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A151CHN | 1/2" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A153CHN | 5/8" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A155CHN | 3/4" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A157CHN | 1" | 6-32 | Standard | 0.279" | 0.060" | Off-White,Black |
| 92929A159CHN | 1/4" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A162CHN | 3/8" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A164CHN | 1/2" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A166CHN | 5/8" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A168CHN | 3/4" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A170CHN | 1" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A172CHN | 1 1/4" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A174CHN | 1 1/2" | 8-32 | Standard | 0.332" | 0.072" | Off-White,Black |
| 92929A176CHN | 1/4" | 10-24 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A179CHN | 1/2" | 10-24 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A182CHN | 3/4" | 10-24 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A184CHN | 1" | 10-24 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A186CHN | 1 1/2" | 10-24 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A188CHN | 1/4" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A190CHN | 3/8" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A192CHN | 1/2" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A194CHN | 5/8" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A196CHN | 3/4" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A198CHN | 1" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A200CHN | 1 1/2" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A202CHN | 2" | 10-32 | Standard | 0.385" | 0.083" | Off-White,Black |
| 92929A217CHN | 1/4" | 1/4"-20 | Standard | 0.507" | 0.110" | Off-White,Black |
| 92929A220CHN | 1/2" | 1/4"-20 | Standard | 0.507" | 0.110" | Off-White,Black |
| 92929A222CHN | 5/8" | 1/4"-20 | Standard | 0.507" | 0.110" | Off-White,Black |
| 92929A224CHN | 3/4" | 1/4"-20 | Standard | 0.507" | 0.110" | Off-White,Black |
| 92929A227CHN | 1" | 1/4"-20 | Standard | 0.507" | 0.110" | Off-White,Black |
| 92929A231CHN | 1 1/2" | 1/4"-20 | Standard | 0.507" | 0.110" | Off-White,Black |
| 92929A234CHN | 2" | 1/4"-20 | Standard | 0.507" | 0.110" | Off-White,Black |
| Metric Nylon Slotted Flat Head Screws |
| Nylon Plastic | |||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Color |
| 92929A240CHN | 4 | M2 × 0.4 mm | 4.4 | 1.2 | Off-White,Black |
| 92929A241CHN | 5 | M2 × 0.4 mm | 4.4 | 1.2 | Off-White,Black |
| 92929A242CHN | 6 | M2 × 0.4 mm | 4.4 | 1.2 | Off-White,Black |
| 92929A243CHN | 8 | M2 × 0.4 mm | 4.4 | 1.2 | Off-White,Black |
| 92929A237CHN | 10 | M2 × 0.4 mm | 4.4 | 1.2 | Off-White,Black |
| 92929A238CHN | 12 | M2 × 0.4 mm | 4.4 | 1.2 | Off-White,Black |
| 92929A239CHN | 16 | M2 × 0.4 mm | 4.4 | 1.2 | Off-White,Black |
| 92929A250CHN | 5 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A251CHN | 6 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A252CHN | 8 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A244CHN | 10 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A245CHN | 12 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A246CHN | 16 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A247CHN | 20 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A248CHN | 25 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A249CHN | 30 | M3 × 0.5 mm | 6.3 | 1.7 | Off-White,Black |
| 92929A260CHN | 6 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A261CHN | 8 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A253CHN | 10 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A254CHN | 12 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A255CHN | 16 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A256CHN | 20 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A257CHN | 25 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A258CHN | 30 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A259CHN | 35 | M4 × 0.7 mm | 9.4 | 2.7 | Off-White,Black |
| 92929A269CHN | 8 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A262CHN | 10 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A263CHN | 12 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A264CHN | 16 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A265CHN | 20 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A266CHN | 25 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A267CHN | 30 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A268CHN | 40 | M5 × 0.8 mm | 10.4 | 2.7 | Off-White,Black |
| 92929A280CHN | 8 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A270CHN | 10 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A271CHN | 12 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A272CHN | 16 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A273CHN | 20 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A274CHN | 25 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A275CHN | 30 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A276CHN | 35 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A277CHN | 40 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A278CHN | 45 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A279CHN | 50 | M6 × 1 mm | 12.6 | 3.3 | Off-White,Black |
| 92929A281CHN | 16 | M8 × 1.25 mm | 17.3 | 4.6 | Off-White,Black |
| 92929A282CHN | 20 | M8 × 1.25 mm | 17.3 | 4.6 | Off-White,Black |
| 92929A283CHN | 25 | M8 × 1.25 mm | 17.3 | 4.6 | Off-White,Black |
| 92929A284CHN | 30 | M8 × 1.25 mm | 17.3 | 4.6 | Off-White,Black |
| 92929A285CHN | 50 | M8 × 1.25 mm | 17.3 | 4.6 | Off-White,Black |
| Impact-Resistant Polycarbonate Slotted Flat Head Screws |
| Polycarbonate Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 93140A350CHN | 1/8" | 2-56 | 0.172" | 0.051" | Clear |
| 93140A354CHN | 3/16" | 2-56 | 0.172" | 0.051" | Clear |
| 93140A358CHN | 1/4" | 2-56 | 0.172" | 0.051" | Clear |
| 93140A361CHN | 3/8" | 2-56 | 0.172" | 0.051" | Clear |
| 93140A364CHN | 1/2" | 2-56 | 0.172" | 0.051" | Clear |
| 93140A404CHN | 3/16" | 4-40 | 0.225" | 0.067" | Clear |
| 93140A706CHN | 1/4" | 4-40 | 0.225" | 0.067" | Clear |
| 93140A708CHN | 3/8" | 4-40 | 0.225" | 0.067" | Clear |
| 93140A709CHN | 1/2" | 4-40 | 0.225" | 0.067" | Clear |
| 93140A744CHN | 1/4" | 6-32 | 0.279" | 0.083" | Clear |
| 93140A746CHN | 3/8" | 6-32 | 0.279" | 0.083" | Clear |
| 93140A748CHN | 1/2" | 6-32 | 0.279" | 0.083" | Clear |
| 93140A766CHN | 1/4" | 8-32 | 0.332" | 0.100" | Clear |
| 93140A769CHN | 3/8" | 8-32 | 0.332" | 0.100" | Clear |
| 93140A110CHN | 1/2" | 8-32 | 0.332" | 0.100" | Clear |
| 93140A521CHN | 3/4" | 8-32 | 0.312" | 0.100" | Clear |
| 93140A522CHN | 1/2" | 10-24 | 0.365" | 0.116" | Clear |
| 93140A523CHN | 3/4" | 10-24 | 0.365" | 0.116" | Clear |
| 93140A524CHN | 1" | 10-24 | 0.365" | 0.116" | Clear |
| 93140A773CHN | 1/4" | 10-32 | 0.385" | 0.116" | Clear |
| 93140A775CHN | 3/8" | 10-32 | 0.385" | 0.116" | Clear |
| 93140A778CHN | 1/2" | 10-32 | 0.385" | 0.116" | Clear |
| 93140A781CHN | 5/8" | 10-32 | 0.385" | 0.116" | Clear |
| 93140A784CHN | 3/4" | 10-32 | 0.385" | 0.116" | Clear |
| 93140A787CHN | 1" | 10-32 | 0.385" | 0.116" | Clear |
| 93140A120CHN | 1/2" | 1/4"-20 | 0.507" | 0.153" | Clear |
| 93140A130CHN | 5/8" | 1/4"-20 | 0.507" | 0.153" | Clear |
| 93140A839CHN | 3/4" | 1/4"-20 | 0.507" | 0.153" | Clear |
| 93140A846CHN | 1" | 1/4"-20 | 0.507" | 0.153" | Clear |
| 93140A140CHN | 1 1/4" | 1/4"-20 | 0.507" | 0.153" | Clear |
| 93140A150CHN | 1 1/2" | 1/4"-20 | 0.507" | 0.153" | Clear |
| 93140A525CHN | 2" | 1/4"-20 | 0.48" | 0.153" | Clear |
| 93140A526CHN | 2 1/2" | 1/4"-20 | 0.48" | 0.153" | Clear |
| 93140A527CHN | 1" | 3/8"-16 | 0.725" | 0.230" | Clear |
| 93140A528CHN | 1 1/2" | 3/8"-16 | 0.725" | 0.230" | Clear |
| 93140A529CHN | 2" | 3/8"-16 | 0.725" | 0.230" | Clear |
| Metric Impact-Resistant Polycarbonate Slotted Flat Head Screws |
| Polycarbonate Plastic | |||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia./mm | Head Ht./mm | Color |
| 93140A160CHN | 5 | M3 × 0.5 mm | 6.3 | 1.7 | Clear |
| 93140A170CHN | 6 | M3 × 0.5 mm | 6.3 | 1.7 | Clear |
| 93140A180CHN | 8 | M3 × 0.5 mm | 6.3 | 1.7 | Clear |
| 93140A190CHN | 10 | M3 × 0.5 mm | 6.3 | 1.7 | Clear |
| 93140A210CHN | 12 | M3 × 0.5 mm | 6.3 | 1.7 | Clear |
| 93140A220CHN | 6 | M4 × 0.7 mm | 9.4 | 2.7 | Clear |
| 93140A230CHN | 8 | M4 × 0.7 mm | 9.4 | 2.7 | Clear |
| 93140A240CHN | 10 | M4 × 0.7 mm | 9.4 | 2.7 | Clear |
| 93140A250CHN | 12 | M4 × 0.7 mm | 9.4 | 2.7 | Clear |
| 93140A260CHN | 16 | M4 × 0.7 mm | 9.4 | 2.7 | Clear |
| 93140A270CHN | 8 | M5 × 0.8 mm | 10.4 | 2.7 | Clear |
| 93140A280CHN | 10 | M5 × 0.8 mm | 10.4 | 2.7 | Clear |
| 93140A290CHN | 12 | M5 × 0.8 mm | 10.4 | 2.7 | Clear |
| 93140A330CHN | 16 | M5 × 0.8 mm | 10.4 | 2.7 | Clear |
| 93140A340CHN | 20 | M5 × 0.8 mm | 10.4 | 2.7 | Clear |
| 93140A360CHN | 12 | M6 × 1 mm | 12.6 | 3.3 | Clear |
| 93140A370CHN | 16 | M6 × 1 mm | 12.6 | 3.3 | Clear |
| 93140A380CHN | 20 | M6 × 1 mm | 12.6 | 3.3 | Clear |
| 93140A390CHN | 25 | M6 × 1 mm | 12.6 | 3.3 | Clear |
| 93140A410CHN | 30 | M6 × 1 mm | 12.6 | 3.3 | Clear |
| 93140A420CHN | 16 | M8 × 1.25 mm | 17.3 | 4.6 | Clear |
| 93140A430CHN | 20 | M8 × 1.25 mm | 17.3 | 4.6 | Clear |
| 93140A440CHN | 25 | M8 × 1.25 mm | 17.3 | 4.6 | Clear |
| 93140A450CHN | 30 | M8 × 1.25 mm | 17.3 | 4.6 | Clear |
| Extreme-Temperature Chemical-Resistant PTFE Slotted Flat Head Screws |
| PTFE Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 94701A210CHN | 1/4" | 6-32 | 0.279" | 0.083" | White |
| 94701A226CHN | 3/8" | 6-32 | 0.279" | 0.083" | White |
| 94701A148CHN | 1/2" | 6-32 | 0.279" | 0.083" | White |
| 94701A151CHN | 3/4" | 6-32 | 0.279" | 0.083" | White |
| 94701A154CHN | 1" | 6-32 | 0.279" | 0.083" | White |
| 94701A306CHN | 1/4" | 8-32 | 0.332" | 0.100" | White |
| 94701A317CHN | 3/8" | 8-32 | 0.332" | 0.100" | White |
| 94701A194CHN | 1/2" | 8-32 | 0.332" | 0.100" | White |
| 94701A198CHN | 3/4" | 8-32 | 0.332" | 0.100" | White |
| 94701A199CHN | 1" | 8-32 | 0.332" | 0.100" | White |
| 94701A407CHN | 1/4" | 10-32 | 0.385" | 0.116" | White |
| 94701A419CHN | 3/8" | 10-32 | 0.385" | 0.116" | White |
| 94701A829CHN | 1/2" | 10-32 | 0.385" | 0.116" | White |
| 94701A832CHN | 3/4" | 10-32 | 0.385" | 0.116" | White |
| 94701A833CHN | 1" | 10-32 | 0.385" | 0.116" | White |
| 94701A537CHN | 1/2" | 1/4"-20 | 0.507" | 0.153" | White |
| 94701A540CHN | 3/4" | 1/4"-20 | 0.507" | 0.153" | White |
| 94701A542CHN | 1" | 1/4"-20 | 0.507" | 0.153" | White |
| High-Strength High-Temperature PEEK Slotted Flat Head Screws |
| PEEK Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 96367A651CHN | 3/8" | 6-32 | 0.268" | 0.082" | Beige |
| 96367A664CHN | 1/2" | 6-32 | 0.268" | 0.082" | Beige |
| 96367A677CHN | 3/4" | 6-32 | 0.268" | 0.082" | Beige |
| 96367A754CHN | 3/8" | 8-32 | 0.314" | 0.096" | Beige |
| 96367A767CHN | 1/2" | 8-32 | 0.314" | 0.096" | Beige |
| 96367A780CHN | 3/4" | 8-32 | 0.314" | 0.096" | Beige |
| 96367A857CHN | 3/8" | 10-32 | 0.370" | 0.100" | Beige |
| 96367A871CHN | 1/2" | 10-32 | 0.370" | 0.100" | Beige |
| 96367A885CHN | 3/4" | 10-32 | 0.370" | 0.100" | Beige |
| Nylon Shoulder Screws |
| Part NO. | Shoulder Lg. | Shoulder Dia. | Thread Specifications | Thread Lg. | Head Dia. | Head Ht. | Drive Size | Color |
| 93897A236CHN | 1/4" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A254CHN | 3/8" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A263CHN | 1/2" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A271CHN | 5/8" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A279CHN | 3/4" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A288CHN | 1" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A296CHN | 1 1/4" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A305CHN | 1 1/2" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A313CHN | 1 3/4" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A320CHN | 2" | 1/4" | 10-24 | 3/8" | 3/8" | 3/16" | 1/8" | Black,Off-White |
| 93897A401CHN | 1/4" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A410CHN | 5/16" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A417CHN | 3/8" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A425CHN | 1/2" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A433CHN | 5/8" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A440CHN | 3/4" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A448CHN | 1" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A464CHN | 1 1/2" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A480CHN | 2" | 5/16" | 1/4"-20 | 7/16" | 7/16" | 7/32" | 5/32" | Black,Off-White |
| 93897A517CHN | 1/4" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A525CHN | 3/8" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A534CHN | 1/2" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A542CHN | 5/8" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A551CHN | 3/4" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A559CHN | 1" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A567CHN | 1 1/4" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A575CHN | 1 1/2" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A580CHN | 1 3/4" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A588CHN | 2" | 3/8" | 5/16"-18 | 1/2" | 9/16" | 1/4" | 3/16" | Black,Off-White |
| 93897A658CHN | 3/8" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A664CHN | 1/2" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A671CHN | 5/8" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A677CHN | 3/4" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A686CHN | 1" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A694CHN | 1 1/4" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A701CHN | 1 1/2" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A708CHN | 1 3/4" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| 93897A716CHN | 2" | 1/2" | 3/8"-16 | 5/8" | 3/4" | 5/16" | 1/4" | Black,Off-White |
| Plastic Flat-Tip Set Screws |
| Nylon Plastic | ||||
| Part NO. | Lg. | Thread Specifications | Drive Size | Color |
| 94564A226CHN | 3/32" | 4-40 | 3/64" | Off-White |
| 94564A227CHN | 1/8" | 4-40 | 3/64" | Off-White |
| 94564A228CHN | 9/64" | 4-40 | 3/64" | Off-White |
| 94564A229CHN | 5/32" | 4-40 | 3/64" | Off-White |
| 94564A233CHN | 3/16" | 4-40 | 3/64" | Off-White |
| 94564A235CHN | 1/4" | 4-40 | 3/64" | Off-White |
| 94564A237CHN | 9/32" | 4-40 | 3/64" | Off-White |
| 94564A241CHN | 5/16" | 4-40 | 3/64" | Off-White |
| 94564A242CHN | 3/8" | 4-40 | 3/64" | Off-White |
| 94564A244CHN | 7/16" | 4-40 | 3/64" | Off-White |
| 94564A245CHN | 1/2" | 4-40 | 3/64" | Off-White |
| 94564A246CHN | 9/16" | 4-40 | 3/64" | Off-White |
| 94564A253CHN | 5/8" | 4-40 | 3/64" | Off-White |
| 94564A258CHN | 11/16" | 4-40 | 3/64" | Off-White |
| 94564A259CHN | 3/4" | 4-40 | 3/64" | Off-White |
| 94564A261CHN | 7/8" | 4-40 | 3/64" | Off-White |
| 94564A262CHN | 1" | 4-40 | 3/64" | Off-White |
| 94564A266CHN | 1 1/8" | 4-40 | 3/64" | Off-White |
| 94564A271CHN | 1 3/16" | 4-40 | 3/64" | Off-White |
| 94564A273CHN | 1 1/4" | 4-40 | 3/64" | Off-White |
| 94564A277CHN | 1 3/8" | 4-40 | 3/64" | Off-White |
| 94564A279CHN | 1 1/2" | 4-40 | 3/64" | Off-White |
| 94564A301CHN | 1 5/8" | 4-40 | 3/64" | Off-White |
| 94564A311CHN | 1 3/4" | 4-40 | 3/64" | Off-White |
| 94564A313CHN | 3/32" | 6-32 | 1/16" | Off-White |
| 94564A021CHN | 1/8" | 6-32 | 1/16" | Off-White |
| 94564A332CHN | 5/32" | 6-32 | 1/16" | Off-White |
| 94564A022CHN | 3/16" | 6-32 | 1/16" | Off-White |
| 94564A023CHN | 1/4" | 6-32 | 1/16" | Off-White |
| 94564A339CHN | 5/16" | 6-32 | 1/16" | Off-White |
| 94564A025CHN | 3/8" | 6-32 | 1/16" | Off-White |
| 94564A340CHN | 7/16" | 6-32 | 1/16" | Off-White |
| 94564A027CHN | 1/2" | 6-32 | 1/16" | Off-White |
| 94564A341CHN | 9/16" | 6-32 | 1/16" | Off-White |
| 94564A384CHN | 5/8" | 6-32 | 1/16" | Off-White |
| 94564A393CHN | 11/16" | 6-32 | 1/16" | Off-White |
| 94564A394CHN | 3/4" | 6-32 | 1/16" | Off-White |
| 94564A398CHN | 7/8" | 6-32 | 1/16" | Off-White |
| 94564A402CHN | 1" | 6-32 | 1/16" | Off-White |
| 94564A428CHN | 1 1/8" | 6-32 | 1/16" | Off-White |
| 94564A442CHN | 1 1/4" | 6-32 | 1/16" | Off-White |
| 94564A449CHN | 1 1/2" | 6-32 | 1/16" | Off-White |
| 94564A450CHN | 1 5/8" | 6-32 | 1/16" | Off-White |
| 94564A451CHN | 1 3/4" | 6-32 | 1/16" | Off-White |
| 94564A455CHN | 1 7/8" | 6-32 | 1/16" | Off-White |
| 94564A458CHN | 2" | 6-32 | 1/16" | Off-White |
| 94564A464CHN | 2 1/4" | 6-32 | 1/16" | Off-White |
| 94564A466CHN | 1/4" | 6-40 | 1/16" | Off-White |
| 94564A478CHN | 3/8" | 6-40 | 1/16" | Off-White |
| 94564A480CHN | 3/4" | 6-40 | 1/16" | Off-White |
| 94564A481CHN | 1" | 6-40 | 1/16" | Off-White |
| 94564A032CHN | 1/8" | 8-32 | 5/64" | Off-White |
| 94564A034CHN | 3/16" | 8-32 | 5/64" | Off-White |
| 94564A036CHN | 1/4" | 8-32 | 5/64" | Off-White |
| 94564A487CHN | 9/32" | 8-32 | 5/64" | Off-White |
| 94564A489CHN | 5/16" | 8-32 | 5/64" | Off-White |
| 94564A037CHN | 3/8" | 8-32 | 5/64" | Off-White |
| 94564A492CHN | 7/16" | 8-32 | 5/64" | Off-White |
| 94564A039CHN | 1/2" | 8-32 | 5/64" | Off-White |
| 94564A496CHN | 5/8" | 8-32 | 5/64" | Off-White |
| 94564A502CHN | 3/4" | 8-32 | 5/64" | Off-White |
| 94564A519CHN | 7/8" | 8-32 | 5/64" | Off-White |
| 94564A587CHN | 1" | 8-32 | 5/64" | Off-White |
| 94564A622CHN | 1 1/8" | 8-32 | 5/64" | Off-White |
| 94564A652CHN | 1 1/4" | 8-32 | 5/64" | Off-White |
| 94564A665CHN | 1 3/8" | 8-32 | 5/64" | Off-White |
| 94564A672CHN | 1 1/2" | 8-32 | 5/64" | Off-White |
| 94564A679CHN | 1 3/4" | 8-32 | 5/64" | Off-White |
| 94564A731CHN | 1 7/8" | 8-32 | 5/64" | Off-White |
| 94564A738CHN | 2" | 8-32 | 5/64" | Off-White |
| 94564A104CHN | 1/4" | 10-24 | 3/32" | Off-White |
| 94564A108CHN | 5/16" | 10-24 | 3/32" | Off-White |
| 94564A114CHN | 3/8" | 10-24 | 3/32" | Off-White |
| 94564A118CHN | 1/2" | 10-24 | 3/32" | Off-White |
| 94564A119CHN | 5/8" | 10-24 | 3/32" | Off-White |
| 94564A120CHN | 3/4" | 10-24 | 3/32" | Off-White |
| 94564A144CHN | 1" | 10-24 | 3/32" | Off-White |
| 94564A145CHN | 1 1/4" | 10-24 | 3/32" | Off-White |
| 94564A148CHN | 1 1/2" | 10-24 | 3/32" | Off-White |
| 94564A150CHN | 1/8" | 10-32 | 3/32" | Off-White |
| 94564A155CHN | 3/16" | 10-32 | 3/32" | Off-White |
| 94564A045CHN | 1/4" | 10-32 | 3/32" | Off-White |
| 94564A156CHN | 5/16" | 10-32 | 3/32" | Off-White |
| 94564A046CHN | 3/8" | 10-32 | 3/32" | Off-White |
| 94564A159CHN | 7/16" | 10-32 | 3/32" | Off-White |
| 94564A047CHN | 1/2" | 10-32 | 3/32" | Off-White |
| 94564A160CHN | 5/8" | 10-32 | 3/32" | Off-White |
| 94564A161CHN | 3/4" | 10-32 | 3/32" | Off-White |
| 94564A178CHN | 13/16" | 10-32 | 3/32" | Off-White |
| 94564A181CHN | 7/8" | 10-32 | 3/32" | Off-White |
| 94564A183CHN | 1" | 10-32 | 3/32" | Off-White |
| 94564A193CHN | 1 1/16" | 10-32 | 3/32" | Off-White |
| 94564A197CHN | 1 1/4" | 10-32 | 3/32" | Off-White |
| 94564A208CHN | 1 1/2" | 10-32 | 3/32" | Off-White |
| 94564A217CHN | 1 3/4" | 10-32 | 3/32" | Off-White |
| 94564A223CHN | 2" | 10-32 | 3/32" | Off-White |
| 94564A753CHN | 3/16" | 1/4"-20 | 1/8" | Off-White |
| 94564A065CHN | 1/4" | 1/4"-20 | 1/8" | Off-White |
| 94564A075CHN | 5/16" | 1/4"-20 | 1/8" | Off-White |
| 94564A070CHN | 3/8" | 1/4"-20 | 1/8" | Off-White |
| 94564A080CHN | 1/2" | 1/4"-20 | 1/8" | Off-White |
| 94564A085CHN | 5/8" | 1/4"-20 | 1/8" | Off-White |
| 94564A090CHN | 3/4" | 1/4"-20 | 1/8" | Off-White |
| 94564A765CHN | 7/8" | 1/4"-20 | 1/8" | Off-White |
| 94564A095CHN | 1" | 1/4"-20 | 1/8" | Off-White |
| 94564A773CHN | 1 1/4" | 1/4"-20 | 1/8" | Off-White |
| 94564A100CHN | 1 1/2" | 1/4"-20 | 1/8" | Off-White |
| 94564A105CHN | 1 3/4" | 1/4"-20 | 1/8" | Off-White |
| 94564A110CHN | 2" | 1/4"-20 | 1/8" | Off-White |
| 94564A115CHN | 2 1/2" | 1/4"-20 | 1/8" | Off-White |
| 94564A205CHN | 3/16" | 1/4"-28 | 1/8" | Off-White |
| 94564A210CHN | 1/4" | 1/4"-28 | 1/8" | Off-White |
| 94564A215CHN | 3/8" | 1/4"-28 | 1/8" | Off-White |
| 94564A220CHN | 5/8" | 1/4"-28 | 1/8" | Off-White |
| 94564A225CHN | 3/4" | 1/4"-28 | 1/8" | Off-White |
| 94564A230CHN | 1" | 1/4"-28 | 1/8" | Off-White |
| 94564A845CHN | 3/8" | 5/16"-18 | 5/32" | Off-White |
| 94564A305CHN | 1/2" | 5/16"-18 | 5/32" | Off-White |
| 94564A310CHN | 3/4" | 5/16"-18 | 5/32" | Off-White |
| 94564A315CHN | 1" | 5/16"-18 | 5/32" | Off-White |
| 94564A405CHN | 1/2" | 3/8"-16 | 3/16" | Off-White |
| 94564A806CHN | 5/8" | 3/8"-16 | 3/16" | Off-White |
| 94564A410CHN | 3/4" | 3/8"-16 | 3/16" | Off-White |
| 94564A415CHN | 1" | 3/8"-16 | 3/16" | Off-White |
| 94564A505CHN | 1/2" | 1/2"-13 | 1/4" | Off-White |
| 94564A510CHN | 3/4" | 1/2"-13 | 1/4" | Off-White |
| 94564A515CHN | 1" | 1/2"-13 | 1/4" | Off-White |
| 94564A520CHN | 1 1/4" | 1/2"-13 | 1/4" | Off-White |
| 94564A605CHN | 1/2" | 5/8"-11 | 5/16" | Off-White |
| 94564A610CHN | 3/4" | 5/8"-11 | 5/16" | Off-White |
| 94564A615CHN | 1" | 5/8"-11 | 5/16" | Off-White |
| 94564A620CHN | 1 1/2" | 5/8"-11 | 5/16" | Off-White |
| 94564A705CHN | 1/4" | 3/4"-10 | 3/8" | Off-White |
| Slotted Plastic Flat-Tip Set Screws |
| Nylon Plastic | |||
| Part NO. | Lg. | Thread Specifications | Color |
| 95862A103CHN | 11/64" | 4-40 | Off-White |
| 95862A106CHN | 19/64" | 4-40 | Off-White |
| 95862A108CHN | 27/64" | 4-40 | Off-White |
| 95862A115CHN | 1 3/64" | 4-40 | Off-White |
| 95862A142CHN | 3/16" | 6-32 | Off-White |
| 95862A144CHN | 5/16" | 6-32 | Off-White |
| 95862A146CHN | 7/16" | 6-32 | Off-White |
| 95862A148CHN | 9/16" | 6-32 | Off-White |
| 95862A188CHN | 3/16" | 8-32 | Off-White |
| 95862A190CHN | 5/16" | 8-32 | Off-White |
| 95862A192CHN | 7/16" | 8-32 | Off-White |
| 95862A194CHN | 9/16" | 8-32 | Off-White |
| 95862A253CHN | 5/16" | 10-32 | Off-White |
| 95862A254CHN | 7/16" | 10-32 | Off-White |
| 95862A255CHN | 9/16" | 10-32 | Off-White |
| 95862A258CHN | 1 1/16" | 10-32 | Off-White |
| 95862A533CHN | 11/32" | 1/4"-20 | Off-White |
| 95862A537CHN | 19/32" | 1/4"-20 | Off-White |
| 95862A540CHN | 27/32" | 1/4"-20 | Off-White |
| 95862A542CHN | 1 3/32" | 1/4"-20 | Off-White |
| Metric Slotted Plastic Flat-Tip Set Screws |
| Nylon Plastic | |||
| Part NO. | Lg./mm | Thread Specifications | Color |
| 95862A121CHN | 8 | M4 × 0.7 mm | Off-White |
| 95862A122CHN | 10 | M4 × 0.7 mm | Off-White |
| 95862A123CHN | 5 | M5 × 0.8 mm | Off-White |
| 95862A124CHN | 6 | M5 × 0.8 mm | Off-White |
| 95862A125CHN | 8 | M5 × 0.8 mm | Off-White |
| 95862A126CHN | 10 | M5 × 0.8 mm | Off-White |
| 95862A127CHN | 6 | M6 × 1 mm | Off-White |
| 95862A128CHN | 8 | M6 × 1 mm | Off-White |
| 95862A129CHN | 10 | M6 × 1 mm | Off-White |
| 95862A131CHN | 12 | M6 × 1 mm | Off-White |
| 95862A132CHN | 10 | M8 × 1.25 mm | Off-White |
| 95862A133CHN | 12 | M8 × 1.25 mm | Off-White |
| Nylon Raised-Head Thumb Screws |
| Nylon Plastic | |||||||
| Part NO. | Lg./mm | Thread Specifications | Head Dia. | Head Ht. | Collar Dia. | Collar Ht. | Color |
| 94323A581CHN | 1/4" | 6-32 | 23/64" | 1/8" | 19/64" | 5/32" | Black,Off-White |
| 94323A583CHN | 3/8" | 6-32 | 23/64" | 1/8" | 19/64" | 5/32" | Black,Off-White |
| 94323A585CHN | 1/2" | 6-32 | 23/64" | 1/8" | 19/64" | 5/32" | Black,Off-White |
| 94323A587CHN | 3/4" | 6-32 | 23/64" | 1/8" | 19/64" | 5/32" | Black,Off-White |
| 94323A589CHN | 1" | 6-32 | 23/64" | 1/8" | 19/64" | 5/32" | Black,Off-White |
| 94323A591CHN | 3/16" | 8-32 | 27/64" | 9/64" | 11/32" | 11/64" | Black,Off-White |
| 94323A592CHN | 3/8" | 8-32 | 27/64" | 9/64" | 11/32" | 11/64" | Black,Off-White |
| 94323A594CHN | 1/2" | 8-32 | 27/64" | 9/64" | 11/32" | 11/64" | Black,Off-White |
| 94323A596CHN | 3/4" | 8-32 | 27/64" | 9/64" | 11/32" | 11/64" | Black,Off-White |
| 94323A598CHN | 1" | 8-32 | 27/64" | 9/64" | 11/32" | 11/64" | Black,Off-White |
| 94323A727CHN | 3/8" | 10-32 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A729CHN | 1/2" | 10-32 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A731CHN | 3/4" | 10-32 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A733CHN | 1" | 10-32 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A735CHN | 2" | 10-32 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A611CHN | 1/2" | 10-24 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A613CHN | 3/4" | 10-24 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A615CHN | 1" | 10-24 | 27/64" | 9/64" | 21/64" | 3/16" | Black,Off-White |
| 94323A837CHN | 1/2" | 1/4"-20 | 35/64" | 5/32" | 27/64" | 7/32" | Black,Off-White |
| 94323A840CHN | 3/4" | 1/4"-20 | 35/64" | 5/32" | 27/64" | 7/32" | Black,Off-White |
| 94323A841CHN | 1" | 1/4"-20 | 35/64" | 5/32" | 27/64" | 7/32" | Black,Off-White |
| 94323A843CHN | 1 1/4" | 1/4"-20 | 35/64" | 5/32" | 27/64" | 7/32" | Black,Off-White |
| 94323A845CHN | 1 1/2" | 1/4"-20 | 35/64" | 5/32" | 27/64" | 7/32" | Black,Off-White |
| 94323A921CHN | 1/2" | 5/16"-18 | 39/64" | 11/64" | 1/2" | 7/32" | Black,Off-White |
| 94323A922CHN | 1" | 5/16"-18 | 39/64" | 11/64" | 1/2" | 7/32" | Black,Off-White |
| 94323A923CHN | 1 1/2" | 5/16"-18 | 39/64" | 11/64" | 1/2" | 7/32" | Black,Off-White |
| 94323A924CHN | 2" | 5/16"-18 | 39/64" | 11/64" | 1/2" | 7/32" | Black,Off-White |
| 94323A952CHN | 1/2" | 3/8"-16 | 11/16" | 3/16" | 35/64" | 1/4" | Black,Off-White |
| 94323A958CHN | 1" | 3/8"-16 | 11/16" | 3/16" | 35/64" | 1/4" | Black,Off-White |
| 94323A963CHN | 1 1/2" | 3/8"-16 | 11/16" | 3/16" | 35/64" | 1/4" | Black,Off-White |
| 94323A967CHN | 2" | 3/8"-16 | 11/16" | 3/16" | 35/64" | 1/4" | Black,Off-White |
| High-Strength Glass-Filled Nylon Raised-Head Thumb Screws |
| Glass-Filled Nylon Plastic | |||||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Collar Dia. | Collar Ht. | Color |
| 90462A200CHN | 1/4" | 6-32 | 23/64" | 9/32" | 19/64" | 5/32" | Off-White |
| 90462A210CHN | 3/8" | 6-32 | 23/64" | 9/32" | 19/64" | 5/32" | Off-White |
| 90462A220CHN | 1/2" | 6-32 | 23/64" | 9/32" | 19/64" | 5/32" | Off-White |
| 90462A330CHN | 3/8" | 8-32 | 27/64" | 5/16" | 3/8" | 11/64" | Off-White |
| 90462A340CHN | 1/2" | 8-32 | 27/64" | 5/16" | 3/8" | 11/64" | Off-White |
| 90462A350CHN | 3/4" | 8-32 | 27/64" | 5/16" | 3/8" | 11/64" | Off-White |
| 90462A500CHN | 3/8" | 10-32 | 27/64" | 21/64" | 21/64" | 3/16" | Off-White |
| 90462A510CHN | 1/2" | 10-32 | 27/64" | 21/64" | 21/64" | 3/16" | Off-White |
| 90462A520CHN | 3/4" | 10-32 | 27/64" | 21/64" | 21/64" | 3/16" | Off-White |
| 90462A530CHN | 1" | 10-32 | 27/64" | 21/64" | 21/64" | 3/16" | Off-White |
| 90462A540CHN | 1 1/2" | 10-32 | 27/64" | 21/64" | 21/64" | 3/16" | Off-White |
| 90462A650CHN | 1/2" | 1/4"-20 | 35/64" | 23/64" | 31/64" | 13/64" | Off-White |
| 90462A660CHN | 3/4" | 1/4"-20 | 35/64" | 23/64" | 31/64" | 13/64" | Off-White |
| 90462A670CHN | 1" | 1/4"-20 | 35/64" | 23/64" | 31/64" | 13/64" | Off-White |
| 90462A680CHN | 1 1/2" | 1/4"-20 | 35/64" | 23/64" | 31/64" | 13/64" | Off-White |
| Nylon Thumb Screws with Slotted Drive |
| Nylon Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 94320A331CHN | 1/4" | 4-40 | 21/64" | 7/32" | Black,Off-White |
| 94320A346CHN | 1/4" | 6-32 | 11/32" | 1/4" | Black,Off-White |
| 94320A348CHN | 1/2" | 6-32 | 11/32" | 1/4" | Black,Off-White |
| 94320A351CHN | 3/4" | 6-32 | 11/32" | 1/4" | Black,Off-White |
| 94320A353CHN | 1" | 6-32 | 11/32" | 1/4" | Black,Off-White |
| 94320A390CHN | 3/16" | 8-32 | 25/64" | 9/32" | Black,Off-White |
| 94320A393CHN | 3/8" | 8-32 | 25/64" | 9/32" | Black,Off-White |
| 94320A395CHN | 1/2" | 8-32 | 25/64" | 9/32" | Black,Off-White |
| 94320A397CHN | 3/4" | 8-32 | 25/64" | 9/32" | Black,Off-White |
| 94320A399CHN | 1" | 8-32 | 25/64" | 9/32" | Black,Off-White |
| 94320A403CHN | 1 1/4" | 8-32 | 25/64" | 9/32" | Black,Off-White |
| 94320A430CHN | 1/4" | 10-32 | 13/32" | 5/16" | Black,Off-White |
| 94320A440CHN | 3/8" | 10-32 | 13/32" | 5/16" | Black,Off-White |
| 94320A445CHN | 1/2" | 10-32 | 13/32" | 5/16" | Black,Off-White |
| 94320A448CHN | 3/4" | 10-32 | 13/32" | 5/16" | Black,Off-White |
| 94320A973CHN | 1" | 10-32 | 13/32" | 5/16" | Black,Off-White |
| 94320A976CHN | 1 1/2" | 10-32 | 13/32" | 5/16" | Black,Off-White |
| 94320A737CHN | 1/2" | 1/4"-20 | 31/64" | 5/16" | Black,Off-White |
| 94320A740CHN | 3/4" | 1/4"-20 | 31/64" | 5/16" | Black,Off-White |
| 94320A742CHN | 1" | 1/4"-20 | 31/64" | 5/16" | Black,Off-White |
| 94320A744CHN | 1 1/4" | 1/4"-20 | 31/64" | 5/16" | Black,Off-White |
| 94320A746CHN | 1 1/2" | 1/4"-20 | 31/64" | 5/16" | Black,Off-White |
| 94320A748CHN | 1 3/4" | 1/4"-20 | 31/64" | 5/16" | Black,Off-White |
| Low-Profile Nylon Thumb Screws |
| Nylon Plastic | |||||
| Part NO. | Lg. | Thread Specifications | Head Dia. | Head Ht. | Color |
| 94955A010CHN | 3/8" | 6-32 | 3/8" | 1/8" | Black |
| 94955A015CHN | 1/2" | 6-32 | 3/8" | 1/8" | Black |
| 94955A020CHN | 3/8" | 8-32 | 3/8" | 3/16" | Black |
| 94955A025CHN | 1/2" | 8-32 | 3/8" | 3/16" | Black |
| 94955A030CHN | 3/4" | 8-32 | 3/8" | 3/16" | Black |
| 94955A035CHN | 1/2" | 10-24 | 3/8" | 3/16" | Black |
| 94955A040CHN | 3/4" | 10-24 | 1/2" | 3/16" | Black |
| 94955A050CHN | 1/2" | 10-32 | 3/8" | 3/16" | Black |
| 94955A055CHN | 3/4" | 10-32 | 1/2" | 3/16" | Black |
| 94955A065CHN | 1" | 10-32 | 3/4" | 3/16" | Black |
| 94955A075CHN | 3/4" | 1/4"-20 | 3/4" | 3/16" | Black |
| 94955A080CHN | 1" | 1/4"-20 | 3/4" | 3/16" | Black |
| 94955A085CHN | 1 1/4" | 1/4"-20 | 3/4" | 3/16" | Black |
| 94955A090CHN | 1" | 5/16"-18 | 3/4" | 1/4" | Black |
| 94955A095CHN | 1 1/4" | 5/16"-18 | 3/4" | 1/4" | Black |
| Plastic Press-Fit Binding Barrels and Screws |
| Polyethylene Plastic | |||||||||
| Barrel | Screw | ||||||||
| Part NO. | For Min. Material Thick. |
Lg. | Dia. | Head Dia. | Head Ht. | Lg. | Head Dia. | Head Ht. | Color |
| 90249A610CHN | 1/4" | 1/4" | 1/4" | 3/8" | 3/32" | 1/4" | 3/8" | 3/32" | Off-White,Black |
| 90249A320CHN | 3/8" | 3/8" | 1/4" | 3/8" | 3/32" | 3/8" | 3/8" | 3/32" | Black |
| 90249A630CHN | 1/2" | 1/2" | 1/4" | 3/8" | 3/32" | 3/8" | 3/8" | 3/32" | Off-White,Black |
| 90249A720CHN | 1" | 1" | 1/4" | 3/8" | 3/32" | 3/8" | 3/8" | 3/32" | Off-White,Black |
| 90249A730CHN | 1 1/4" | 1 1/4" | 1/4" | 3/8" | 3/32" | 3/8" | 3/8" | 3/32" | Off-White,Black |
| 90249A740CHN | 1 1/2" | 1 1/2" | 1/4" | 3/8" | 3/32" | 3/8" | 3/8" | 3/32" | Off-White,Black |
| 90249A750CHN | 2" | 2" | 1/4" | 3/8" | 3/32" | 3/8" | 3/8" | 3/32" | Off-White,Black |
| Plastic Press-Fit Low-Profile Binding Barrels and Caps |
| Barrels | |||||||
| Barrel | |||||||
| Part NO. | For Material Thick. |
Lg. | Dia. | Head Dia. | Head Ht. | Drive Style | Color |
| 93120A100CHN | 1/2" | 1/2" | 7/32" | 7/16" | 5/64" | Slotted | Black |
| 93120A105CHN | 5/8" | 5/8" | 7/32" | 7/16" | 5/64" | Slotted | Black |
| 93120A110CHN | 3/4" | 3/4" | 7/32" | 7/16" | 5/64" | Slotted | Black |
| 93120A115CHN | 1" | 1" | 7/32" | 7/16" | 5/64" | Slotted | Black |
| 93120A120CHN | 1 1/4" | 1 1/4" | 7/32" | 7/16" | 5/64" | Slotted | Black |
| 93120A125CHN | 1 1/2" | 1 1/2" | 7/32" | 7/16" | 5/64" | Slotted | Black |
| Barbed Caps | ||||
| Cap | ||||
| Part NO. | Lg. | Head Dia. | Head Ht. | Color |
| 93120A190CHN | 7/16" | 7/16" | 5/64" | Black |
| Threaded Caps | ||||
| Cap | ||||
| Part NO. | Lg. | Head Dia. | Head Ht. | Color |
| 93120A195CHN | 7/16" | 7/16" | 5/64" | Black |
| Rounded Head Quarter-Turn Captive Panel Screws with Rivet-Mount Nut |
| Acetal Plastic | ||||||||||
| Part NO. | For Total Panel Thick. | For Panel Hole Dia. Inner |
For Panel Hole Dia. Outer |
Head Dia. | Head Ht. | Lg. | Nut Wd. |
Shank Dia. |
Mounting Hole Ctr.-to-Ctr. |
Color |
| 94188A110CHN | 0.15" to 0.2" | 0.438" | 0.39" | 0.625" | 0.13" | 0.85" | 0.5" | 0.25" | 0.875" | Black |
| 94188A120CHN | 0.2" to 0.25" | 0.438" | 0.39" | 0.625" | 0.13" | 0.9" | 0.5" | 0.25" | 0.875" | Black |
| 94188A130CHN | 0.3" to 0.35" | 0.438" | 0.39" | 0.625" | 0.13" | 1" | 0.5" | 0.25" | 0.875" | Black |
| 94188A140CHN | 0.4" to 0.45" | 0.438" | 0.39" | 0.625" | 0.13" | 1.1" | 0.5" | 0.25" | 0.875" | Black |
| Wing Head Quarter-Turn Captive Panel Screws with Rivet-Mount Nut |
| Acetal Plastic | ||||||||||
| Part NO. | For Total Panel Thick. | For Panel Hole Dia. Inner |
For Panel Hole Dia. Outer |
Head Dia. | Head Ht. | Lg. | Nut Wd. |
Shank Dia. |
Mounting Hole Ctr.-to-Ctr. |
Color |
| 94188A210CHN | 0.25" to 0.3" | 0.438" | 0.39" | 1.1" | 0.43" | 0.95" | 0.5" | 0.25" | 0.875" | Black |
| 94188A220CHN | 0.3" to 0.35" | 0.438" | 0.39" | 1.1" | 0.43" | 1" | 0.5" | 0.25" | 0.875" | Black |
| 94188A230CHN | 0.4" to 0.45" | 0.438" | 0.39" | 1.1" | 0.43" | 1.1" | 0.5" | 0.25" | 0.875" | Black |
| Rounded Head Quarter-Turn Captive Panel Screws with Clip-On Nut |
| Acetal Plastic | ||||||||||
| Part NO. | For Panel Thick. Inner | For Panel Thick. Total | For Hole Dia. |
For Min. Space Between Panels |
Head Dia. | Head Ht. | Lg. | Nut Wd. |
Shank Dia. |
Color |
| 94188A310CHN | 0.03" to 0.09" | 0.19" to 0.24" | 0.512" | 0.04" | 0.625" | 0.13" | 0.85" | 0.945" | 0.25" | Black |
| 94188A320CHN | 0.03" to 0.09" | 0.24" to 0.29" | 0.512" | 0.04" | 0.625" | 0.13" | 0.9" | 0.945" | 0.25" | Black |
| 94188A330CHN | 0.03" to 0.09" | 0.34" to 0.39" | 0.512" | 0.04" | 0.625" | 0.13" | 1" | 0.945" | 0.25" | Black |
| 94188A340CHN | 0.03" to 0.09" | 0.44" to 0.49" | 0.512" | 0.04" | 0.625" | 0.13" | 1.1" | 0.945" | 0.25" | Black |
| Wing Head Quarter-Turn Captive Panel Screws with Clip-On Nut |
| Acetal Plastic | ||||||||||
| Part NO. | For Panel Thick. Inner | For Panel Thick. Total | For Hole Dia. |
Head Dia. | Head Ht. | Lg. | Nut Wd. |
Shank Dia. |
Retainer Material | Color |
| 94188A410CHN | 0.03" to 0.09" | 0.29" to 0.34" | 0.512" | 1.1" | 0.43" | 0.95" | 0.945" | 0.25" | Acetal Plastic | Black |
| 94188A420CHN | 0.03" to 0.09" | 0.34" to 0.39" | 0.512" | 1.1" | 0.43" | 1" | 0.945" | 0.25" | Acetal Plastic | Black |
| 94188A430CHN | 0.03" to 0.09" | 0.44" to 0.49" | 0.512" | 1.1" | 0.43" | 1.1" | 0.945" | 0.25" | Acetal Plastic | Black |
| Flanged Plastic Anchors with Screw for Block and Brick |
| Polypropylene Plastic | |||||||
| Part NO. | Screw Size | Screw Lg. | Lg. | Drill Bit Size |
Color | Temperature Range/°F | Strength/ lbs. Pull-Out |
| 97065A400CHN | No. 10 | 1 1/2" | 1 3/16" | 1/4" | Off-White | -20° to 210° | 160 |
| Flanged Plastic Anchors for Block and Brick |
| Polypropylene Plastic | ||||||
| Part NO. | Screw Size | Lg. | Drill Bit Size |
Color | Temperature Range/°F | Strength/ lbs. Pull-Out |
| 97065A100CHN | No. 4, No. 5, No. 6, No. 7, No. 8, No. 9 | 1" | 3/16" | Off-White | -20° to 210° | 120 |
| 97065A110CHN | No. 6, No. 7, No. 8, No. 9, No. 10, No. 11, No. 12 | 1 3/16" | 1/4" | Off-White | -20° to 210° | 160 |
| 97065A120CHN | No. 8, No. 9, No. 10, No. 11, No. 12, No. 14 | 1 5/8" | 5/16" | Off-White | -20° to 210° | 250 |
| Flush-Mount Plastic Anchors for Block and Brick |
| Polypropylene Plastic | ||||||
| Part NO. | Screw Size | Lg. | Drill Bit Size |
Color | Temperature Range/°F | Strength/ lbs. Pull-Out |
| 97065A200CHN | No. 4, No. 5, No. 6, No. 7, No. 8, No. 9 | 15/16" | 3/16" | Off-White | -20° to 210° | 120 |
| 97065A210CHN | No. 6, No. 7, No. 8, No. 9, No. 10, No. 11, No. 12 | 1 1/8" | 1/4" | Off-White | -20° to 210° | 160 |
| 97065A220CHN | No. 8, No. 9, No. 10, No. 11, No. 12, No. 14 | 1 9/16" | 5/16" | Off-White | -20° to 210° | 250 |
| High-Strength Twist-Resistant Plastic Anchors with Screw for Block and Brick |
| PVC Plastic | |||||||
| Part NO. | Screw Size | Screw Lg. | Lg. | Drill Bit Size |
Color | Temperature Range/°F | Strength/ lbs. Pull-Out |
| 98612A010CHN | No. 6 | 1" | 1" | 3/16" | White | 0° to 120° | 180 |
| 98612A015CHN | No. 8 | 1" | 1" | 15/64" | Red | 0° to 120° | 270 |
| 98612A020CHN | No. 10 | 1" | 1" | 1/4" | Green | 0° to 120° | 250 |
| 98612A025CHN | No. 14 | 1 1/2" | 1 1/2" | 5/16" | Blue | 0° to 120° | 420 |
| High-Strength Twist-Resistant Plastic Anchors for Block and Brick |
| PVC Plastic | ||||
| Part NO. | Screw Size | Lg. | Drill Bit Size |
Color |
| 95482A131CHN | No. 6 | 1" | 3/16" | White |
| 95482A111CHN | No. 6 | 1 1/2" | 3/16" | White |
| 95482A125CHN | No. 8 | 1" | 15/64" | Red |
| 95482A112CHN | No. 8 | 1 1/2" | 15/64" | Red |
| 95482A132CHN | No. 10 | 1" | 1/4" | Green |
| 95482A142CHN | No. 10 | 1 1/2" | 1/4" | Green |
| 95482A143CHN | No. 10 | 2" | 1/4" | Green |
| 95482A144CHN | No. 14, 1/4" | 1" | 5/16" | Blue |
| 95482A145CHN | No. 14, 1/4" | 1 1/2" | 5/16" | Blue |
| 95482A133CHN | No. 14, 1/4" | 2" | 5/16" | Blue |
| 95482A134CHN | No. 16, 5/16" | 1 1/2" | 3/8" | Orange |
| 95482A135CHN | No. 16, 5/16" | 2 1/2" | 3/8" | Orange |
| 95482A113CHN | No. 20, 3/8" | 1 1/2" | 7/16" | Gray |
| 95482A138CHN | No. 20, 3/8" | 2" | 7/16" | Gray |
| 95482A139CHN | No. 20, 3/8" | 3" | 7/16" | Gray |
| Twist-Resistant Plastic Anchors for Block and Brick |
| Nylon Plastic | ||||
| Part NO. | Screw Size | Lg. | Drill Bit Size |
Color |
| 97225A113CHN | No. 4, No. 5, No. 6 | 1" | 3/16" | Orange |
| 97225A115CHN | No. 8, No. 9, No. 10 | 1 3/16" | 7/32" | Orange |
| 97225A140CHN | No. 10, No. 11, No. 12 | 1 1/2" | 5/16" | Orange |
| 97225A150CHN | 1/4", 5/16" | 2" | 3/8" | Orange |
| Plastic Removable Pin-Drive Anchors for Block and Brick |
| Nylon 6/6 Plastic | |||||||
| Part NO. | Lg. | Dia. | Head Dia. | Head Ht. | Drill Bit Size |
Min. Installation Dp. |
Pin Material |
| 97066A017CHN | 3/4" | 3/16" | 9/16" | 1/8" | 3/16" | 3/4" | Steel |
| 97066A010CHN | 1" | 3/16" | 9/16" | 1/8" | 3/16" | 1" | Steel |
| 97067A050CHN | 3/4" | 1/4" | 9/16" | 7/64" | 1/4" | 3/4" | Acetal Plastic |
| 97066A013CHN | 3/4" | 1/4" | 9/16" | 1/8" | 1/4" | 3/4" | Steel |
| 97067A051CHN | 1" | 1/4" | 9/16" | 7/64" | 1/4" | 1" | Acetal Plastic |
| 97066A016CHN | 1" | 1/4" | 9/16" | 1/8" | 1/4" | 1" | Steel |
| 97067A052CHN | 1 1/2" | 1/4" | 9/16" | 7/64" | 1/4" | 1 1/2" | Acetal Plastic |
| 97066A043CHN | 1 1/2" | 1/4" | 9/16" | 1/8" | 1/4" | 1 1/2" | Steel |
| Plastic Removable Screw-Drive Anchors for Block and Brick |
| Nylon 6/6 Plastic | |||||||
| Part NO. | Lg. | Dia. | Head Dia. | Head Ht. | Drill Bit Size |
Min. Installation Dp. |
Screw Material |
| 97066A020CHN | 1" | 3/16" | 7/16" | 1/8" | 3/16" | 1" | Zinc-Plated Steel |
| 97066A026CHN | 1" | 1/4" | 7/16" | 1/8" | 1/4" | 1" | Zinc-Plated Steel |
| 97066A028CHN | 1 1/2" | 1/4" | 7/16" | 1/8" | 1/4" | 1 1/2" | Zinc-Plated Steel |
| Plastic Drive Anchors for Concrete |
| Nylon Plastic | |||||||
| Part NO. | Lg. | Dia. | Head Dia. | Head Ht. | Drill Bit Size |
Min. Installation Dp. |
Color |
| 92410A411CHN | 1" | 9/32" | 5/8" | 1/8" | 1/4" | 1" | White |
| 92410A412CHN | 1 5/8" | 9/32" | 5/8" | 1/8" | 1/4" | 1" | White |
| 92410A413CHN | 2 1/8" | 9/32" | 5/8" | 1/8" | 1/4" | 1" | White |
| 92410A414CHN | 2 5/8" | 9/32" | 5/8" | 1/8" | 1/4" | 1" | White |
| 92410A415CHN | 3 1/8" | 9/32" | 5/8" | 1/8" | 1/4" | 1" | White |
| High-Strength Toggle Anchors |
| Zinc-Plated Steel Toggle | |||||||||
| Part NO. | Thread Size | Thread Pitch/mm |
Usable Lg.Range |
Wing Span |
Drill Bit Size |
Material | Color | Strength/ lbs. Pull-Out | Strength/ lbs. Shear |
| 97802A314CHN | 10-24 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 200 | 200 |
| 97802A322CHN | 10-24 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 200 | 200 |
| 97802A321CHN | 10-24 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 200 | 200 |
| 97802A330CHN | 10-24 | __ | 2"-9 1/2" | 2" | 1/2" | Polystyrene Plastic | White | 200 | 200 |
| 97802A316CHN | 1/4"-20 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 250 | 250 |
| 97802A324CHN | 1/4"-20 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 250 | 250 |
| 97802A323CHN | 1/4"-20 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 250 | 250 |
| 97802A319CHN | 1/4"-20 | __ | 2"-9 1/2" | 2" | 1/2" | Polystyrene Plastic | White | 250 | 250 |
| 97802A325CHN | 5/16"-18 | __ | 3/8"-2 1/2" | 2" | 3/4" | Polystyrene Plastic | White | 350 | 350 |
| 97802A317CHN | 3/8"-16 | __ | 3/8"-2 1/2" | 2" | 3/4" | Polystyrene Plastic | White | 400 | 400 |
| 97802A326CHN | M5 | 0.8 | 10mm-92mm | 51mm | 13 mm | Polystyrene Plastic | White | 200 | 200 |
| 97802A327CHN | M6 | 1 | 10mm-92mm | 51mm | 13 mm | Polystyrene Plastic | White | 250 | 250 |
| 97802A328CHN | M8 | 1.25 | 10mm-64mm | 51mm | 19 mm | Polystyrene Plastic | White | 300 | 350 |
| 97802A329CHN | M10 | 1.5 | 10mm-64mm | 51mm | 19 mm | Polystyrene Plastic | White | 400 | 400 |
| 18-8 Stainless Steel Toggle | |||||||||
| 98184A411CHN | 10-24 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 200 | 200 |
| 97802A339CHN | 10-24 | __ | 2"-9 1/2" | 2" | 1/2" | Polystyrene Plastic | White | 200 | 200 |
| 98184A413CHN | 1/4"-20 | __ | 3/8"-3 5/8" | 2" | 1/2" | Polystyrene Plastic | White | 250 | 250 |
| 97802A340CHN | 1/4"-20 | __ | 2"-9 1/2" | 2" | 1/2" | Polystyrene Plastic | White | 250 | 250 |
| 98184A415CHN | 3/8"-16 | __ | 3/8"-2 1/2" | 2" | 3/4" | Polystyrene Plastic | White | 250 | 250 |
| 98184A417CHN | 1/2"-13 | __ | 3/8"-2 1/2" | 2" | 3/4" | Polystyrene Plastic | White | 500 | 500 |
| Nylon Drilling Toggle Bolts |
| Nylon Plastic | ||||||||||
| Part NO. | Thread Size | Screw Lg. |
Lg. | Wing Span |
For Wall Thick. |
Toggle Material |
Pull-Out Strength/lbs. |
Tested In | Head Dia. | Head Ht. |
| 66625A1CHN | 6-32 | 2" | 1 3/8" | 1 3/4" | 3/8"-5/8" | Zinc Alloy | 25 | 1/2" Drywall | 0.68" | 0.05" |
| 66625A11CHN | 6-32 | 3" | 1 3/8" | 1 3/4" | 3/8"-5/8" | Zinc Alloy | 25 | 1/2" Drywall | 0.68" | 0.05" |
| 66625A12CHN | 10-24 | 2" | 1 5/8" | 2" | 3/8"-5/8" | Zinc Alloy | 30 | 1/2" Drywall | 3/4" | 0.05" |
| 66625A13CHN | 1/4"-20 | 3" | 1 7/8" | 2 5/16" | 3/8"-5/8" | Zinc Alloy | 35 | 1/2" Drywall | 0.81" | 0.05" |
| Toggle Anchors for Sheet Metal and Wood Screws |
| Polypropylene Plastic | |||||||
| Part NO. | Screw Size | Extended Lg. |
Drill Bit Size |
For Wall Thick. |
Color | Temperature Range/°F | Strength/ lbs. Pull-Out |
| 92392A230CHN | No. 6, No. 7, No. 8, No. 9, No. 10, No. 12, No. 14 | 1 1/4" | 5/16" | 3/8"-1/2" | Off-White | -20° to 210° | 30 |
| 92392A240CHN | No. 6, No. 7, No. 8, No. 9, No. 10, No. 12, No. 14 | 1 3/8" | 5/16" | 5/8"-3/4" | Off-White | -20° to 210° | 30 |
| 92392A250CHN | No. 6, No. 7, No. 8, No. 9, No. 10, No. 12, No. 14 | 1 3/4" | 5/16" | 1" | Off-White | -20° to 210° | 30 |
| 92392A220CHN | No. 8, No. 9, No. 10, No. 12 | 3/4" | 5/16" | 1/8"-1/4" | Off-White | -20° to 210° | 30 |
| Female Drilling Anchors with Screw for Drywall, Plaster, and Wood Paneling |
| Nylon Plastic | ||||||||
| Part NO. | Screw Size | Screw Lg. |
Lg. | For Wall Thick. |
Color | Temperature Range/°F | Strength/ lbs. Pull-Out | Strength/ lbs. Shear |
| 66615A5CHN | No. 6 | 1" | 1 3/8" | 3/8"-5/8" | Off-White | 32° to 160° | 10 | 10 |
| 66615A6CHN | No. 8 | 1" | 1 11/16" | 3/8"-1" | Off-White | 32° to 160° | 10 | 15 |
| 66615A4CHN | No. 8 | 1 1/4" | 1 5/8" | 3/8"-3/4" | Off-White | 32° to 160° | 5 | Not Rated |
| 66615A28CHN | No. 8 | 1 1/2" | 1 3/4" | 3/8"-5/8" | Off-White | 32° to 160° | 10 | 25 |
| Female Drilling Anchors for Drywall, Plaster, and Wood Paneling |
| Nylon Plastic | ||||||
| Part NO. | Screw Size | Lg. | For Wall Thick. |
Color | Temperature Range/°F | Strength/ lbs. Pull-Out |
| 66615A7CHN | No. 6 | 1 3/8" | 3/8"-5/8" | Off-White | 30° to 170° | 5 |
| 66615A25CHN | No. 6, No. 7, No. 8, No. 9, No. 10 | 1 5/8" | 3/8"-5/8" | Off-White | 30° to 170° | 5 |
| 66615A67CHN | No. 8 | 1 5/8" | 3/8"-3/4" | Off-White | 30° to 170° | 5 |
| Anchors with Screw for Drywall, Plaster, and Wood Paneling |
| Polyethylene Plastic | |||||
| Rounded Head with Phillips Drive | |||||
| Part NO. | Screw Size | Screw Lg. | Lg. | Drill Bit Size |
Color |
| 98547A110CHN | No. 6 | 1" | 3/4" | 3/16" | Blue |
| 98547A112CHN | No. 6 | 1" | 7/8" | 3/16" | Red |
| 98547A114CHN | No. 10 | 1" | 1" | 1/4" | Blue |
| 98547A116CHN | No. 14 | 1 1/4" | 1 3/8" | 5/16" | Blue |
| Rounded Head with Phillips/Slotted Drive | |||||
| 98547A121CHN | No. 6 | 1" | 3/4" | 3/16" | Red |
| Rounded Head with Slotted Drive | |||||
| 98547A119CHN | No. 10 | 1" | 1" | 1/4" | Blue |
| Hex Head with Slotted Drive | |||||
| 98547A118CHN | No. 10 | 1" | 1" | 1/4" | Blue |
| Anchors for Drywall, Plaster, and Wood Paneling |
| Polyethylene Plastic | ||||
| Part NO. | Screw Size | Lg. | Drill Bit Size |
Color |
| 97068A110CHN | No. 4, No. 5, No. 6, No. 7, No. 8 | 3/4" | 3/16" | Blue |
| 97068A120CHN | No. 6, No. 7, No. 8, No. 9, No. 10 | 7/8" | 3/16" | Blue |
| 97068A130CHN | No. 10, No. 12 | 1" | 1/4" | Blue |
| 97068A140CHN | No. 14, No. 16 | 1 3/8" | 5/16" | Blue |
| Twist-Resistant Anchors for Drywall, Plaster, and Wood Paneling |
| Nylon Plastic | ||||
| Part NO. | Screw Size | Lg. | Drill Bit Size |
Color |
| 93370A400CHN | No. 8 | 1 3/8" | 1/4" | Orange |
| 93370A500CHN | No. 10, No. 12, No. 14 | 2" | 5/16" | Orange |
| 93370A600CHN | No. 14 | 2 3/8" | 3/8" | Orange |
| Quick-Drive Anchors for Drywall, Plaster, and Wood Paneling |
| Nylon Plastic | |||||
| Part NO. | Screw Size | Screw Lg. | Lg. | For Wall Thick. |
Color |
| 66615A92CHN | No. 8 | 1 1/4" | 2" | 1/2"-5/8" | Green |
| Male-Female Threaded Hex Standoffs |
| Nylon 6/6 Plastic—Inch | ||||||||
| Part NO. | Hex Size | Lg. | Thread (A) Size | Thread (A) Lg. | Thread (B) Size | Thread (B) Min. Lg. | Temperature Range/°F |
Color |
| 92745A421CHN | 3/16" | 3/16" | 2-56 | 5/32" | 2-56 | 1/16" | -20° to 155° | Off-White |
| 92745A460CHN | 3/16" | 3/16" | 4-40 | 3/16" | 4-40 | 1/16" | -20° to 155° | Off-White |
| 92745A461CHN | 3/16" | 3/16" | 6-32 | 1/4" | 6-32 | 1/16" | -20° to 155° | Off-White |
| 92745A422CHN | 3/16" | 7/32" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A462CHN | 3/16" | 7/32" | 4-40 | 3/16" | 4-40 | 1/16" | -20° to 155° | Off-White |
| 92745A463CHN | 3/16" | 7/32" | 6-32 | 1/4" | 6-32 | 1/16" | -20° to 155° | Off-White |
| 92745A370CHN | 3/16" | 1/4" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A371CHN | 3/16" | 1/4" | 4-40 | 3/16" | 4-40 | 1/8" | -20° to 155° | Off-White |
| 92745A372CHN | 3/16" | 1/4" | 6-32 | 1/4" | 6-32 | 3/32" | -20° to 155° | Off-White |
| 92745A423CHN | 3/16" | 9/32" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A464CHN | 3/16" | 9/32" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A665CHN | 3/16" | 9/32" | 6-32 | 1/4" | 6-32 | 3/32" | -20° to 155° | Off-White |
| 92745A424CHN | 3/16" | 5/16" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A466CHN | 3/16" | 5/16" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A467CHN | 3/16" | 5/16" | 6-32 | 1/4" | 6-32 | 5/32" | -20° to 155° | Off-White |
| 92745A625CHN | 3/16" | 11/32" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A468CHN | 3/16" | 11/32" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A469CHN | 3/16" | 11/32" | 6-32 | 1/4" | 6-32 | 5/32" | -20° to 155° | Off-White |
| 92745A373CHN | 3/16" | 3/8" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A374CHN | 3/16" | 3/8" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A335CHN | 3/16" | 3/8" | 6-32 | 1/4" | 6-32 | 3/16" | -20° to 155° | Off-White |
| 92745A426CHN | 3/16" | 13/32" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A470CHN | 3/16" | 13/32" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A471CHN | 3/16" | 13/32" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A427CHN | 3/16" | 7/16" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A472CHN | 3/16" | 7/16" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A473CHN | 3/16" | 7/16" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A428CHN | 3/16" | 15/32" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A474CHN | 3/16" | 15/32" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A675CHN | 3/16" | 15/32" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A376CHN | 3/16" | 1/2" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A377CHN | 3/16" | 1/2" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A378CHN | 3/16" | 1/2" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92319A891CHN | 3/16" | 5/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92745A379CHN | 3/16" | 3/4" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A380CHN | 3/16" | 3/4" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A381CHN | 3/16" | 3/4" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92319A892CHN | 3/16" | 7/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92745A382CHN | 3/16" | 1" | 2-56 | 5/32" | 2-56 | 3/16" | -20° to 155° | Off-White |
| 92745A383CHN | 3/16" | 1" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A384CHN | 3/16" | 1" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92319A881CHN | 3/16" | 1 1/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A882CHN | 3/16" | 1 1/4" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A883CHN | 3/16" | 1 3/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A884CHN | 3/16" | 1 1/2" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A885CHN | 3/16" | 1 5/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A886CHN | 3/16" | 1 3/4" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A887CHN | 3/16" | 1 7/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A889CHN | 3/16" | 2" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92319A893CHN | 1/4" | 1/8" | 4-40 | 3/16" | 4-40 | 1/16" | -40° to 250° | Off-White |
| 92319A894CHN | 1/4" | 3/16" | 4-40 | 3/16" | 4-40 | 5/64" | -40° to 250° | Off-White |
| 92319A895CHN | 1/4" | 7/32" | 4-40 | 3/16" | 4-40 | 3/32" | -40° to 250° | Off-White |
| 92745A320CHN | 1/4" | 1/4" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A340CHN | 1/4" | 1/4" | 6-32 | 1/4" | 6-32 | 3/16" | -20° to 155° | Off-White |
| 92745A360CHN | 1/4" | 1/4" | 8-32 | 3/8" | 8-32 | 3/16" | -20° to 155° | Off-White |
| 92745A476CHN | 1/4" | 9/32" | 4-40 | 3/16" | 4-40 | 1/8" | -20° to 155° | Off-White |
| 92745A477CHN | 1/4" | 9/32" | 6-32 | 1/4" | 6-32 | 3/32" | -20° to 155° | Off-White |
| 92745A478CHN | 1/4" | 9/32" | 8-32 | 3/8" | 8-32 | 3/32" | -20° to 155° | Off-White |
| 92745A479CHN | 1/4" | 5/16" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A480CHN | 1/4" | 5/16" | 6-32 | 1/4" | 6-32 | 5/32" | -20° to 155° | Off-White |
| 92745A481CHN | 1/4" | 5/16" | 8-32 | 3/8" | 8-32 | 5/32" | -20° to 155° | Off-White |
| 92745A482CHN | 1/4" | 11/32" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A483CHN | 1/4" | 11/32" | 6-32 | 1/4" | 6-32 | 5/32" | -20° to 155° | Off-White |
| 92745A484CHN | 1/4" | 11/32" | 8-32 | 3/8" | 8-32 | 5/32" | -20° to 155° | Off-White |
| 92745A321CHN | 1/4" | 3/8" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A341CHN | 1/4" | 3/8" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A361CHN | 1/4" | 3/8" | 8-32 | 3/8" | 8-32 | 1/4" | -20° to 155° | Off-White |
| 92745A685CHN | 1/4" | 13/32" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A486CHN | 1/4" | 13/32" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A487CHN | 1/4" | 13/32" | 8-32 | 3/8" | 8-32 | 3/16" | -20° to 155° | Off-White |
| 92745A488CHN | 1/4" | 7/16" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A489CHN | 1/4" | 7/16" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A490CHN | 1/4" | 7/16" | 8-32 | 3/8" | 8-32 | 7/32" | -20° to 155° | Off-White |
| 92745A491CHN | 1/4" | 15/32" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A492CHN | 1/4" | 15/32" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A493CHN | 1/4" | 15/32" | 8-32 | 3/8" | 8-32 | 7/16" | -20° to 155° | Off-White |
| 92745A322CHN | 1/4" | 1/2" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A342CHN | 1/4" | 1/2" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A362CHN | 1/4" | 1/2" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92745A323CHN | 1/4" | 5/8" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A343CHN | 1/4" | 5/8" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A363CHN | 1/4" | 5/8" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92745A324CHN | 1/4" | 3/4" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A344CHN | 1/4" | 3/4" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A364CHN | 1/4" | 3/4" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92745A325CHN | 1/4" | 7/8" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A345CHN | 1/4" | 7/8" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A365CHN | 1/4" | 7/8" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92745A326CHN | 1/4" | 1" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A346CHN | 1/4" | 1" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A366CHN | 1/4" | 1" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92319A896CHN | 1/4" | 1 1/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92745A327CHN | 1/4" | 1 1/4" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A347CHN | 1/4" | 1 1/4" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A367CHN | 1/4" | 1 1/4" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92319A898CHN | 1/4" | 1 3/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92745A328CHN | 1/4" | 1 1/2" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A348CHN | 1/4" | 1 1/2" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A368CHN | 1/4" | 1 1/2" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92319A899CHN | 1/4" | 1 5/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92745A001CHN | 1/4" | 1 3/4" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A002CHN | 1/4" | 1 3/4" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A003CHN | 1/4" | 1 3/4" | 8-32 | 3/8" | 8-32 | 7/16" | -20° to 155° | Off-White |
| 92319A911CHN | 1/4" | 1 7/8" | 4-40 | 3/16" | 4-40 | 1/4" | -40° to 250° | Off-White |
| 92745A329CHN | 1/4" | 2" | 4-40 | 3/16" | 4-40 | 3/16" | -20° to 155° | Off-White |
| 92745A349CHN | 1/4" | 2" | 6-32 | 1/4" | 6-32 | 1/4" | -20° to 155° | Off-White |
| 92745A369CHN | 1/4" | 2" | 8-32 | 3/8" | 8-32 | 3/8" | -20° to 155° | Off-White |
| 92745A004CHN | 1/4" | 2 1/4" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A005CHN | 1/4" | 2 1/4" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A006CHN | 1/4" | 2 1/4" | 8-32 | 3/8" | 8-32 | 7/16" | -20° to 155° | Off-White |
| 92745A007CHN | 1/4" | 2 1/2" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A008CHN | 1/4" | 2 1/2" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A009CHN | 1/4" | 2 1/2" | 8-32 | 3/8" | 8-32 | 7/16" | -20° to 155° | Off-White |
| 92745A010CHN | 1/4" | 3" | 4-40 | 3/16" | 4-40 | 1/4" | -20° to 155° | Off-White |
| 92745A011CHN | 1/4" | 3" | 6-32 | 1/4" | 6-32 | 3/8" | -20° to 155° | Off-White |
| 92745A012CHN | 1/4" | 3" | 8-32 | 3/8" | 8-32 | 7/16" | -20° to 155° | Off-White |
| 92745A201CHN | 1/2" | 1/2" | 10-32 | 3/8" | 10-32 | 9/32" | -20° to 250° | Off-White |
| 92745A202CHN | 1/2" | 1/2" | 1/4"-20 | 1/2" | 1/4"-20 | 5/16" | -20° to 250° | Off-White |
| 92745A203CHN | 1/2" | 5/8" | 1/4"-20 | 1/2" | 1/4"-20 | 13/32" | -20° to 250° | Off-White |
| 92745A204CHN | 1/2" | 3/4" | 1/4"-20 | 1/2" | 1/4"-20 | 9/16" | -20° to 250° | Off-White |
| 92745A205CHN | 1/2" | 1" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| 92745A206CHN | 1/2" | 1 1/4" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| 92745A207CHN | 1/2" | 1 1/2" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| 92745A208CHN | 1/2" | 1 3/4" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| 92745A209CHN | 1/2" | 2" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| 92745A210CHN | 1/2" | 2 1/4" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| 92745A211CHN | 1/2" | 3" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| 92745A212CHN | 1/2" | 4" | 10-32 | 3/8" | 10-32 | 1/2" | -20° to 250° | Off-White |
| 92745A213CHN | 1/2" | 4 1/4" | 1/4"-20 | 1/2" | 1/4"-20 | 5/8" | -20° to 250° | Off-White |
| Nylon 6/6 Plastic—Metric | |||||||||
| Part NO. | Hex Size/mm | Lg./mm | Thread (A) Size | Thread (A) Pitch/mm | Thread (A) Lg./mm | Thread (B) Size | Thread (B) Pitch/mm | Thread (B) Min. Lg./mm | Color |
| 95783A050CHN | 4.5 | 5 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 1.9 | Off-White |
| 95783A051CHN | 4.5 | 5 | M3 | 0.5 | 4.7 | M3 | 0.5 | 1.8 | Off-White |
| 95783A052CHN | 4.5 | 6 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 2.9 | Off-White |
| 95783A053CHN | 4.5 | 6 | M3 | 0.5 | 4.7 | M3 | 0.5 | 2.8 | Off-White |
| 95783A054CHN | 4.5 | 8 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A055CHN | 4.5 | 8 | M3 | 0.5 | 4.7 | M3 | 0.5 | 4.8 | Off-White |
| 95783A056CHN | 4.5 | 10 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A057CHN | 4.5 | 10 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A058CHN | 4.5 | 12 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A059CHN | 4.5 | 12 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A060CHN | 4.5 | 14 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A061CHN | 4.5 | 14 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A062CHN | 4.5 | 16 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A063CHN | 4.5 | 16 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A064CHN | 4.5 | 19 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A065CHN | 4.5 | 19 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A066CHN | 4.5 | 20 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A067CHN | 4.5 | 20 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A068CHN | 4.5 | 25 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A069CHN | 4.5 | 25 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A070CHN | 4.5 | 31 | M2.5 | 0.45 | 3.9 | M2.5 | 0.45 | 4.8 | Off-White |
| 95783A071CHN | 4.5 | 31 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A001CHN | 6 | 5 | M3 | 0.5 | 4.7 | M3 | 0.5 | 1.8 | Off-White |
| 95783A003CHN | 6 | 5 | M4 | 0.7 | 9.5 | M4 | 0.7 | 2.1 | Off-White |
| 95783A004CHN | 6 | 6 | M3 | 0.5 | 4.7 | M3 | 0.5 | 2.8 | Off-White |
| 95783A006CHN | 6 | 6 | M4 | 0.7 | 9.5 | M4 | 0.7 | 2.1 | Off-White |
| 95783A007CHN | 6 | 8 | M3 | 0.5 | 4.7 | M3 | 0.5 | 4.8 | Off-White |
| 95783A009CHN | 6 | 8 | M4 | 0.7 | 9.5 | M4 | 0.7 | 4.1 | Off-White |
| 95783A010CHN | 6 | 10 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A012CHN | 6 | 10 | M4 | 0.7 | 9.5 | M4 | 0.7 | 6.1 | Off-White |
| 95783A013CHN | 6 | 12 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A015CHN | 6 | 12 | M4 | 0.7 | 9.5 | M4 | 0.7 | 8.1 | Off-White |
| 95783A016CHN | 6 | 13 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A018CHN | 6 | 13 | M4 | 0.7 | 9.5 | M4 | 0.7 | 9.1 | Off-White |
| 95783A019CHN | 6 | 14 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A021CHN | 6 | 14 | M4 | 0.7 | 9.5 | M4 | 0.7 | 10.1 | Off-White |
| 95783A022CHN | 6 | 16 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A024CHN | 6 | 16 | M4 | 0.7 | 9.5 | M4 | 0.7 | 11.1 | Off-White |
| 95783A025CHN | 6 | 19 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A027CHN | 6 | 19 | M4 | 0.7 | 9.5 | M4 | 0.7 | 11.1 | Off-White |
| 95783A028CHN | 6 | 20 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A030CHN | 6 | 20 | M4 | 0.7 | 9.5 | M4 | 0.7 | 11.1 | Off-White |
| 95783A031CHN | 6 | 22 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A033CHN | 6 | 22 | M4 | 0.7 | 9.5 | M4 | 0.7 | 11.1 | Off-White |
| 95783A034CHN | 6 | 25 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A036CHN | 6 | 25 | M4 | 0.7 | 9.5 | M4 | 0.7 | 11.1 | Off-White |
| 95783A037CHN | 6 | 31 | M3 | 0.5 | 4.7 | M3 | 0.5 | 6.4 | Off-White |
| 95783A039CHN | 6 | 31 | M4 | 0.7 | 9.5 | M4 | 0.7 | 11.1 | Off-White |
| Threaded Rods |
| Nylon 6/6 | ||||||
| Part NO. | Lg. | Thread Size | Tensile Strength |
Max. Temp./° F | Hardness | Color |
| 98831A760CHN | 1" | 4-40 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A310CHN | 2 ft. | 4-40 | Not Rated | 185 | Not Rated | Black,White |
| 98831A520CHN | 6 ft. | 4-40 | Not Rated | 185 | Not Rated | Black,White |
| 98831A770CHN | 3/4" | 6-32 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A780CHN | 1" | 6-32 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A790CHN | 1 1/2" | 6-32 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A320CHN | 2 ft. | 6-32 | Not Rated | 185 | Not Rated | Black,White |
| 98831A530CHN | 6 ft. | 6-32 | Not Rated | 185 | Not Rated | Black,White |
| 98831A810CHN | 3/4" | 8-32 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A820CHN | 1" | 8-32 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A830CHN | 1 1/2" | 8-32 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A330CHN | 2 ft. | 8-32 | Not Rated | 185 | Not Rated | Black,White |
| 98831A540CHN | 6 ft. | 8-32 | Not Rated | 185 | Not Rated | Black,White |
| 98831A840CHN | 3/4" | 10-24 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A850CHN | 1" | 10-24 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A860CHN | 1 1/2" | 10-24 | Not Rated | Not Rated | Not Rated | Black,White |
| 98831A340CHN | 2 ft. | 10-24 | Not Rated | 185 | Not Rated | Black,White |
| 98831A871CHN | 3 ft. | 10-24 | Not Rated | Not Rated | Not Rated | White |
| 98831A550CHN | 6 ft. | 10-24 | Not Rated | 185 | Not Rated | Black,White |
| 93665A309CHN | 3/4" | 10-32 | Not Rated | 185 | Not Rated | Black,White |
| 93665A314CHN | 1" | 10-32 | Not Rated | 185 | Not Rated | Black,White |
| 93665A319CHN | 1 1/2" | 10-32 | Not Rated | 185 | Not Rated | Black,White |
| 93665A324CHN | 2" | 10-32 | Not Rated | 185 | Not Rated | Black,White |
| 98831A350CHN | 2 ft. | 10-32 | Not Rated | 185 | Not Rated | Black,White |
| 98831A560CHN | 6 ft. | 10-32 | Not Rated | 185 | Not Rated | Black,White |
| 93665A409CHN | 3/4" | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 93665A414CHN | 1" | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 93665A419CHN | 1 1/2" | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 93665A424CHN | 2" | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 93665A429CHN | 2 1/2" | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 93665A434CHN | 3" | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 98831A360CHN | 2 ft. | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 98831A570CHN | 6 ft. | 1/4"-20 | Not Rated | 185 | Not Rated | Black,White |
| 93665A514CHN | 1" | 5/16"-18 | Not Rated | 185 | Not Rated | Black,White |
| 93665A519CHN | 1 1/2" | 5/16"-18 | Not Rated | 185 | Not Rated | Black,White |
| 93665A524CHN | 2" | 5/16"-18 | Not Rated | 185 | Not Rated | Black,White |
| 93665A534CHN | 3" | 5/16"-18 | Not Rated | 185 | Not Rated | Black,White |
| 98831A370CHN | 2 ft. | 5/16"-18 | Not Rated | 185 | Not Rated | Black,White |
| 98831A580CHN | 6 ft. | 5/16"-18 | Not Rated | 185 | Not Rated | Black,White |
| 93665A614CHN | 1" | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 93665A619CHN | 1 1/2" | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 93665A624CHN | 2" | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 93665A629CHN | 2 1/2" | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 93665A634CHN | 3" | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 93665A639CHN | 4" | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 98831A380CHN | 2 ft. | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 98831A590CHN | 6 ft. | 3/8"-16 | Not Rated | 185 | Not Rated | Black,White |
| 93665A659CHN | 1 1/2" | 1/2"-13 | Not Rated | 185 | Not Rated | Black,White |
| 93665A664CHN | 2" | 1/2"-13 | Not Rated | 185 | Not Rated | Black,White |
| 93665A674CHN | 3" | 1/2"-13 | Not Rated | 185 | Not Rated | Black,White |
| 93665A684CHN | 5" | 1/2"-13 | Not Rated | 185 | Not Rated | Black,White |
| 98831A390CHN | 2 ft. | 1/2"-13 | Not Rated | 185 | Not Rated | Black,White |
| 98831A710CHN | 6 ft. | 1/2"-13 | Not Rated | 185 | Not Rated | Black,White |
| 98831A110CHN | 1 ft. | 5/8"-11 | Not Rated | 185 | Not Rated | Black,White |
| 98831A410CHN | 2 ft. | 5/8"-11 | Not Rated | 185 | Not Rated | Black,White |
| 98831A720CHN | 6 ft. | 5/8"-11 | Not Rated | 185 | Not Rated | Black,White |
| 98831A120CHN | 1 ft. | 3/4"-10 | Not Rated | 185 | Not Rated | Black,White |
| 98831A420CHN | 2 ft. | 3/4"-10 | Not Rated | 185 | Not Rated | Black,White |
| 98831A730CHN | 6 ft. | 3/4"-10 | Not Rated | 185 | Not Rated | Black,White |
| 98831A140CHN | 1 ft. | 1"-8 | Not Rated | 185 | Not Rated | Black,White |
| 98831A510CHN | 2 ft. | 1"-8 | Not Rated | 185 | Not Rated | Black,White |
| 98831A750CHN | 6 ft. | 1"-8 | Not Rated | 185 | Not Rated | Black,White |
| 98882A118CHN | 1 m | M4 × 0.7 mm | Not Rated | 185 | Not Rated | Black,White |
| 98882A240CHN | 1 m | M5 × 0.8 mm | Not Rated | 185 | Not Rated | Black,White |
| 98882A600CHN | 1 m | M6 × 1 mm | Not Rated | 185 | Not Rated | White |
| 98882A354CHN | 1 m | M8 × 1.25 mm | Not Rated | 185 | Not Rated | Black,White |
| 98882A900CHN | 1 m | M10 × 1.5 mm | Not Rated | 185 | Not Rated | White |
| 98882A110CHN | 1 m | M12 × 1.75 mm | Not Rated | 185 | Not Rated | White |
| 98882A140CHN | 1 m | M16 × 2 mm | Not Rated | 185 | Not Rated | White |
| 98882A160CHN | 1 m | M20 × 2.5 mm | Not Rated | 185 | Not Rated | White |
| Moisture-Resistant Acetal | ||||||
| 98873A100CHN | 2 ft. | 10-32 | Not Rated | 180 | Not Rated | White |
| 98873A105CHN | 4 ft. | 10-32 | Not Rated | 180 | Not Rated | White |
| 98873A200CHN | 2 ft. | 1/4"-20 | Not Rated | 180 | Not Rated | White |
| 98873A205CHN | 4 ft. | 1/4"-20 | Not Rated | 180 | Not Rated | White |
| 98873A300CHN | 2 ft. | 5/16"-18 | Not Rated | 180 | Not Rated | White |
| 98873A305CHN | 4 ft. | 5/16"-18 | Not Rated | 180 | Not Rated | White |
| 98873A400CHN | 2 ft. | 3/8"-16 | Not Rated | 180 | Not Rated | White |
| 98873A405CHN | 4 ft. | 3/8"-16 | Not Rated | 180 | Not Rated | White |
| 98873A500CHN | 2 ft. | 1/2"-13 | Not Rated | 180 | Not Rated | White |
| 98873A505CHN | 4 ft. | 1/2"-13 | Not Rated | 180 | Not Rated | White |
| Chemical-Resistant PVC | ||||||
| 98871A330CHN | 1 ft. | 1/4"-20 | Not Rated | 130 | Not Rated | Gray |
| 98871A040CHN | 3 ft. | 1/4"-20 | Not Rated | 130 | Not Rated | Gray |
| 98871A340CHN | 6 ft. | 1/4"-20 | Not Rated | 130 | Not Rated | Gray |
| 98871A043CHN | 3 ft. | 5/16"-18 | Not Rated | 130 | Not Rated | Gray |
| 98871A370CHN | 1 ft. | 3/8"-16 | Not Rated | 130 | Not Rated | Gray |
| 98871A041CHN | 3 ft. | 3/8"-16 | Not Rated | 130 | Not Rated | Gray |
| 98871A380CHN | 6 ft. | 3/8"-16 | Not Rated | 130 | Not Rated | Gray |
| 98871A310CHN | 1 ft. | 1/2"-13 | Not Rated | 130 | Not Rated | Gray |
| 98871A042CHN | 3 ft. | 1/2"-13 | Not Rated | 130 | Not Rated | Gray |
| 98871A320CHN | 6 ft. | 1/2"-13 | Not Rated | 130 | Not Rated | Gray |
| 98871A390CHN | 1 ft. | 5/8"-11 | Not Rated | 130 | Not Rated | Gray |
| 98871A120CHN | 3 ft. | 5/8"-11 | Not Rated | 130 | Not Rated | Gray |
| 98871A410CHN | 6 ft. | 5/8"-11 | Not Rated | 130 | Not Rated | Gray |
| 98871A350CHN | 1 ft. | 3/4"-10 | Not Rated | 130 | Not Rated | Gray |
| 98871A130CHN | 3 ft. | 3/4"-10 | Not Rated | 130 | Not Rated | Gray |
| 98871A360CHN | 6 ft. | 3/4"-10 | Not Rated | 130 | Not Rated | Gray |
| High-Temperature Chemical-Resistant PTFE | ||||||
| 90206A400CHN | 1 ft. | 1/4"-20 | Not Rated | 250 | Not Rated | White |
| 90206A029CHN | 4 ft. | 1/4"-20 | Not Rated | 250 | Not Rated | White |
| 90206A410CHN | 1 ft. | 5/16"-18 | Not Rated | 250 | Not Rated | White |
| 90206A030CHN | 4 ft. | 5/16"-18 | Not Rated | 250 | Not Rated | White |
| 90206A420CHN | 1 ft. | 3/8"-16 | Not Rated | 250 | Not Rated | White |
| 90206A031CHN | 4 ft. | 3/8"-16 | Not Rated | 250 | Not Rated | White |
| 90206A430CHN | 1 ft. | 1/2"-13 | Not Rated | 250 | Not Rated | White |
| 90206A033CHN | 4 ft. | 1/2"-13 | Not Rated | 250 | Not Rated | White |
| 90206A440CHN | 1 ft. | 3/4"-10 | Not Rated | 250 | Not Rated | White |
| 90206A037CHN | 4 ft. | 3/4"-10 | Not Rated | 250 | Not Rated | White |
| Thread Adapters for Drum Openings |
| Polypropylene Plastic | |||||
| Part NO. | Inlet Pipe/Thread Size |
Inlet Gender | Outlet Pipe Size |
Outlet Gender | Seal Material |
| 2045T24CHN | 2 BSPP | Male | 2 NPT | Female | EPDM Rubber |
| 2045T11CHN | M56 Metric | Male | 2 NPT | Female | EPDM Rubber |
| 2045T12CHN | M60 Metric | Male | 2 NPT | Female | EPDM Rubber |
| 2045T3CHN | M64 Metric | Male | 2 NPT | Female | EPDM Rubber |
| 2045T8CHN | M70 Metric | Male | 2 NPT | Female | EPDM Rubber |
| Threaded-Stud Knobs |
| Black Phenolic Plastic | |||||||||
| Part NO. | Thread Size | Style | Thread Pitch | Stud Lg. | Head Dia. | Head Wd. | Head Ht. | Hub Dia. | Hub Ht. |
| 1373T11CHN | 10-32 | 2-Knurled Grip | __ | 1/2" | 1" | __ | 3/8" | 5/8" | 1/8" |
| 1373T21CHN | 10-32 | 2-Knurled Grip | __ | 1/2" | 1 1/4" | __ | 1/2" | 3/4" | 1/4" |
| 1373T31CHN | 10-32 | 2-Knurled Grip | __ | 1/2" | 1 3/4" | __ | 1/2" | 1" | 7/16" |
| 1373T12CHN | 10-32 | 2-Knurled Grip | __ | 1" | 1" | __ | 3/8" | 5/8" | 1/8" |
| 1373T22CHN | 10-32 | 2-Knurled Grip | __ | 1" | 1 1/4" | __ | 1/2" | 3/4" | 1/4" |
| 1373T32CHN | 10-32 | 2-Knurled Grip | __ | 1" | 1 3/4" | __ | 1/2" | 1" | 7/16" |
| 1373T57CHN | 1/4"-20 | 2-Knurled Grip | __ | 3/4" | 1" | __ | 3/8" | 5/8" | 1/8" |
| 1373T55CHN | 1/4"-20 | 2-Knurled Grip | __ | 3/4" | 1 1/4" | __ | 1/2" | 3/4" | 1/4" |
| 1373T53CHN | 1/4"-20 | 2-Knurled Grip | __ | 3/4" | 1 3/4" | __ | 1/2" | 1" | 7/16" |
| 1373T56CHN | 1/4"-20 | 2-Knurled Grip | __ | 1 3/8" | 1 1/4" | __ | 1/2" | 3/4" | 1/4" |
| 1373T58CHN | 1/4"-20 | 2-Knurled Grip | __ | 1 1/2" | 1" | __ | 3/8" | 5/8" | 1/8" |
| 1373T15CHN | 5/16"-18 | 2-Knurled Grip | __ | 1/2" | 1" | __ | 3/8" | 5/8" | 1/8" |
| 1373T25CHN | 5/16"-18 | 2-Knurled Grip | __ | 1/2" | 1 1/4" | __ | 1/2" | 3/4" | 1/4" |
| 1373T35CHN | 5/16"-18 | 2-Knurled Grip | __ | 1/2" | 1 3/4" | __ | 1/2" | 1" | 7/16" |
| 1373T54CHN | 5/16"-18 | 2-Knurled Grip | __ | 3/4" | 1 3/4" | __ | 1/2" | 1" | 7/16" |
| 1373T16CHN | 5/16"-18 | 2-Knurled Grip | __ | 1" | 1" | __ | 3/8" | 5/8" | 3/8" |
| 1373T26CHN | 5/16"-18 | 2-Knurled Grip | __ | 1" | 1 1/4" | __ | 1/2" | 3/4" | 1/4" |
| 1373T36CHN | 5/16"-18 | 2-Knurled Grip | __ | 1" | 1 3/4" | __ | 1/2" | 1" | 7/16" |
| 3503K74CHN | M8 | 2-Knurled Grip | 1.25mm | 30mm | 44mm | __ | 24mm | 25mm | __ |
| Black Nylon Plastic | |||||||||
| 1373T51CHN | 1/4"-20 | 2-Knurled Grip | __ | 3/4" | 1" | __ | 1/4" | 5/8" | 1/2" |
| 1373T52CHN | 5/16"-18 | 2-Knurled Grip | __ | 3/4" | 1 3/4" | __ | 5/8" | 1" | 7/16" |
| 1373T67CHN | M6 | 2-Knurled Grip | 1mm | 20mm | 18mm | __ | 14mm | 11mm | __ |
| Black Polypropylene Plastic | |||||||||
| 63625K31CHN | 1/4"-20 | 3-Knurled Grip | __ | 3/4" | 1 1/4" | __ | 1/2" | 9/16" | 3/8" |
| 63625K32CHN | 1/4"-20 | 3-Knurled Grip | __ | 3/4" | 1 9/16" | __ | 1/2" | 11/16" | 7/16" |
| 63625K33CHN | 5/16"-18 | 3-Knurled Grip | __ | 3/4" | 1 9/16" | __ | 1/2" | 11/16" | 7/16" |
| 63625K34CHN | 3/8"-16 | 3-Knurled Grip | __ | 1" | 2" | __ | 5/8" | 13/16" | 1/2" |
| 63625K35CHN | 3/8"-16 | 3-Knurled Grip | __ | 1" | 2 3/8" | __ | 13/16" | 15/16" | 9/16" |
| Black Nylon Plastic | |||||||||
| 3503K58CHN | 1/4"-20 | 4-Knurled Grip | __ | 1 3/16" | 1" | __ | 7/8" | 1/2" | 1/8" |
| 3503K61CHN | 1/4"-20 | 4-Knurled Grip | __ | 1 3/16" | 1" | __ | 7/8" | 1/2" | 1/8" |
| 3503K59CHN | 5/16"-18 | 4-Knurled Grip | __ | 1 9/16" | 1 1/4" | __ | 1 3/16" | 5/8" | 1/8" |
| 3503K62CHN | 5/16"-18 | 4-Knurled Grip | __ | 1 9/16" | 1 1/4" | __ | 1 3/16" | 5/8" | 1/8" |
| 3503K71CHN | 3/8"-16 | 4-Knurled Grip | __ | 1 9/16" | 1 9/16" | __ | 1 1/2" | 3/4" | 3/16" |
| 3503K63CHN | 3/8"-16 | 4-Knurled Grip | __ | 1 9/16" | 1 9/16" | __ | 1 1/2" | 3/4" | 3/16" |
| 3503K64CHN | 1/2"-13 | 4-Knurled Grip | __ | 1 3/16" | 2" | __ | 1 13/16" | 15/16" | 3/16" |
| 3503K65CHN | 1/2"-13 | 4-Knurled Grip | __ | 2 3/8" | 2" | __ | 1 13/16" | 15/16" | 3/16" |
| Black Phenolic Plastic | |||||||||
| 6479K71CHN | 10-24 | 5-Ribbed Grip | __ | 1/2" | 7/8" | __ | 3/8" | 5/8" | 1/8" |
| 6479K69CHN | 10-32 | 5-Ribbed Grip | __ | 3/8" | 7/8" | __ | 3/8" | 5/8" | 1/8" |
| 6479K32CHN | 10-32 | 5-Ribbed Grip | __ | 1/2" | 7/8" | __ | 3/8" | 5/8" | 1/8" |
| 6479K26CHN | 10-32 | 5-Ribbed Grip | __ | 1/2" | 1 3/4" | __ | 3/8" | 3/4" | 3/8" |
| 6479K68CHN | 10-32 | 5-Ribbed Grip | __ | 3/4" | 7/8" | __ | 3/8" | 5/8" | 3/8" |
| 6479K79CHN | 10-32 | 5-Ribbed Grip | __ | 1" | 7/8" | __ | 3/8" | 5/8" | 1/4" |
| 6479K27CHN | 10-32 | 5-Ribbed Grip | __ | 1" | 1 3/4" | __ | 3/8" | 3/4" | 3/8" |
| 6479K88CHN | 1/4"-20 | 5-Ribbed Grip | __ | 1/2" | 1 1/4" | __ | 3/8" | 5/8" | 3/8" |
| 6479K83CHN | 1/4"-20 | 5-Ribbed Grip | __ | 1/2" | 1 3/4" | __ | 3/8" | 3/4" | 3/8" |
| 6479K33CHN | 1/4"-20 | 5-Ribbed Grip | __ | 9/16" | 7/8" | __ | 3/8" | 5/8" | 1/8" |
| 6479K35CHN | 1/4"-20 | 5-Ribbed Grip | __ | 9/16" | 1 1/2" | __ | 3/8" | 11/16" | 3/8" |
| 6479K34CHN | 1/4"-20 | 5-Ribbed Grip | __ | 3/4" | 1 1/4" | __ | 3/8" | 5/8" | 3/8" |
| 6479K72CHN | 1/4"-20 | 5-Ribbed Grip | __ | 3/4" | 1 3/4" | __ | 3/8" | 3/4" | 5/8" |
| 6479K81CHN | 1/4"-20 | 5-Ribbed Grip | __ | 1" | 7/8" | __ | 3/8" | 5/8" | 3/8" |
| 6479K86CHN | 1/4"-20 | 5-Ribbed Grip | __ | 1" | 1 1/4" | __ | 3/8" | 5/8" | 3/8" |
| 6479K92CHN | 1/4"-20 | 5-Ribbed Grip | __ | 1" | 1 1/2" | __ | 3/8" | 11/16" | 3/8" |
| 6479K44CHN | 1/4"-20 | 5-Ribbed Grip | __ | 1" | 2" | __ | 11/16" | __ | __ |
| 6479K91CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1/2" | 1 1/4" | __ | 3/8" | 5/8" | 3/8" |
| 6479K36CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1/2" | 1 1/2" | __ | 3/8" | 11/16" | 3/8" |
| 6479K45CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1/2" | 1 3/4" | __ | 3/8" | 3/4" | 3/8" |
| 6479K37CHN | 5/16"-18 | 5-Ribbed Grip | __ | 3/4" | 1 3/4" | __ | 3/8" | 3/4" | 3/8" |
| 6479K74CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1" | 7/8" | __ | 3/8" | 5/8" | 1/4" |
| 6479K46CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1" | 1 3/4" | __ | 3/8" | 3/4" | 3/8" |
| 6479K39CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1" | 2" | __ | 11/16" | __ | __ |
| 6479K93CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1" | 2 1/2" | __ | 11/16" | 1 1/4" | 5/8" |
| 6479K38CHN | 5/16"-18 | 5-Ribbed Grip | __ | 1 1/2" | 1 3/4" | __ | 3/8" | 3/4" | 3/8" |
| 6479K89CHN | 3/8"-16 | 5-Ribbed Grip | __ | 1/2" | 1 1/4" | __ | 3/8" | 5/8" | 3/8" |
| 6479K87CHN | 3/8"-16 | 5-Ribbed Grip | __ | 1" | 1 1/4" | __ | 3/8" | 5/8" | 3/8" |
| 6479K41CHN | 3/8"-16 | 5-Ribbed Grip | __ | 1" | 2" | __ | 11/16" | __ | __ |
| 6479K42CHN | 3/8"-16 | 5-Ribbed Grip | __ | 1" | 2 1/2" | __ | 11/16" | 1 1/4" | 5/8" |
| 6479K43CHN | 3/8"-16 | 5-Ribbed Grip | __ | 1" | 3" | __ | 9/16" | 1 1/4" | 5/8" |
| 6479K22CHN | 1/2"-13 | 5-Ribbed Grip | __ | 1" | 2 1/2" | __ | 11/16" | 1 1/4" | 5/8" |
| 6479K24CHN | 1/2"-13 | 5-Ribbed Grip | __ | 1" | 3" | __ | 13/16" | 1 1/4" | 11/16" |
| Black Nylon Plastic | |||||||||
| 62935K11CHN | M4 | 6-Ribbed Grip | 0.7mm | 10mm | 16mm | __ | 8mm | 11mm | 5mm |
| 62935K12CHN | M5 | 6-Ribbed Grip | 0.8mm | 16mm | 20mm | __ | 10mm | 12mm | 6mm |
| 62935K13CHN | M6 | 6-Ribbed Grip | 1mm | 16mm | 25mm | __ | 11mm | 16mm | 8mm |
| 62935K14CHN | M8 | 6-Ribbed Grip | 1.25mm | 16mm | 32mm | __ | 13mm | 17mm | 9mm |
| Black Phenolic Plastic | |||||||||
| 6477K32CHN | 1/4"-20 | 7-Two Arm Grip | __ | 1/2" | __ | 1 1/8" | 5/8" | 1/2" | 1/8" |
| 65035K71CHN | 1/4"-20 | 7-Two Arm Grip | __ | 9/16" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K23CHN | 1/4"-20 | 7-Two Arm Grip | __ | 3/4" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K31CHN | 1/4"-20 | 7-Two Arm Grip | __ | 1" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K34CHN | 1/4"-20 | 7-Two Arm Grip | __ | 1" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K49CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1/2" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K72CHN | 5/16"-18 | 7-Two Arm Grip | __ | 3/4" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K53CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K24CHN | 3/8"-16 | 7-Two Arm Grip | __ | 1" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K78CHN | 3/8"-16 | 7-Two Arm Grip | __ | 1" | __ | 2" | 5/8" | 3/4" | 1/2" |
| 65035K25CHN | M6 | 7-Two Arm Grip | 1mm | 30mm | __ | 29mm | 19mm | 13mm | __ |
| 65035K38CHN | M6 | 7-Two Arm Grip | 1mm | 30mm | __ | 51mm | 29mm | 19mm | __ |
| 65035K28CHN | M8 | 7-Two Arm Grip | 1.25mm | 30mm | __ | 29mm | 19mm | 13mm | __ |
| 65035K57CHN | M8 | 7-Two Arm Grip | 1.25mm | 30mm | __ | 51mm | 29mm | 19mm | __ |
| Black Nylon Plastic | |||||||||
| 65035K14CHN | 1/4"-20 | 7-Two Arm Grip | __ | 1" | __ | 1 1/8" | 9/16" | 1/2" | 1/8" |
| 65035K52CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1/2" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K73CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1/2" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K55CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K16CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K75CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1" | __ | 3 1/2" | 7/8" | 15/16" | 1/4" |
| 65035K74CHN | 3/8"-16 | 7-Two Arm Grip | __ | 1/2" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K22CHN | 3/8"-16 | 7-Two Arm Grip | __ | 1" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K18CHN | 3/8"-16 | 7-Two Arm Grip | __ | 1" | __ | 2 1/2" | 5/8" | 3/4" | 1/2" |
| 65035K76CHN | 3/8"-16 | 7-Two Arm Grip | __ | 1" | __ | 3 1/2" | 7/8" | 15/16" | 1/4" |
| Black Polypropylene Plastic | |||||||||
| 3708T15CHN | 5/16"-18 | 7-Two Arm Grip | __ | 1/2" | __ | 1 1/2" | 5/8" | 3/4" | 1/8" |
| 65035K77CHN | 1/2"-13 | 7-Two Arm Grip | __ | 1" | __ | 3 1/2" | 7/8" | 15/16" | 1/4" |
| Black Polypropylene Plastic | |||||||||
| 65035K11CHN | 1/4"-20 | 8-Two Arm Grip | __ | 1/2" | __ | 2 1/4" | 3/4" | 3/4" | 11/16" |
| 65035K51CHN | 5/16"-18 | 8-Two Arm Grip | __ | 1/2" | __ | 2 1/4" | 3/4" | 3/4" | 11/16" |
| 65035K54CHN | 5/16"-18 | 8-Two Arm Grip | __ | 1" | __ | 2 1/4" | 3/4" | 3/4" | 11/16" |
| 65035K48CHN | 3/8"-16 | 8-Two Arm Grip | __ | 1 1/2" | __ | 2 1/4" | 3/4" | 3/4" | 11/16" |
| Black Plastic | |||||||||
| 65035K85CHN | M6 | 9-Two Arm Grip | 1mm | 15mm | __ | 35mm | 10mm | 15.5mm | 8mm |
| 65035K87CHN | M6 | 9-Two Arm Grip | 1mm | 15mm | __ | 45mm | 13mm | 20mm | 11mm |
| 65035K86CHN | M6 | 9-Two Arm Grip | 1mm | 30mm | __ | 35mm | 10mm | 15.5mm | 8mm |
| 65035K88CHN | M6 | 9-Two Arm Grip | 1mm | 30mm | __ | 45mm | 13mm | 20mm | 11mm |
| 65035K89CHN | M8 | 9-Two Arm Grip | 1.25mm | 15mm | __ | 45mm | 13mm | 20mm | 11mm |
| 65035K91CHN | M8 | 9-Two Arm Grip | 1.25mm | 30mm | __ | 45mm | 13mm | 20mm | 11mm |
| Black Nylon Plastic | |||||||||
| 65035K36CHN | 1/4"-20 | 10-Two Arm Grip | __ | 1/2" | __ | 3" | 3/8" | 3/4" | 13/16" |
| 65035K37CHN | 5/16"-18 | 10-Two Arm Grip | __ | 1" | __ | 3" | 3/8" | 3/4" | 13/16" |
| Black Polypropylene Plastic | |||||||||
| 65035K47CHN | 10-32 | 11-Two Arm Grip | __ | 3/4" | __ | 1 1/4" | 3/4" | 1/2" | 1/8" |
| 65035K39CHN | 1/4"-20 | 11-Two Arm Grip | __ | 1/2" | __ | 1 1/4" | 3/4" | 1/2" | 1/8" |
| Black Phenolic Plastic | |||||||||
| 57715K36CHN | 8-32 | 12-Three Arm Grip | __ | 1/2" | 7/8" | __ | 3/8" | 1/2" | 3/8" |
| 57715K28CHN | 10-32 | 12-Three Arm Grip | __ | 7/16" | 1 1/8" | __ | 1/2" | 1/2" | 1/4" |
| 57715K39CHN | 10-32 | 12-Three Arm Grip | __ | 1/2" | 7/8" | __ | 3/8" | 1/2" | 3/8" |
| 57715K37CHN | 10-32 | 12-Three Arm Grip | __ | 3/4" | 7/8" | __ | 3/8" | 1/2" | 3/8" |
| 57715K46CHN | 10-32 | 12-Three Arm Grip | __ | 1" | 1 1/8" | __ | 1/2" | 1/2" | 1/4" |
| 57715K51CHN | 10-32 | 12-Three Arm Grip | __ | 1" | 1 1/2" | __ | 5/8" | 5/8" | 1/8" |
| 57715K38CHN | 1/4"-20 | 12-Three Arm Grip | __ | 1/2" | 7/8" | __ | 3/8" | 1/2" | 3/8" |
| 57715K16CHN | 1/4"-20 | 12-Three Arm Grip | __ | 1/2" | 1 1/8" | __ | 1/2" | 1/2" | 1/4" |
| 57715K29CHN | 1/4"-20 | 12-Three Arm Grip | __ | 9/16" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K44CHN | 1/4"-20 | 12-Three Arm Grip | __ | 3/4" | 1 1/8" | __ | 1/2" | 1/2" | 1/4" |
| 57715K55CHN | 1/4"-20 | 12-Three Arm Grip | __ | 3/4" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K47CHN | 1/4"-20 | 12-Three Arm Grip | __ | 3/4" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K53CHN | 1/4"-20 | 12-Three Arm Grip | __ | 3/4" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K45CHN | 1/4"-20 | 12-Three Arm Grip | __ | 1" | 1 1/8" | __ | 1/2" | 1/2" | 1/4" |
| 57715K49CHN | 1/4"-20 | 12-Three Arm Grip | __ | 1" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K78CHN | 1/4"-20 | 12-Three Arm Grip | __ | 1" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K84CHN | 1/4"-20 | 12-Three Arm Grip | __ | 1 1/2" | 1 1/8" | __ | 1/2" | 1/2" | 1/4" |
| 57715K56CHN | 1/4"-20 | 12-Three Arm Grip | __ | 1 1/2" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K58CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1/2" | 1 1/2" | __ | 5/8" | 5/8" | 1/8" |
| 57715K68CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1/2" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K59CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1/2" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K31CHN | 5/16"-18 | 12-Three Arm Grip | __ | 3/4" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K17CHN | 5/16"-18 | 12-Three Arm Grip | __ | 3/4" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K61CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K67CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K62CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K81CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K83CHN | 3/8"-16 | 12-Three Arm Grip | __ | 1/2" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K32CHN | 3/8"-16 | 12-Three Arm Grip | __ | 3/4" | 2" | __ | 5/8" | 3/4" | 5/8" |
| 57715K79CHN | 3/8"-16 | 12-Three Arm Grip | __ | 1" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K57CHN | 3/8"-16 | 12-Three Arm Grip | __ | 1 1/2" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K54CHN | 3/8"-16 | 12-Three Arm Grip | __ | 1 1/2" | 2" | __ | 5/8" | 3/4" | 3/8" |
| 57715K185CHN | M8 | 12-Three Arm Grip | 1.25mm | 30mm | 51mm | __ | 32mm | 19mm | __ |
| Black Nylon Plastic | |||||||||
| 57715K184CHN | M6 | 12-Three Arm Grip | 1mm | 30mm | 38mm | __ | 22mm | 16mm | __ |
| 57715K181CHN | M8 | 12-Three Arm Grip | 1.25mm | 30mm | 38mm | __ | 22mm | 16mm | __ |
| 57715K186CHN | M8 | 12-Three Arm Grip | 1.25mm | 30mm | 51mm | __ | 25mm | 19mm | __ |
| 57715K187CHN | M10 | 12-Three Arm Grip | 1.5mm | 30mm | 51mm | __ | 25mm | 19mm | __ |
| Black Polypropylene Plastic | |||||||||
| 57715K71CHN | 1/4"-20 | 12-Three Arm Grip | __ | 9/16" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K72CHN | 5/16"-18 | 12-Three Arm Grip | __ | 1/2" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| 57715K73CHN | 3/8"-16 | 12-Three Arm Grip | __ | 1" | 1 1/2" | __ | 5/8" | 5/8" | 1/4" |
| Black Phenolic Plastic | ||||||||
| Part NO. | Thread Size | Style | Thread Pitch | Stud Lg. | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. |
| 57715K42CHN | 1/4"-20 | 13-Three Arm Grip | __ | 1/2" | 1 1/4" | 7/16" | 3/4" | 7/16" |
| 57715K43CHN | 1/4"-20 | 13-Three Arm Grip | __ | 3/4" | 1 1/4" | 7/16" | 3/4" | 7/16" |
| 57715K63CHN | 5/16"-18 | 13-Three Arm Grip | __ | 1/2" | 1 1/4" | 7/16" | 3/4" | 7/16" |
| 57715K87CHN | 5/16"-18 | 13-Three Arm Grip | __ | 1/2" | 2 1/8" | 11/16" | 1" | 3/16" |
| 57715K41CHN | 5/16"-18 | 13-Three Arm Grip | __ | 3/4" | 2 1/8" | 11/16" | 1" | 3/16" |
| 57715K64CHN | 5/16"-18 | 13-Three Arm Grip | __ | 1" | 1 1/4" | 7/16" | 3/4" | 7/16" |
| 57715K88CHN | 5/16"-18 | 13-Three Arm Grip | __ | 1" | 2 1/8" | 11/16" | 1" | 3/16" |
| Black Phenolic Plastic | ||||||||
| 5993K47CHN | 8-32 | 15-Four Arm Grip | __ | 9/16" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K48CHN | 8-32 | 15-Four Arm Grip | __ | 1" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K73CHN | 10-32 | 15-Four Arm Grip | __ | 1/2" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K74CHN | 10-32 | 15-Four Arm Grip | __ | 1" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K24CHN | 1/4"-20 | 15-Four Arm Grip | __ | 1/2" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K61CHN | 1/4"-20 | 15-Four Arm Grip | __ | 1/2" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K12CHN | 1/4"-20 | 15-Four Arm Grip | __ | 3/4" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K18CHN | 1/4"-20 | 15-Four Arm Grip | __ | 3/4" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K67CHN | 1/4"-20 | 15-Four Arm Grip | __ | 1" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K75CHN | 1/4"-20 | 15-Four Arm Grip | __ | 1" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K94CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1/2" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K71CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1/2" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K68CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K95CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K62CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K25CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1 1/4" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K26CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1 3/4" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 5993K58CHN | 3/8"-16 | 15-Four Arm Grip | __ | 1/2" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K41CHN | 3/8"-16 | 15-Four Arm Grip | __ | 1" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K42CHN | 3/8"-16 | 15-Four Arm Grip | __ | 1 1/2" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K43CHN | 3/8"-16 | 15-Four Arm Grip | __ | 2" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K59CHN | 3/8"-16 | 15-Four Arm Grip | __ | 2 1/2" | 2" | 1/2" | 7/8" | 1/2" |
| 5993K72CHN | 1/2"-13 | 15-Four Arm Grip | __ | 3/4" | 2" | 1/2" | 7/8" | 1/2" |
| 6390K51CHN | M5 | 15-Four Arm Grip | 0.8mm | 15mm | 25mm | 10mm | 11mm | 5mm |
| 6390K52CHN | M6 | 15-Four Arm Grip | 1mm | 30mm | 32mm | 11mm | 14mm | 10mm |
| 6390K53CHN | M8 | 15-Four Arm Grip | 1.25mm | 30mm | 40mm | 12mm | 18mm | 14mm |
| 6390K54CHN | M10 | 15-Four Arm Grip | 1.5mm | 35mm | 50mm | 14mm | 22mm | 18mm |
| 6390K55CHN | M12 | 15-Four Arm Grip | 1.75mm | 40mm | 63mm | 17mm | 26mm | 25mm |
| Black Nylon Plastic | ||||||||
| 5993K16CHN | 10-32 | 15-Four Arm Grip | __ | 7/16" | 1" | 3/8" | 7/16" | 3/8" |
| 5993K51CHN | 1/4"-20 | 15-Four Arm Grip | __ | 1/2" | 1 3/4" | 9/16" | 3/4" | 3/8" |
| 5993K79CHN | 1/4"-20 | 15-Four Arm Grip | __ | 1/2" | 2 1/4" | 9/16" | 1" | 7/16" |
| 5993K87CHN | 1/4"-20 | 15-Four Arm Grip | __ | 1" | 2 1/4" | 9/16" | 1" | 7/16" |
| 5993K52CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1/2" | 1 3/4" | 9/16" | 3/4" | 3/8" |
| 5993K88CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1" | 2 1/4" | 9/16" | 1" | 7/16" |
| 5993K53CHN | 3/8"-16 | 15-Four Arm Grip | __ | 1/2" | 1 3/4" | 9/16" | 3/4" | 3/8" |
| 5993K82CHN | 3/8"-16 | 15-Four Arm Grip | __ | 1/2" | 2 1/4" | 9/16" | 1" | 7/16" |
| 5993K89CHN | 3/8"-16 | 15-Four Arm Grip | __ | 1" | 2 1/4" | 9/16" | 1" | 7/16" |
| 5993K86CHN | 3/8"-16 | 15-Four Arm Grip | __ | 1 1/2" | 2 1/4" | 9/16" | 1" | 7/16" |
| 5993K392CHN | M5 | 15-Four Arm Grip | 0.8mm | 20mm | 32mm | 22mm | 13mm | __ |
| 5993K391CHN | M6 | 15-Four Arm Grip | 1mm | 30mm | 32mm | 22mm | 13mm | __ |
| 5993K397CHN | M8 | 15-Four Arm Grip | 1.25mm | 30mm | 57mm | 25mm | 25mm | __ |
| 5993K393CHN | M10 | 15-Four Arm Grip | 1.5mm | 30mm | 44mm | 25mm | 19mm | __ |
| 5993K394CHN | M10 | 15-Four Arm Grip | 1.5mm | 30mm | 57mm | 25mm | 25mm | __ |
| Black Polypropylene Plastic | ||||||||
| 5993K81CHN | 5/16"-18 | 15-Four Arm Grip | __ | 1/2" | 2 1/4" | 9/16" | 1" | 7/16" |
| Black Nylon Plastic | ||||||||
| 59625K77CHN | 1/4"-20 | 16-Five Arm Grip | __ | 1" | 2 1/4" | 1/2" | 7/8" | 5/16" |
| 59625K12CHN | M6 | 16-Five Arm Grip | 1mm | 30mm | 57mm | 20mm | 21mm | __ |
| 59625K11CHN | M8 | 16-Five Arm Grip | 1.25mm | 30mm | 57mm | 20mm | 21mm | __ |
| Black Polypropylene Plastic | ||||||||
| 59625K39CHN | 1/4"-20 | 16-Five Arm Grip | __ | 1" | 1 1/4" | 7/16" | 3/4" | 5/16" |
| 59625K42CHN | 1/4"-20 | 16-Five Arm Grip | __ | 1 1/2" | 1 3/4" | 7/16" | 3/4" | 5/16" |
| 59625K78CHN | 5/16"-18 | 16-Five Arm Grip | __ | 3/4" | 2 1/4" | 1/2" | 7/8" | 1/4" |
| 59625K41CHN | 5/16"-18 | 16-Five Arm Grip | __ | 1 1/2" | 1 1/4" | 7/16" | 3/4" | 5/16" |
| 59625K43CHN | 5/16"-18 | 16-Five Arm Grip | __ | 2" | 1 3/4" | 7/16" | 3/4" | 3/4" |
| 59625K79CHN | 3/8"-16 | 16-Five Arm Grip | __ | 1" | 2 1/4" | 1/2" | 7/8" | 1/4" |
| Black Phenolic Plastic | ||||||||
| 7129T33CHN | 1/4"-20 | 17-Five Arm, Knurled Grip | __ | 1/2" | 1 3/16" | 7/16" | 13/16" | 3/8" |
| 7129T34CHN | 1/4"-20 | 17-Five Arm, Knurled Grip | __ | 1/2" | 1 5/8" | 5/8" | 1 3/16" | 1/4" |
| 7129T21CHN | 5/16"-18 | 17-Five Arm, Knurled Grip | __ | 1/2" | 1 3/16" | 7/16" | 13/16" | 3/8" |
| 7129T27CHN | 5/16"-18 | 17-Five Arm, Knurled Grip | __ | 1/2" | 1 5/8" | 5/8" | 1 3/16" | 1/4" |
| 7129T22CHN | 5/16"-18 | 17-Five Arm, Knurled Grip | __ | 1" | 1 3/16" | 7/16" | 13/16" | 3/8" |
| 7129T28CHN | 5/16"-18 | 17-Five Arm, Knurled Grip | __ | 1" | 1 5/8" | 5/8" | 1 3/16" | 1/4" |
| Black Nylon Plastic | ||||||||
| 6092K41CHN | 1/4"-20 | 18-Seven Arm Grip | __ | 9/16" | 1" | 5/16" | 1/2" | 5/16" |
| 6092K43CHN | 1/4"-20 | 18-Seven Arm Grip | __ | 1 1/8" | 1" | 5/16" | 1/2" | 5/16" |
| 6092K45CHN | 1/4"-20 | 18-Seven Arm Grip | __ | 1 5/16" | 1" | 5/16" | 1/2" | 5/16" |
| 6092K47CHN | 5/16"-18 | 18-Seven Arm Grip | __ | 11/16" | 1 9/16" | 1/2" | 11/16" | 1/2" |
| 6092K48CHN | 5/16"-18 | 18-Seven Arm Grip | __ | 15/16" | 1 9/16" | 1/2" | 11/16" | 1/2" |
| 6092K52CHN | 5/16"-18 | 18-Seven Arm Grip | __ | 1 7/16" | 1 9/16" | 1/2" | 11/16" | 1/2" |
| 6092K54CHN | 3/8"-16 | 18-Seven Arm Grip | __ | 11/16" | 2" | 9/16" | 7/8" | 11/16" |
| 6092K56CHN | 3/8"-16 | 18-Seven Arm Grip | __ | 1 3/16" | 2" | 9/16" | 7/8" | 11/16" |
| 6092K58CHN | 3/8"-16 | 18-Seven Arm Grip | __ | 1 11/16" | 2" | 9/16" | 7/8" | 11/16" |
| 6092K63CHN | 1/2"-13 | 18-Seven Arm Grip | __ | 13/16" | 2 1/2" | 3/4" | 1" | 13/16" |
| 2907T52CHN | M5 | 18-Seven Arm Grip | 0.8mm | 15mm | 25mm | 8mm | 12mm | 8mm |
| 2907T54CHN | M5 | 18-Seven Arm Grip | 0.8mm | 25mm | 25mm | 8mm | 12mm | 8mm |
| 60795K31CHN | M5 | 18-Seven Arm Grip | 0.8mm | 25mm | 25mm | 8mm | 12mm | 8mm |
| 2907T56CHN | M6 | 18-Seven Arm Grip | 1mm | 16mm | 32mm | 10mm | 14mm | 10mm |
| 2907T22CHN | M6 | 18-Seven Arm Grip | 1mm | 20mm | 32mm | 10mm | 12mm | 10mm |
| 60795K32CHN | M6 | 18-Seven Arm Grip | 1mm | 21mm | 32mm | 10mm | 14mm | 10mm |
| 2907T59CHN | M6 | 18-Seven Arm Grip | 1mm | 30mm | 32mm | 10mm | 14mm | 10mm |
| 2907T25CHN | M6 | 18-Seven Arm Grip | 1mm | 35mm | 32mm | 10mm | 12mm | 10mm |
| 2907T27CHN | M8 | 18-Seven Arm Grip | 1.25mm | 20mm | 40mm | 13mm | 14mm | 13mm |
| 2907T62CHN | M8 | 18-Seven Arm Grip | 1.25mm | 25mm | 40mm | 12mm | 18mm | 13mm |
| 60795K33CHN | M8 | 18-Seven Arm Grip | 1.25mm | 25mm | 40mm | 12mm | 18mm | 13mm |
| 2907T64CHN | M8 | 18-Seven Arm Grip | 1.25mm | 40mm | 40mm | 12mm | 18mm | 13mm |
| 2907T31CHN | M8 | 18-Seven Arm Grip | 1.25mm | 40mm | 40mm | 13mm | 14mm | 13mm |
| 2907T66CHN | M10 | 18-Seven Arm Grip | 1.5mm | 25mm | 50mm | 15mm | 22mm | 17mm |
| 2907T33CHN | M10 | 18-Seven Arm Grip | 1.5mm | 30mm | 50mm | 15mm | 18mm | 17mm |
| 60795K34CHN | M10 | 18-Seven Arm Grip | 1.5mm | 50mm | 50mm | 15mm | 22mm | 17mm |
| 2907T36CHN | M10 | 18-Seven Arm Grip | 1.5mm | 55mm | 50mm | 15mm | 18mm | 17mm |
| 2907T69CHN | M10 | 18-Seven Arm Grip | 1.5mm | 55mm | 50mm | 15mm | 22mm | 17mm |
| 2907T71CHN | M12 | 18-Seven Arm Grip | 1.75mm | 30mm | 63mm | 19mm | 26mm | 21mm |
| 2907T38CHN | M12 | 18-Seven Arm Grip | 1.75mm | 35mm | 63mm | 19mm | 20mm | 21mm |
| 60795K35CHN | M12 | 18-Seven Arm Grip | 1.75mm | 40mm | 63mm | 19mm | 26mm | 21mm |
| 2907T73CHN | M12 | 18-Seven Arm Grip | 1.75mm | 50mm | 63mm | 19mm | 26mm | 21mm |
| 2907T42CHN | M12 | 18-Seven Arm Grip | 1.75mm | 60mm | 63mm | 19mm | 20mm | 21mm |
| Black Phenolic Plastic | ||||||||
| 6479K23CHN | 3/8"-16 | 20-Eight Arm Grip | __ | 3/4" | 2 3/8" | 3/8" | 1 3/4" | 7/16" |
| Choose-a-Color Threaded-Stud Knobs |
| Nylon Plastic | ||||||||
| Part NO. | Thread Size | Style | Stud Lg. | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. | Color |
| 7921K21CHN | 1/4"-20 | 1-Four Arm Grip | 1" | 1 3/4" | 9/16" | 3/4" | 7/16" | Black,Blue,Green,Orange,Red,White |
| 7921K22CHN | 5/16"-18 | 1-Four Arm Grip | 1" | 2 1/4" | 9/16" | 1" | 7/16" | Black,Blue,Green,Orange,Red,White |
| 7921K23CHN | 3/8"-16 | 1-Four Arm Grip | 1" | 2 1/4" | 9/16" | 1" | 7/16" | Black,Blue,Green,Orange,Red,White |
| 7921K24CHN | 1/2"-13 | 1-Four Arm Grip | 1" | 2 1/4" | 9/16" | 1" | 7/16" | Black,Blue,Green,Orange,Red,White |
| Choose-a-Color Threaded-Stud Knobs |
| Black Nylon Plastic | |||||||||
| Part NO. | Thread Size | Style | Thread Pitch | Stud Lg. | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. | Color |
| 3855K21CHN | 10-32 | 2-Seven Arm Grip | __ | 3/8" | 1" | 5/16" | 1/2" | 5/16" | Black,Gray,Red,Yellow |
| 3855K22CHN | 10-32 | 2-Seven Arm Grip | __ | 13/16" | 1" | 5/16" | 1/2" | 5/16" | Black,Gray,Red,Yellow |
| 3855K23CHN | 1/4"-20 | 2-Seven Arm Grip | __ | 13/16" | 1 1/4" | 3/8" | 9/16" | 3/8" | Black,Gray,Red,Yellow |
| 3855K24CHN | 1/4"-20 | 2-Seven Arm Grip | __ | 1 3/16" | 1 1/4" | 3/8" | 9/16" | 3/8" | Black,Gray,Red,Yellow |
| 3855K25CHN | 5/16"-18 | 2-Seven Arm Grip | __ | 13/16" | 1 9/16" | 1/2" | 11/16" | 1/2" | Black,Gray,Red,Yellow |
| 3855K26CHN | 5/16"-18 | 2-Seven Arm Grip | __ | 1 9/16" | 1 9/16" | 1/2" | 11/16" | 1/2" | Black,Gray,Red,Yellow |
| 3855K27CHN | 3/8"-16 | 2-Seven Arm Grip | __ | 13/16" | 2" | 5/8" | 7/8" | 11/16" | Black,Gray,Red,Yellow |
| 3855K28CHN | 3/8"-16 | 2-Seven Arm Grip | __ | 1 9/16" | 2" | 5/8" | 7/8" | 11/16" | Black,Gray,Red,Yellow |
| 3855K63CHN | M6 | 2-Seven Arm Grip | 1mm | 20mm | 32mm | 10mm | 14mm | 10mm | Black,Gray,Red,Yellow |
| 3855K64CHN | M6 | 2-Seven Arm Grip | 1mm | 30mm | 32mm | 10mm | 14mm | 10mm | Black,Gray,Red,Yellow |
| 3855K68CHN | M8 | 2-Seven Arm Grip | 1.25mm | 30mm | 40mm | 12mm | 18mm | 13mm | Black,Gray,Red,Yellow |
| 3855K69CHN | M8 | 2-Seven Arm Grip | 1.25mm | 40mm | 40mm | 12mm | 18mm | 13mm | Black,Gray,Red,Yellow |
| 3855K73CHN | M10 | 2-Seven Arm Grip | 1.5mm | 40mm | 50mm | 15mm | 22mm | 17mm | Black,Gray,Red,Yellow |
| 3855K74CHN | M10 | 2-Seven Arm Grip | 1.5mm | 50mm | 50mm | 15mm | 22mm | 17mm | Black,Gray,Red,Yellow |
| Comfort-Grip Threaded-Stud Knobs |
| Black Rubber-Coated Polypropylene Plastic | |||||||||
| Part NO. | Thread Size | Style | Thread Pitch | Stud Lg. | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. | Stud Material |
| 6214K44CHN | 1/4"-20 | 1-Knurled Grip | __ | 1 1/4" | 1 9/16" | 5/16" | 3/4" | 5/16" | Zinc-Plated Steel |
| 6214K46CHN | 1/4"-20 | 1-Knurled Grip | __ | 1 1/4" | 2" | 7/16" | 3/4" | 3/16" | Zinc-Plated Steel |
| 6214K52CHN | 5/16"-18 | 1-Knurled Grip | __ | 1 1/2" | 1 9/16" | 5/16" | 3/4" | 5/16" | Zinc-Plated Steel |
| 6214K56CHN | 5/16"-18 | 1-Knurled Grip | __ | 1 1/2" | 2" | 7/16" | 3/4" | 3/16" | Zinc-Plated Steel |
| 6214K65CHN | 3/8"-16 | 1-Knurled Grip | __ | 1 1/2" | 1 9/16" | 5/16" | 3/4" | 5/16" | Zinc-Plated Steel |
| 6214K72CHN | 3/8"-16 | 1-Knurled Grip | __ | 1 1/2" | 2" | 7/16" | 3/4" | 3/16" | Zinc-Plated Steel |
| 6214K67CHN | 3/8"-16 | 1-Knurled Grip | __ | 1 3/4" | 1 9/16" | 5/16" | 3/4" | 5/16" | Zinc-Plated Steel |
| 6214K73CHN | 3/8"-16 | 1-Knurled Grip | __ | 1 3/4" | 2" | 7/16" | 3/4" | 3/16" | Zinc-Plated Steel |
| Black Rubber-Coated Polypropylene Plastic | |||||||||
| 6185K54CHN | 1/4"-20 | 2-Ribbed Grip | __ | 1" | 1 11/16" | 2" | 1 5/16" | 3/16" | Zinc-Plated Steel |
| 6185K65CHN | 1/4"-20 | 2-Ribbed Grip | __ | 1" | 1 7/8" | 2 1/4" | 1 1/2" | 1/4" | Zinc-Plated Steel |
| 6185K72CHN | 5/16"-18 | 2-Ribbed Grip | __ | 1 1/2" | 1 7/8" | 2 1/4" | 1 1/2" | 1/4" | Zinc-Plated Steel |
| 6185K59CHN | 3/8"-16 | 2-Ribbed Grip | __ | 1 1/2" | 1 11/16" | 2" | 1 5/16" | 3/16" | Zinc-Plated Steel |
| 6185K74CHN | 3/8"-16 | 2-Ribbed Grip | __ | 1 1/2" | 1 7/8" | 2 1/4" | 1 1/2" | 1/4" | Zinc-Plated Steel |
| 6185K76CHN | 3/8"-16 | 2-Ribbed Grip | __ | 1 3/4" | 1 7/8" | 2 1/4" | 1 1/2" | 1/4" | Zinc-Plated Steel |
| Black Rubber-Coated Polypropylene Plastic | |||||||||
| 5532T55CHN | 5/16"-18 | 3-Ribbed Grip | __ | 1 3/4" | 2 1/2" | 13/16" | 1 1/4" | 1/2" | Zinc-Plated Steel |
| 5532T57CHN | 3/8"-16 | 3-Ribbed Grip | __ | 2" | 2 1/2" | 13/16" | 1 1/4" | 1/2" | Zinc-Plated Steel |
| 5532T59CHN | 1/2"-13 | 3-Ribbed Grip | __ | 1 1/2" | 2 1/2" | 13/16" | 1 1/4" | 1/2" | Zinc-Plated Steel |
| Black Rubber-Coated Polypropylene Plastic | |||||||||
| 2776K14CHN | 10-32 | 4-Three Arm Grip | __ | 1/2" | 1 3/16" | 1/2" | 1/2" | 1/8" | Zinc-Plated Steel |
| 2776K16CHN | 1/4"-20 | 4-Three Arm Grip | __ | 1/2" | 1 3/16" | 1/2" | 1/2" | 1/8" | Zinc-Plated Steel |
| 2776K19CHN | 1/4"-20 | 4-Three Arm Grip | __ | 1/2" | 1 3/4" | 3/4" | 3/4" | 1/8" | Zinc-Plated Steel |
| 2776K22CHN | 1/4"-20 | 4-Three Arm Grip | __ | 1" | 1 3/4" | 3/4" | 3/4" | 1/8" | Zinc-Plated Steel |
| 2776K25CHN | 5/16"-18 | 4-Three Arm Grip | __ | 1" | 1 3/4" | 3/4" | 3/4" | 1/8" | Zinc-Plated Steel |
| 2776K27CHN | 3/8"-16 | 4-Three Arm Grip | __ | 1" | 2 3/16" | 15/16" | 13/16" | 1/8" | Zinc-Plated Steel |
| 2776K51CHN | M6 | 4-Three Arm Grip | 1mm | 25mm | 30mm | 13mm | 13mm | 4mm | Zinc-Plated Steel |
| 2776K52CHN | M6 | 4-Three Arm Grip | 1mm | 25mm | 45mm | 20mm | 19mm | 3mm | Zinc-Plated Steel |
| 2776K55CHN | M6 | 4-Three Arm Grip | 1mm | 25mm | 55mm | 24mm | 21mm | 4mm | Zinc-Plated Steel |
| 2776K53CHN | M8 | 4-Three Arm Grip | 1.25mm | 25mm | 45mm | 20mm | 19mm | 3mm | Zinc-Plated Steel |
| 2776K56CHN | M8 | 4-Three Arm Grip | 1.25mm | 25mm | 55mm | 24mm | 21mm | 4mm | Zinc-Plated Steel |
| 2776K54CHN | M10 | 4-Three Arm Grip | 1.5mm | 30mm | 45mm | 20mm | 19mm | 3mm | Zinc-Plated Steel |
| 2776K57CHN | M10 | 4-Three Arm Grip | 1.5mm | 30mm | 55mm | 24mm | 21mm | 4mm | Zinc-Plated Steel |
| Black Rubber-Coated Polypropylene Plastic | |||||||||
| 2454K59CHN | 10-32 | 5-Four Arm Grip | __ | 1" | 1 3/8" | 1/2" | 9/16" | 3/16" | Zinc-Plated Steel |
| 2454K64CHN | 10-32 | 5-Four Arm Grip | __ | 1" | 1 3/4" | 5/8" | 11/16" | 1/8" | Zinc-Plated Steel |
| 2454K71CHN | 1/4"-20 | 5-Four Arm Grip | __ | 1" | 2" | 11/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 2454K62CHN | 1/4"-20 | 5-Four Arm Grip | __ | 1 1/4" | 1 3/8" | 1/2" | 9/16" | 3/16" | Zinc-Plated Steel |
| 2454K66CHN | 1/4"-20 | 5-Four Arm Grip | __ | 1 1/4" | 1 3/4" | 5/8" | 11/16" | 1/8" | Zinc-Plated Steel |
| 2454K52CHN | 1/4"-20 | 5-Four Arm Grip | __ | 1 1/4" | 2 1/2" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 2454K56CHN | 1/4"-20 | 5-Four Arm Grip | __ | 1 1/4" | 3" | 1 1/16" | 1 1/2" | 1/4" | Zinc-Plated Steel |
| 2454K67CHN | 5/16"-18 | 5-Four Arm Grip | __ | 1 1/2" | 1 3/4" | 5/8" | 11/16" | 1/8" | Zinc-Plated Steel |
| 2454K72CHN | 5/16"-18 | 5-Four Arm Grip | __ | 1 1/2" | 2" | 11/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 2454K53CHN | 5/16"-18 | 5-Four Arm Grip | __ | 1 1/2" | 2 1/2" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 2454K57CHN | 5/16"-18 | 5-Four Arm Grip | __ | 1 1/2" | 3" | 1 1/16" | 1 1/2" | 1/4" | Zinc-Plated Steel |
| 2454K68CHN | 3/8"-16 | 5-Four Arm Grip | __ | 1 3/4" | 1 3/4" | 5/8" | 11/16" | 1/8" | Zinc-Plated Steel |
| 2454K73CHN | 3/8"-16 | 5-Four Arm Grip | __ | 1 3/4" | 2" | 11/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 2454K54CHN | 3/8"-16 | 5-Four Arm Grip | __ | 1 3/4" | 2 1/2" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 2454K58CHN | 3/8"-16 | 5-Four Arm Grip | __ | 1 3/4" | 3" | 1 1/16" | 1 1/2" | 1/4" | Zinc-Plated Steel |
| Black Rubber-Coated Polypropylene Plastic | |||||||||
| 61125K34CHN | 1/4"-20 | 6-Five Arm Grip | __ | 3/4" | 1 1/2" | 15/16" | 11/16" | 3/16" | Zinc-Plated Steel |
| 61125K43CHN | 1/4"-20 | 6-Five Arm Grip | __ | 1" | 1 1/2" | 15/16" | 11/16" | 3/16" | Zinc-Plated Steel |
| 61125K52CHN | 1/4"-20 | 6-Five Arm Grip | __ | 1" | 1 7/8" | 15/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 61125K61CHN | 1/4"-20 | 6-Five Arm Grip | __ | 1" | 2 1/4" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 61125K45CHN | 1/4"-20 | 6-Five Arm Grip | __ | 1 1/4" | 1 1/2" | 15/16" | 11/16" | 3/16" | Zinc-Plated Steel |
| 61125K54CHN | 1/4"-20 | 6-Five Arm Grip | __ | 1 1/4" | 1 7/8" | 15/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 61125K63CHN | 1/4"-20 | 6-Five Arm Grip | __ | 1 1/4" | 2 1/4" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 61125K35CHN | 5/16"-18 | 6-Five Arm Grip | __ | 1" | 1 7/8" | 15/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 61125K47CHN | 5/16"-18 | 6-Five Arm Grip | __ | 1 1/2" | 1 1/2" | 15/16" | 11/16" | 3/16" | Zinc-Plated Steel |
| 61125K71CHN | 5/16"-18 | 6-Five Arm Grip | __ | 1 1/2" | 1 7/8" | 15/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 61125K65CHN | 5/16"-18 | 6-Five Arm Grip | __ | 1 1/2" | 2 1/4" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 61125K36CHN | 3/8"-16 | 6-Five Arm Grip | __ | 1" | 2 1/4" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 61125K48CHN | 3/8"-16 | 6-Five Arm Grip | __ | 1 1/2" | 1 1/2" | 15/16" | 11/16" | 3/16" | Zinc-Plated Steel |
| 61125K56CHN | 3/8"-16 | 6-Five Arm Grip | __ | 1 1/2" | 1 7/8" | 15/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 61125K67CHN | 3/8"-16 | 6-Five Arm Grip | __ | 1 1/2" | 2 1/4" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 61125K49CHN | 3/8"-16 | 6-Five Arm Grip | __ | 1 3/4" | 1 1/2" | 15/16" | 11/16" | 3/16" | Zinc-Plated Steel |
| 61125K58CHN | 3/8"-16 | 6-Five Arm Grip | __ | 1 3/4" | 1 7/8" | 15/16" | 15/16" | 3/16" | Zinc-Plated Steel |
| 61125K69CHN | 3/8"-16 | 6-Five Arm Grip | __ | 1 3/4" | 2 1/4" | 15/16" | 1 1/4" | 3/16" | Zinc-Plated Steel |
| 61125K75CHN | M6 | 6-Five Arm Grip | 1mm | 25mm | 39mm | 23mm | 17mm | 5mm | Zinc-Plated Steel |
| 61125K78CHN | M6 | 6-Five Arm Grip | 1mm | 25mm | 48mm | 23mm | 24mm | 4mm | Zinc-Plated Steel |
| 61125K82CHN | M6 | 6-Five Arm Grip | 1mm | 25mm | 57mm | 24mm | 32mm | 4mm | Zinc-Plated Steel |
| 61125K76CHN | M8 | 6-Five Arm Grip | 1.25mm | 25mm | 39mm | 23mm | 17mm | 5mm | Zinc-Plated Steel |
| 61125K79CHN | M8 | 6-Five Arm Grip | 1.25mm | 25mm | 48mm | 23mm | 24mm | 4mm | Zinc-Plated Steel |
| 61125K83CHN | M8 | 6-Five Arm Grip | 1.25mm | 25mm | 57mm | 24mm | 32mm | 4mm | Zinc-Plated Steel |
| 61125K77CHN | M10 | 6-Five Arm Grip | 1.5mm | 30mm | 39mm | 23mm | 17mm | 5mm | Zinc-Plated Steel |
| 61125K81CHN | M10 | 6-Five Arm Grip | 1.5mm | 30mm | 48mm | 23mm | 24mm | 4mm | Zinc-Plated Steel |
| 61125K84CHN | M10 | 6-Five Arm Grip | 1.5mm | 30mm | 57mm | 24mm | 32mm | 4mm | Zinc-Plated Steel |
| Vibration-Resistant Threaded-Stud Knobs |
| Black Phenolic Plastic | |||||||||
| Part NO. | Thread Size | Style | Thread Pitch | Stud Lg. | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. | Stud Material |
| 7639K13CHN | 10-32 | Ribbed Grip | __ | 1/2" | 7/8" | 3/8" | 5/8" | 1/8" | Zinc-Plated Steel |
| 7639K15CHN | 1/4"-20 | Ribbed Grip | __ | 9/16" | 7/8" | 3/8" | 5/8" | 1/8" | Zinc-Plated Steel |
| 7639K17CHN | 1/4"-20 | Ribbed Grip | __ | 9/16" | 1 1/2" | 3/8" | 11/16" | 3/8" | Zinc-Plated Steel |
| 7639K19CHN | 1/4"-20 | Ribbed Grip | __ | 3/4" | 1 1/4" | 3/8" | 5/8" | 3/8" | Zinc-Plated Steel |
| 7639K21CHN | 5/16"-18 | Ribbed Grip | __ | 3/4" | 1 3/4" | 3/8" | 3/4" | 3/8" | Zinc-Plated Steel |
| Black Phenolic Plastic | |||||||||
| 7639K43CHN | 1/4"-20 | Four Arm Grip | __ | 1" | 1 1/2" | 1/2" | 5/8" | 1/2" | Zinc-Plated Steel |
| 7639K45CHN | 5/16"-18 | Four Arm Grip | __ | 1" | 1 1/2" | 1/2" | 5/8" | 1/2" | Zinc-Plated Steel |
| 7639K47CHN | 3/8"-16 | Four Arm Grip | __ | 1" | 2" | 1/2" | 7/8" | 1/2" | Zinc-Plated Steel |
| 7639K49CHN | 1/2"-13 | Four Arm Grip | __ | 3/4" | 2" | 1/2" | 7/8" | 1/2" | Zinc-Plated Steel |
| Black Polypropylene Plastic | |||||||||
| 7639K118CHN | M6 | Five Arm Grip | 1 mm | 20mm | 44mm | 11mm | 19mm | 8mm | Zinc-Plated Steel |
| 7639K115CHN | M6 | Five Arm Grip | 1 mm | 20mm | 57mm | 12mm | 21mm | 7mm | Zinc-Plated Steel |
| 7639K116CHN | M10 | Five Arm Grip | 1.5 mm | 30mm | 57mm | 12mm | 21mm | 7mm | Zinc-Plated Steel |
| Tethered Threaded-Stud Knobs |
| Black Nylon Plastic | ||||||||||
| Part NO. | Style | Thread Size | Thread Pitch/mm | Stud Lg. | Head Dia. | Head Ht./mm | Hub Dia. | Hub Ht./mm | Lanyard Lg./mm |
Eye Dia./mm |
| 2724N11CHN | Seven Arm Grip | M5 | 0.8 | 10 mm | 25 | 8 | 12 | 8 | 200 | 5 |
| 2724N12CHN | Seven Arm Grip | M6 | 1 | 25 mm | 32 | 10 | 14 | 10 | 200 | 5 |
| 2724N13CHN | Seven Arm Grip | M10 | 1.5 | 30 mm | 50 | 15 | 22 | 17 | 200 | 5 |
| Left-Hand Threaded-Stud Knobs |
| Black Phenolic Plastic | |||||||
| Part NO. | Style | Thread Size | Stud Lg. | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. |
| 7222K23CHN | 2-Ribbed Grip | 1/4"-20 | 9/16" | 7/8" | 3/8" | 5/8" | 1/8" |
| 7222K27CHN | 2-Ribbed Grip | 1/4"-20 | 9/16" | 1 1/2" | 3/8" | 11/16" | 3/8" |
| 7222K25CHN | 2-Ribbed Grip | 1/4"-20 | 3/4" | 1 1/4" | 3/8" | 5/8" | 3/8" |
| Black Phenolic Plastic | |||||||
| 7222K41CHN | 3-Four Arm Grip | 1/4"-20 | 1" | 1 1/2" | 1/2" | 5/8" | 1/2" |
| 7222K45CHN | 3-Four Arm Grip | 3/8"-16 | 1" | 2" | 1/2" | 7/8" | 1/2" |
| Metal-Detectable Threaded-Stud Knobs |
| Blue Nylon Plastic | ||||||||
| Part NO. | Style | Thread Size | Thread Pitch/mm | Stud Lg./mm | Head Dia./mm | Head Ht./mm | Hub Dia./mm | Hub Ht./mm |
| 3575N11CHN | Three Arm Grip | M8 | 1.25 | 20 | 40 | 13.5 | 16 | 13.5 |
| 3575N12CHN | Three Arm Grip | M8 | 1.25 | 30 | 40 | 13.5 | 16 | 13.5 |
| 3575N13CHN | Three Arm Grip | M10 | 1.5 | 30 | 50 | 15 | 19 | 15 |
| 3575N14CHN | Three Arm Grip | M10 | 1.5 | 40 | 50 | 15 | 19 | 15 |
| Screw-Head Mount Knobs |
| Acetal Plastic-For Socket Head Screws | ||||||
| Part NO. | Style | Thread Size | Head Dia. | Head Wd. | Head Ht. | Color |
| 94052A021CHN | 1-Knurled Grip | No. 4 | 5/16" | __ | 11/64" | Black,Gray,Red,Yellow |
| 94052A023CHN | 1-Knurled Grip | No. 6 | 3/8" | __ | 3/16" | Black,Gray,Red,Yellow |
| 94052A025CHN | 1-Knurled Grip | No. 8 | 1/2" | __ | 7/32" | Black,Gray,Red,Yellow |
| 94052A031CHN | 1-Knurled Grip | No. 10 | 5/8" | __ | 1/4" | Black,Gray,Red,Yellow |
| 94052A033CHN | 1-Knurled Grip | 1/4" | 3/4" | __ | 5/16" | Black,Gray,Red,Yellow |
| 94052A034CHN | 1-Knurled Grip | 1/4" | 1" | __ | 5/16" | Black,Gray,Red,Yellow |
| 94052A036CHN | 1-Knurled Grip | 5/16" | 1" | __ | 13/32" | Black,Gray,Red,Yellow |
| 91175A061CHN | 1-Knurled Grip | M3 | 10mm | __ | 4.5mm | Black,Gray,Red,Yellow |
| 91175A062CHN | 1-Knurled Grip | M4 | 13mm | __ | 5.5mm | Black,Gray,Red,Yellow |
| 91175A063CHN | 1-Knurled Grip | M5 | 16mm | __ | 6.6mm | Black,Gray,Red,Yellow |
| 91175A064CHN | 1-Knurled Grip | M6 | 19mm | __ | 7.8mm | Black,Gray,Red,Yellow |
| 91175A065CHN | 1-Knurled Grip | M6 | 26mm | __ | 7.8mm | Black,Gray,Red,Yellow |
| 91175A066CHN | 1-Knurled Grip | M8 | 26mm | __ | 9.8mm | Black,Gray,Red,Yellow |
| Acetal Plastic-For Socket Head Screws | ||||||
| 94052A014CHN | 2-Single Arm Grip | No. 10 | __ | 13/16" | 11/32" | Black,Gray,Red,Yellow |
| 94052A016CHN | 2-Single Arm Grip | 1/4" | __ | 1" | 7/16" | Black,Gray,Red,Yellow |
| 94052A018CHN | 2-Single Arm Grip | 5/16" | __ | 1 3/16" | 17/32" | Black,Gray,Red,Yellow |
| Acetal Plastic-For Socket Head Screws | ||||||
| 94052A051CHN | 3-Two Arm Grip | No. 10 | __ | 1" | 1/4" | Black,Gray,Red,Yellow |
| 94052A053CHN | 3-Two Arm Grip | 1/4" | __ | 1 1/4" | 5/16" | Black,Gray,Red,Yellow |
| 94052A055CHN | 3-Two Arm Grip | 5/16" | __ | 1 1/2" | 13/32" | Black,Gray,Red,Yellow |
| 94052A057CHN | 3-Two Arm Grip | 3/8" | __ | 1 3/4" | 15/32" | Black,Gray,Red,Yellow |
| 91175A081CHN | 3-Two Arm Grip | M5 | __ | 26mm | 6.6mm | Black,Gray,Red,Yellow |
| 91175A082CHN | 3-Two Arm Grip | M6 | __ | 30mm | 7.8mm | Black,Gray,Red,Yellow |
| 91175A083CHN | 3-Two Arm Grip | M8 | __ | 38mm | 10.3mm | Black,Gray,Red,Yellow |
| 91175A084CHN | 3-Two Arm Grip | M10 | __ | 45mm | 12.5mm | Black,Gray,Red,Yellow |
| Nylon Plastic-For Socket Head Screws | ||||||
| 65035K81CHN | 3-Two Arm Grip | 1/4" | __ | 1 1/8" | 9/16" | Black |
| Polypropylene Plastic-For Socket Head Screws | ||||||
| 94052A510CHN | 4-Three Arm Grip | No. 10 | 3/4" | __ | 1/4" | Black |
| Polypropylene Plastic-For Hex Head Screws | ||||||
| 94052A620CHN | 5-Four Arm Grip | 3/8" | 2 1/4" | __ | 1" | Black |
| Polypropylene Plastic-For Hex Head Screws | ||||||
| 94052A550CHN | 6-Five Arm Grip | No. 10 | 1 1/4" | __ | 3/4" | Black |
| Acetal Plastic-For Socket Head Screws | ||||||
| 94052A041CHN | 7-Six Arm Grip | 1/4" | 1 1/2" | __ | 15/32" | Black,Gray,Red,Yellow |
| 94052A043CHN | 7-Six Arm Grip | 5/16" | 1 1/2" | __ | 13/32" | Black,Gray,Red,Yellow |
| 94052A046CHN | 7-Six Arm Grip | 3/8" | 1 1/2" | __ | 15/32" | Black,Gray,Red,Yellow |
| 91175A071CHN | 7-Six Arm Grip | M6 | 38mm | __ | 12.2mm | Black,Gray,Red,Yellow |
| 91175A072CHN | 7-Six Arm Grip | M8 | 38mm | __ | 10.4mm | Black,Gray,Red,Yellow |
| 91175A073CHN | 7-Six Arm Grip | M10 | 38mm | __ | 12.5mm | Black,Gray,Red,Yellow |
| Screw-Head Mount Knob Assortments |
| Black Acetal Plastic | |||||
| Part NO. | Style | Total No. of Pieces |
Grip Style | No. of Pieces |
For Screw Size |
| 91165A880CHN | Socket Head Screws | 295 | Knurled | 140 | No. 4, No. 6, No. 8, No. 10, 1/4", 5/16" |
| Single Arm | 15 | No. 10, 1/4", 5/16" | |||
| Two Arm | 60 | No. 10, 1/4", 5/16", 3/8" | |||
| Six Arm | 80 | 1/4", 5/16", 3/8" | |||
| 91165A440CHN | Socket Head Screws | 260 | Knurled | 120 | M3, M4, M5, M6, M8 |
| Two Arm | 60 | M5, M6, M8 | |||
| Six Arm | 80 | M6, M8, M10 |
| Screw-Head Mount Knobs with Messages |
| Black Acetal Plastic—For Socket Head Screws | |||||||
| Part NO. | Style | Screw Size | Head Dia. | Head Ht. | |||
| Caution | Do Not Remove | Lock/Unlock | Service Access | ||||
| 92144A110CHN | 92144A130CHN | 92144A150CHN | 92144A170CHN | Knurled Grip | No. 8 | 1/2" | 1/4" |
| 92144A210CHN | 92144A230CHN | 92144A250CHN | 92144A270CHN | Knurled Grip | No. 10 | 5/8" | 1/4" |
| 92144A310CHN | 92144A330CHN | 92144A350CHN | 92144A370CHN | Knurled Grip | 1/4" | 3/4" | 5/16" |
| 92144A410CHN | 92144A430CHN | 92144A450CHN | 92144A470CHN | Knurled Grip | 5/16" | 1" | 7/16" |
| Machinable-Hub Knobs |
| Black Phenolic Plastic | |||||
| Part NO. | Style | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. |
| 6479K13CHN | 2-Ribbed Grip | 1 1/4" | 3/8" | 5/8" | 3/8" |
| 6479K31CHN | 2-Ribbed Grip | 1 3/4" | 3/8" | 3/4" | 3/8" |
| Threaded-Stud Precise-Control Knobs |
| Part NO. | Style | Thread Size | Head Dia. | Head Ht. | Material | Color | Stud Dia. | Stud Material |
| 93228A150CHN | Knurled Grip | 1/4"-20 | 1" | 5/16" | Acetal Plastic | Black | 2" | Steel |
| 93228A250CHN | Six Arm Grip | 1/4"-20 | 1 1/2" | 1/2" | Acetal Plastic | Black | 3" | Steel |
| Screw-Head Mount Precise-Control Knobs |
| Part NO. | Style | Thread Size | Head Dia. | Head Ht. | For Screw Head Type |
Material | Color |
| 93228A400CHN | Knurled Grip | 1/4"-20 | 1" | 5/16" | Socket | Acetal Plastic | Black |
| 93228A500CHN | Six Arm Grip | 1/4"-20 | 1 1/2" | 1/2" | Socket | Acetal Plastic | Black |
| Threaded-Hole Knobs |
| Black Phenolic Plastic | ||||||||
| Part NO. | Style | Thread Size | Thread Dp. | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. | Insert Material |
| 6044K51CHN | 10-Smooth Grip | 6-32 | 1/4" | 5/8" | 3/16" | 3/8" | 9/16" | Brass |
| 6044K52CHN | 10-Smooth Grip | 8-32 | 3/8" | 5/8" | 3/16" | 3/8" | 9/16" | Brass |
| 6044K58CHN | 10-Smooth Grip | 8-32 | 3/8" | 13/16" | 3/16" | 7/16" | 9/16" | Brass |
| 6044K61CHN | 10-Smooth Grip | 8-32 | 3/8" | 7/8" | 1/4" | 1/2" | 11/16" | Brass |
| 6044K64CHN | 10-Smooth Grip | 8-32 | 3/8" | 1 1/16" | 1/4" | 9/16" | 3/4" | Brass |
| 6044K53CHN | 10-Smooth Grip | 10-32 | 5/16" | 5/8" | 3/16" | 3/8" | 7/16" | Brass |
| 6044K59CHN | 10-Smooth Grip | 10-32 | 3/8" | 13/16" | 1/4" | 7/16" | 9/16" | Brass |
| 6044K62CHN | 10-Smooth Grip | 10-32 | 3/8" | 7/8" | 1/4" | 1/2" | 11/16" | Brass |
| 6044K65CHN | 10-Smooth Grip | 10-32 | 3/8" | 1 1/16" | 1/4" | 9/16" | 3/4" | Brass |
| 6044K63CHN | 10-Smooth Grip | 1/4"-20 | 3/8" | 7/8" | 1/4" | 1/2" | 11/16" | Brass |
| Black Phenolic Plastic | ||||||||
| 6044K77CHN | 11-Smooth Grip | 8-32 | 3/8" | 13/16" | 1/16" | 7/16" | 9/16" | Brass |
| 6044K78CHN | 11-Smooth Grip | 8-32 | 3/8" | 1 1/16" | 1/16" | 9/16" | 11/16" | Brass |
| 6044K71CHN | 11-Smooth Grip | 8-32 | 3/8" | 1 1/2" | 1/4" | 11/16" | 5/8" | Brass |
| 6044K84CHN | 11-Smooth Grip | 10-32 | 3/8" | 13/16" | 1/16" | 7/16" | 9/16" | Brass |
| 6044K83CHN | 11-Smooth Grip | 10-32 | 3/8" | 13/16" | 1/16" | 7/16" | 3/4" | __ |
| 6044K72CHN | 11-Smooth Grip | 10-32 | 3/8" | 1 1/2" | 1/4" | 11/16" | 9/16" | Brass |
| 6044K73CHN | 11-Smooth Grip | 1/4"-20 | 7/16" | 1 1/2" | 1/4" | 11/16" | 9/16" | __ |
| Unthreaded Through-Hole Pull Knobs |
| Clear Acrylic Plastic | ||||||||
| Part NO. | Style | Hole Shape |
Head Dia. | Head Ht. | Hub Dia. | Hub Ht. | Hole Dia. | Hole Dp. |
| 1660A24CHN | Smooth Grip | Round | 1" | 3/16" | 1/2" | 9/16" | 3/16" | 3/4" |
| Unthreaded-Hole Pull Knobs |
| ABS Plastic | |||||||
| Part NO. | Style | Head Dia. | Head Ht. | Hub Dia. | Hub Ht. | Mounting Fasteners Included |
Color |
| 11645A11CHN | Smooth Grip | 1 5/16" | 3/8" | 11/16" | 1/2" | Yes | Black |
| 11645A12CHN | Smooth Grip | 1 5/16" | 3/8" | 11/16" | 1/2" | Yes | Gold |
| 11645A13CHN | Smooth Grip | 1 5/16" | 3/8" | 11/16" | 1/2" | Yes | Silver |
| Screw Caps |
| Flexible Plastic | |||||
| Part NO. | Style | Thread Dia. | Head Dia. | Max. Temp./°F |
Color |
| 1048N11CHN | Socket Head Screws | 1/4" | 1/2" | 150° | Semi-Clear White |
| 1048N12CHN | Socket Head Screws | 5/16" | 0.59" | 150° | Semi-Clear White |
| 1048N13CHN | Socket Head Screws | 3/8" | 0.69" | 150° | Semi-Clear White |
| 1048N14CHN | Socket Head Screws | 1/2" | 0.88" | 150° | Semi-Clear White |
| Hex Nut Caps |
| Rigid Plastic | ||||
| Part NO. | Nut Wd. |
Inside Ht. |
Max. Temp./°F |
Color |
| 9267K55CHN | 7/16" | 29/64" | 170° | Black |
| 9267K41CHN | 1/2" | 17/32" | 170° | Black |
| 9267K43CHN | 35/64" | 1/2" | 170° | Black |
| 9267K31CHN | 43/64" | 25/32" | 170° | Black |
| 9267K45CHN | 3/4" | 27/32" | 170° | Black |
| 9267K32CHN | 7/8" | 15/16" | 170° | Black |
| 9267K47CHN | 15/16" | 1" | 170° | Black |
| 9267K33CHN | 1 1/16" | 1" | 170° | Black |
| 9267K34CHN | 1 1/4" | 1 13/32" | 170° | Black |
| 9267K35CHN | 1 13/32" | 1 7/16" | 170° | Black |
| 9267K36CHN | 1 5/8" | 1 23/32" | 170° | Black |
| 9267K17CHN | 1 13/16" | 2" | 170° | Black |
| 9267K18CHN | 1 31/32" | 2 3/32" | 170° | Black |
| 9267K51CHN | 2 3/16" | 2 19/64" | 170° | Black |
| 9267K52CHN | 2 3/8" | 2 5/16" | 170° | Black |
| 9267K53CHN | 2 9/16" | 2 19/64" | 170° | Black |
| 9267K54CHN | 2 3/4" | 2 29/64" | 170° | Black |
| Hinged Fastener Caps |
| Rigid Plastic | |||||
| Part NO. | Thread Dia. | Inside Ht. |
OD | Max. Temp./°F |
Color |
| 91620A100CHN | No. 4, No. 5, No. 6 | 3/32" | 15/32" | 250° | Black,White |
| 91620A400CHN | No. 6, No. 8, No. 10, M3, M5, M4 | 9/64" | 9/16" | 135° | Beige,Dark Blue,Dark Brown,Dark Green,Dark Red,Light Brown,Light Gray,Off-White,Silver |
| 91620A200CHN | No. 8, No. 10 | 7/64" | 35/64" | 250° | Black,White |
| 91620A300CHN | 1/4" | 5/32" | 45/64" | 250° | Black,White |
| 91620A110CHN | 3/8" | 19/64" | 61/64" | 250° | Black,White |
| Snap-On Fastener Caps |
| Rigid Plastic | ||||
| Part NO. | Thread Dia. | Inside Ht. |
OD | Color |
| 91620A120CHN | No. 4 | 1/8" | 1/2" | Black,White |
| 91620A130CHN | No. 6 | 1/8" | 1/2" | Black,White |
| 91620A140CHN | No. 8 | 7/32" | 1/2" | Black,White |
| 91620A930CHN | No. 10 | 11/64" | 23/32" | Black |
| 91620A950CHN | No. 12 | 11/64" | 23/32" | Black |
| 91620A150CHN | 1/4" | 5/16" | 1 3/16" | Black,White |
| 91620A160CHN | 5/16" | 5/16" | 1 3/16" | Black,White |
| 91620A170CHN | 3/8" | 5/16" | 1 3/16" | Black,White |
| 91620A180CHN | 7/16" | 5/16" | 1 3/16" | Black,White |
| 91620A190CHN | 1/2" | 5/16" | 1 3/16" | Black,White |
| T-Slotted Framing Fasteners |
| Push-In Nut | ||||||
| Part NO. | For Rail Ht. Single | For Rail Ht. Double and Quad |
For Rail Ht. Triple | Mounting Hole Location |
Mounting Screw Size |
Mounting Fastener Thread Lg. |
| 3136N278CHN | 1 1/2" | 3" | 4 1/2" | Center | No. 12 | 5/8", 3/4", 1" |
| 3136N406CHN | 40mm | 80mm | 120mm | Center | No. 12 | 5/8", 3/4", 1" |
| Precision Acme Lead Screws and Nuts |
| PET Plastic | |||||||
| Part NO. | Round Nuts | Thread Size | Lg. | Dia. | No. of Thread Starts |
Speed Ratio |
Travel Distance per Turn |
| 1349K134CHN | Right-Hand Threaded | 3/8"-8 | 3/4" | 1.344" | 1 | 1:01 | 0.125" |
| 1349K138CHN | Right-Hand Threaded | 3/8"-10 | 3/4" | 1.344" | 1 | 1:01 | 0.1" |
| 1349K149CHN | Right-Hand Threaded | 3/8"-12 | 3/4" | 1.344" | 1 | 1:01 | 0.083" |
| 1349K39CHN | Right-Hand Threaded | 3/8"-16 | 3/4" | 1.344" | 1 | 1:01 | 0.063" |
| 1349K141CHN | Right-Hand Threaded | 1/2"-10 | 1" | 1.469" | 1 | 1:01 | 0.1" |
| 1349K23CHN | Right-Hand Threaded | 5/8"-5 | 1 1/4" | 1.859" | 1 | 1:01 | 0.2" |
| 1349K136CHN | Right-Hand Threaded | 5/8"-8 | 1 1/4" | 1.859" | 1 | 1:01 | 0.125" |
| 1349K143CHN | Right-Hand Threaded | 5/8"-10 | 1 1/4" | 1.859" | 1 | 1:01 | 0.1" |
| 1349K121CHN | Right-Hand Threaded | 3/4"-5 | 1 1/2" | 2.234" | 1 | 1:01 | 0.2" |
| 1349K129CHN | Right-Hand Threaded | 3/4"-6 | 1 1/2" | 2.234" | 1 | 1:01 | 0.167" |
| 1349K145CHN | Right-Hand Threaded | 3/4"-10 | 1 1/2" | 2.234" | 1 | 1:01 | 0.1" |
| PEEK Plastic | |||||||
| 90493A250CHN | Right-Hand Threaded | 1/2"-10 | 1" | 1.5" | 1 | 1:01 | 0.1" |
| PET Plastic | |||||||
| 1349K135CHN | Left-Hand Threaded | 3/8"-8 | 3/4" | 1.344" | 1 | 1:01 | 0.125" |
| 1349K139CHN | Left-Hand Threaded | 3/8"-10 | 3/4" | 1.344" | 1 | 1:01 | 0.1" |
| 1349K151CHN | Left-Hand Threaded | 3/8"-12 | 3/4" | 1.344" | 1 | 1:01 | 0.083" |
| 1349K142CHN | Left-Hand Threaded | 1/2"-10 | 1" | 1.469" | 1 | 1:01 | 0.1" |
| 1349K137CHN | Left-Hand Threaded | 5/8"-8 | 1 1/4" | 1.859" | 1 | 1:01 | 0.125" |
| 1349K144CHN | Left-Hand Threaded | 5/8"-10 | 1 1/4" | 1.859" | 1 | 1:01 | 0.1" |
| 1349K122CHN | Left-Hand Threaded | 3/4"-5 | 1 1/2" | 2.234" | 1 | 1:01 | 0.2" |
| 1349K131CHN | Left-Hand Threaded | 3/4"-6 | 1 1/2" | 2.234" | 1 | 1:01 | 0.167" |
| 1349K146CHN | Left-Hand Threaded | 3/4"-10 | 1 1/2" | 2.234" | 1 | 1:01 | 0.1" |
| PET Plastic | ||||||||
| Part NO. | Thread Size | Lg. | Dia. | No. of Thread Starts |
Speed Ratio |
Travel Distance per Turn |
External Thread Size | External Thread Lg. |
| 95075A210CHN | 1/4"-16 | 5/8" | 0.688" | 1 | 1:01 | 0.063" | 9/16"-18 | 3/8" |
| 95075A340CHN | 1/4"-20 | 5/8" | 0.688" | 1 | 1:01 | 0.05" | 9/16"-18 | 3/8" |
| 95075A224CHN | 3/8"-8 | 5/8" | 0.688" | 1 | 1:01 | 0.125" | 9/16"-18 | 3/8" |
| 95075A227CHN | 3/8"-10 | 5/8" | 0.688" | 1 | 1:01 | 0.1" | 9/16"-18 | 3/8" |
| 95075A104CHN | 3/8"-12 | 5/8" | 0.688" | 1 | 1:01 | 0.083" | 9/16"-18 | 3/8" |
| 95075A229CHN | 3/8"-16 | 5/8" | 0.688" | 1 | 1:01 | 0.063" | 9/16"-18 | 3/8" |
| 95075A106CHN | 1/2"-10 | 3/4" | 1.125" | 1 | 1:01 | 0.1" | 15/16"-16 | 1/2" |
| 95075A109CHN | 5/8"-8 | 1" | 1.125" | 1 | 1:01 | 0.125" | 15/16"-16 | 1/2" |
| 95075A249CHN | 5/8"-10 | 1" | 1.125" | 1 | 1:01 | 0.1" | 15/16"-16 | 1/2" |
| 95075A112CHN | 3/4"-5 | 1 1/4" | 1.125" | 1 | 1:01 | 0.2" | 1"-18 | 1/2" |
| 95075A113CHN | 3/4"-6 | 1 1/4" | 1.125" | 1 | 1:01 | 0.167" | 1"-18 | 1/2" |
| 95075A114CHN | 3/4"-10 | 1 1/4" | 1.125" | 1 | 1:01 | 0.1" | 1"-18 | 1/2" |
| 95075A118CHN | 1"-4 | 1 1/2" | 1.5" | 1 | 1:01 | 0.25" | 1 3/8"-16 | 1/2" |
| 95075A119CHN | 1"-5 | 1 1/2" | 1.5" | 1 | 1:01 | 0.2" | 1 3/8"-16 | 1/2" |
| 95075A120CHN | 1"-6 | 1 1/2" | 1.5" | 1 | 1:01 | 0.167" | 1 3/8"-16 | 1/2" |
| 95075A121CHN | 1"-10 | 1 1/2" | 1.5" | 1 | 1:01 | 0.1" | 1 3/8"-16 | 1/2" |
| 95075A218CHN | 1 1/4"-5 | 1 3/4" | 2.125" | 1 | 1:01 | 0.2" | 1 31/32"-18 | 13/16" |
| 95075A219CHN | 1 1/2"-4 | 2 19/64" | 2.125" | 1 | 1:01 | 0.25" | 1 31/32"-18 | 13/16" |
| 95075A222CHN | 2"-4 | 3 15/32" | 2.75" | 1 | 1:01 | 0.25" | 2 35/64"-18 | 7/8" |
| PEEK Plastic | ||||||||
| 90493A150CHN | 1/4"-20 | 5/8" | 0.688" | 1 | 1:01 | 0.05" | 9/16"-18 | 3/8" |
| 90493A160CHN | 1/2"-10 | 3/4" | 1.125" | 1 | 1:01 | 0.1" | 15/16"-16 | 1/2" |
| 90493A170CHN | 3/4"-5 | 1 1/4" | 1.125" | 1 | 1:01 | 0.2" | 1"-18 | 1/2" |
| 90493A180CHN | 3/4"-6 | 1 1/4" | 1.125" | 1 | 1:01 | 0.166" | 1"-18 | 1/2" |
| 90493A190CHN | 3/4"-10 | 1 1/4" | 1.125" | 1 | 1:01 | 0.1" | 1"-18 | 1/2" |
| 90493A210CHN | 1"-4 | 1 1/2" | 1.5" | 1 | 1:01 | 0.25" | 1 3/8"-16 | 1/2" |
| 90493A220CHN | 1"-5 | 1 1/2" | 1.5" | 1 | 1:01 | 0.2" | 1 3/8"-16 | 1/2" |
| 90493A230CHN | 1"-10 | 1 1/2" | 1.5" | 1 | 1:01 | 0.1" | 1 3/8"-16 | 1/2" |
| 90493A240CHN | 1 1/4"-5 | 1 3/4" | 2.125" | 1 | 1:01 | 0.2" | 1 31/32"-18 | 13/16" |
| 1117 Carbon Steel | |||||
| Part NO. | Style | Thread Size | Flange Dia. |
Flange Thick. |
Bolt Circle Dia. |
| 95082A644CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 95082A645CHN | Flanges | 1 31/32"-18 | 4 13/64" | 53/64" | 3 7/16" |
| 95082A646CHN | Flanges | 2 35/64"-18 | 4 15/16" | 29/32" | 4 1/16" |
| Black-Oxide 1117 Carbon Steel | |||||
| 1329K101CHN | Flanges | 9/16"-18 | 1 39/64" | 13/32" | 1 1/8" |
| 1329K102CHN | Flanges | 15/16"-16 | 2 39/64" | 17/32" | 2 3/32" |
| 1329K104CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 1329K105CHN | Flanges | 1 31/32"-18 | 4 13/64" | 53/64" | 3 7/16" |
| 1215 Carbon Steel | |||||
| 95082A641CHN | Flanges | 9/16"-18 | 1 39/64" | 13/32" | 1 1/8" |
| 95082A642CHN | Flanges | 15/16"-16 | 2 5/8" | 17/32" | 2 3/32" |
| 95082A643CHN | Flanges | 1"-18 | 2 5/8" | 17/32" | 2 3/32" |
| 303 Stainless Steel | |||||
| 1329K11CHN | Flanges | 9/16"-18 | 1 39/64" | 13/32" | 1 1/8" |
| 1329K12CHN | Flanges | 15/16"-16 | 2 5/8" | 17/32" | 2 3/32" |
| 1329K13CHN | Flanges | 1"-18 | 2 5/8" | 17/32" | 2 3/32" |
| 1329K14CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 1329K15CHN | Flanges | 1 31/32"-18 | 4 13/64" | 53/64" | 3 7/16" |
| 1329K16CHN | Flanges | 2 35/64"-18 | 4 15/16" | 29/32" | 4 1/16" |
| Fast-Travel Precision Acme Lead Screws and Nuts |
| PET Plastic | |||||||
| Part NO. | Round Nuts | Thread Size | Lg. | Dia. | No. of Thread Starts |
Speed Ratio |
Travel Distance per Turn |
| 1349K105CHN | Right-Hand Threaded | 1/4"-12 | 3/4" | 1.344" | 4 | 4:01 | 0.333" |
| 1349K107CHN | Right-Hand Threaded | 3/8"-8 | 3/4" | 1.344" | 2 | 2:01 | 0.25" |
| 1349K101CHN | Right-Hand Threaded | 3/8"-8 | 3/4" | 1.344" | 4 | 4:01 | 0.5" |
| 1349K118CHN | Right-Hand Threaded | 3/8"-10 | 3/4" | 1.344" | 2 | 2:01 | 0.2" |
| 1349K15CHN | Right-Hand Threaded | 1/2"-8 | 1" | 1.469" | 2 | 2:01 | 0.25" |
| 1349K22CHN | Right-Hand Threaded | 1/2"-10 | 1" | 1.469" | 2 | 2:01 | 0.2" |
| 1349K103CHN | Right-Hand Threaded | 1/2"-10 | 1" | 1.469" | 5 | 5:01 | 0.5" |
| PET Plastic | ||||||||
| Part NO. | Thread Size | Lg. | Dia. | No. of Thread Starts |
Speed Ratio |
Travel Distance per Turn |
External Thread Size | External Thread Lg. |
| 95075A207CHN | 1/4"-12 | 5/8" | 0.688" | 4 | 4:01 | 0.333" | 9/16"-18 | 3/8" |
| 95075A101CHN | 3/8"-5 | 5/8" | 0.688" | 5 | 5:01 | 1" | 9/16"-18 | 3/8" |
| 95075A226CHN | 3/8"-8 | 5/8" | 0.688" | 2 | 2:01 | 0.25" | 9/16"-18 | 3/8" |
| 95075A225CHN | 3/8"-8 | 5/8" | 0.688" | 4 | 4:01 | 0.5" | 9/16"-18 | 3/8" |
| 95075A228CHN | 3/8"-10 | 5/8" | 0.688" | 2 | 2:01 | 0.2" | 9/16"-18 | 3/8" |
| 95075A105CHN | 1/2"-8 | 3/4" | 1.125" | 2 | 2:01 | 0.25" | 15/16"-16 | 1/2" |
| 95075A247CHN | 1/2"-10 | 3/4" | 1.125" | 2 | 2:01 | 0.2" | 15/16"-16 | 1/2" |
| 95075A245CHN | 1/2"-10 | 3/4" | 1.125" | 5 | 5:01 | 0.5" | 15/16"-16 | 1/2" |
| 95075A230CHN | 3/4"-8 | 1 1/4" | 1.125" | 4 | 4:01 | 0.5" | 1"-18 | 1/2" |
| 95075A260CHN | 1"-4 | 1 1/2" | 1.5" | 2 | 2:01 | 0.5" | 1 3/8"-16 | 1/2" |
| 1117 Carbon Steel | |||||
| Part NO. | Style | Thread Size | Flange Dia. |
Flange Thick. |
Bolt Circle Dia. |
| 95082A644CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 1215 Carbon Steel | |||||
| 95082A643CHN | Flanges | 1"-18 | 2 5/8" | 17/32" | 2 3/32" |
| 95082A642CHN | Flanges | 15/16"-16 | 2 5/8" | 17/32" | 2 3/32" |
| 95082A641CHN | Flanges | 9/16"-18 | 1 39/64" | 13/32" | 1 1/8" |
| 303 Stainless Steel | |||||
| 1329K14CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 1329K13CHN | Flanges | 1"-18 | 2 5/8" | 17/32" | 2 3/32" |
| 1329K12CHN | Flanges | 15/16"-16 | 2 5/8" | 17/32" | 2 3/32" |
| 1329K11CHN | Flanges | 9/16"-18 | 1 39/64" | 13/32" | 1 1/8" |
| Ultra-Precision Lead Screws and Nuts |
| Acetal Plastic | |||||||||||
| Part NO. | Style | Thread Size | Lg. | Dia. | Flange Dia. | Flange Wd. | Flange Ht. | Flange Thick. | Travel Distance per Turn |
Mounting Hole Ctr.-to-Ctr. |
Bolt Circle Dia. |
| 6350K682CHN | A | 1/8"-20.8 | 1/2" | 0.4" | __ | 3/4" | 13/32" | 1/8" | 0.048" | 39/64" | __ |
| 6350K681CHN | A | 1/8"-41.7 | 1/2" | 0.4" | __ | 3/4" | 13/32" | 1/8" | 0.024" | 39/64" | __ |
| 6642K22CHN | A | 9/64"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.048" | 39/64" | __ |
| 6642K21CHN | A | 9/64"-41.7 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.024" | 39/64" | __ |
| 6642K24CHN | A | 7/32"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.048" | 39/64" | __ |
| 6350K171CHN | B | 1/4"-20 | 1" | 0.5" | 1" | __ | __ | 3/16" | 0.05" | __ | 3/4" |
| 6350K683CHN | B | 1/4"-40 | 1" | 0.5" | 1" | __ | __ | 3/16" | 0.025" | __ | 3/4" |
| 6350K33CHN | B | 3/8"-10 | 1" | 0.625" | 1 7/64" | __ | __ | 3/16" | 0.1" | __ | 7/8" |
| 6350K172CHN | B | 3/8"-20 | 1" | 0.625" | 1 7/64" | __ | __ | 3/16" | 0.05" | __ | 7/8" |
| 6350K175CHN | B | 3/8"-40 | 1" | 0.625" | 1 7/64" | __ | __ | 3/16" | 0.025" | __ | 7/8" |
| 6350K163CHN | B | 1/2"-8 | 1 1/2" | 0.75" | 1 1/2" | __ | __ | 3/16" | 0.125" | __ | 1 1/8" |
| 6350K41CHN | B | 1/2"-10 | 1 1/2" | 0.75" | 1 1/2" | __ | __ | 3/16" | 0.1" | __ | 1 1/8" |
| 6350K173CHN | B | 1/2"-20 | 1 1/2" | 0.75" | 1 1/2" | __ | __ | 3/16" | 0.05" | __ | 1 1/8" |
| 6350K167CHN | B | 5/8"-10 | 1 1/2" | 0.875" | 1 1/2" | __ | __ | 3/16" | 0.1" | __ | 1 3/16" |
| 6350K168CHN | B | 3/4"-10 | 2" | 1.125" | 1 51/64" | __ | __ | 1/4" | 0.1" | __ | 1 7/16" |
| Acetal Plastic with Wear-Compensating Internal O-Ring | |||||||||||
| 6642K32CHN | A | 9/64"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.048" | 39/64" | __ |
| 6642K31CHN | A | 9/64"-41.7 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.024" | 39/64" | __ |
| 6642K34CHN | A | 7/32"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.048" | 39/64" | __ |
| Acetal Plastic with Wear-Compensating Spring | |||||||||||
| 6350K206CHN | B | 3/4"-10 | 2 45/64" | 1.563" | 2 13/32" | __ | __ | 5/16" | 0.1" | __ | 2" |
| 6350K208CHN | C | 1/4"-20 | 1" | 0.5" | 1" | __ | __ | 3/16" | 0.05" | __ | 3/4" |
| 6350K53CHN | C | 3/8"-10 | 1 29/32" | 0.703" | 1 1/2" | __ | __ | 3/16" | 0.1" | __ | 1 1/8" |
| 6350K209CHN | C | 3/8"-20 | 1 29/32" | 0.703" | 1 1/2" | __ | __ | 3/16" | 0.05" | __ | 1 1/8" |
| 6350K213CHN | C | 3/8"-40 | 1 29/32" | 0.703" | 1 1/2" | __ | __ | 3/16" | 0.025" | __ | 1 1/8" |
| 6350K201CHN | C | 1/2"-8 | 2" | 0.891" | 1 39/64" | __ | __ | 17/64" | 0.125" | __ | 1 1/4" |
| 6350K61CHN | C | 1/2"-10 | 2" | 0.891" | 1 39/64" | __ | __ | 17/64" | 0.1" | __ | 1 1/4" |
| 6350K211CHN | C | 1/2"-20 | 2" | 0.891" | 1 39/64" | __ | __ | 17/64" | 0.05" | __ | 1 1/4" |
| 6350K205CHN | C | 5/8"-10 | 2" | 1.063" | 1 51/64" | __ | __ | 17/64" | 0.1" | __ | 1 3/8" |
| Fast-Travel Ultra-Precision Lead Screws and Nuts |
| Acetal Plastic | |||||||||||
| Part NO. | Style | Thread Size | Lg. | Dia. | Flange Dia. | Flange Wd. | Flange Ht. | Flange Thick. | Travel Distance per Turn |
Mounting Hole Ctr.-to-Ctr. |
Bolt Circle Dia. |
| 6642K23CHN | A | 9/64"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.096" | 39/64" | __ |
| 6642K25CHN | A | 5/32"-21.3 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.094" | 39/64" | __ |
| 6642K57CHN | A | 3/16"-42.7 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.375" | 39/64" | __ |
| 6642K26CHN | A | 7/32"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.192" | 39/64" | __ |
| 6350K32CHN | B | 1/4"-8 | 1" | 0.5" | 1" | __ | __ | 3/16" | 1" | __ | 3/4" |
| 6350K31CHN | B | 1/4"-16 | 1" | 0.5" | 1" | __ | __ | 3/16" | 0.25" | __ | 3/4" |
| 6350K166CHN | B | 1/4"-20 | 1" | 0.5" | 1" | __ | __ | 3/16" | 0.1" | __ | 3/4" |
| 6350K36CHN | B | 3/8"-5 | 1" | 0.625" | 1 7/64" | __ | __ | 3/16" | 1" | __ | 7/8" |
| 6350K35CHN | B | 3/8"-8 | 1" | 0.625" | 1 7/64" | __ | __ | 3/16" | 0.5" | __ | 7/8" |
| 6350K34CHN | B | 3/8"-10 | 1" | 0.625" | 1 7/64" | __ | __ | 3/16" | 0.2" | __ | 7/8" |
| 6350K151CHN | B | 3/8"-12 | 1" | 0.625" | 1 7/64" | __ | __ | 3/16" | 0.25" | __ | 7/8" |
| 6350K153CHN | B | 1/2"-8 | 1 1/2" | 0.75" | 1 1/2" | __ | __ | 3/16" | 0.25" | __ | 1 1/8" |
| 6350K43CHN | B | 1/2"-8 | 1 1/2" | 0.75" | 1 1/2" | __ | __ | 3/16" | 0.5" | __ | 1 1/8" |
| 6350K44CHN | B | 1/2"-8 | 1 1/2" | 0.75" | 1 1/2" | __ | __ | 3/16" | 1" | __ | 1 1/8" |
| 6350K42CHN | B | 1/2"-10 | 1 1/2" | 0.75" | 1 1/2" | __ | __ | 3/16" | 0.2" | __ | 1 1/8" |
| 6350K139CHN | B | 5/8"-6 | 1 1/2" | 0.875" | 1 1/2" | __ | __ | 3/16" | 2" | __ | 1 3/16" |
| 6350K145CHN | B | 5/8"-8 | 1 1/2" | 0.875" | 1 1/2" | __ | __ | 3/16" | 0.5" | __ | 1 3/16" |
| 6350K684CHN | B | 3/4"-8 | 2" | 1.125" | 1 3/4" | __ | __ | 1/4" | 1" | __ | 1 7/16" |
| 6350K45CHN | B | 3/4"-8 | 2" | 1.125" | 1 51/64" | __ | __ | 1/4" | 0.25" | __ | 1 7/16" |
| Acetal Plastic with Wear-Compensating Internal O-Ring | |||||||||||
| 6642K33CHN | A | 9/64"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.096" | 39/64" | __ |
| 6642K35CHN | A | 5/32"-21.3 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.094" | 39/64" | __ |
| 6642K67CHN | A | 3/16"-42.7 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.375" | 39/64" | __ |
| 6642K36CHN | A | 7/32"-20.8 | 1/2" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 0.192" | 39/64" | __ |
| Acetal Plastic with Wear-Compensating Spring | |||||||||||
| 6350K65CHN | B | 3/4"-8 | 2 45/64" | 1.563" | 2 13/32" | __ | __ | 5/16" | 0.25" | __ | 2" |
| 6350K52CHN | C | 1/4"-8 | 1" | 0.5" | 1" | __ | __ | 3/16" | 1" | __ | 3/4" |
| 6350K51CHN | C | 1/4"-16 | 1" | 0.5" | 1" | __ | __ | 3/16" | 0.25" | __ | 3/4" |
| 6350K204CHN | C | 1/4"-20 | 1" | 0.5" | 1" | __ | __ | 3/16" | 0.1" | __ | 3/4" |
| 6350K56CHN | C | 3/8"-5 | 1 29/32" | 0.703" | 1 1/2" | __ | __ | 3/16" | 1" | __ | 1 1/8" |
| 6350K55CHN | C | 3/8"-8 | 1 29/32" | 0.703" | 1 1/2" | __ | __ | 3/16" | 0.5" | __ | 1 1/8" |
| 6350K54CHN | C | 3/8"-10 | 1 29/32" | 0.703" | 1 1/2" | __ | __ | 3/16" | 0.2" | __ | 1 1/8" |
| 6350K188CHN | C | 3/8"-12 | 1 29/32" | 0.703" | 1 1/2" | __ | __ | 3/16" | 0.25" | __ | 1 1/8" |
| 6350K191CHN | C | 1/2"-8 | 2" | 0.891" | 1 39/64" | __ | __ | 17/64" | 0.25" | __ | 1 1/4" |
| 6350K63CHN | C | 1/2"-8 | 2" | 0.891" | 1 39/64" | __ | __ | 17/64" | 0.5" | __ | 1 1/4" |
| 6350K64CHN | C | 1/2"-8 | 2" | 0.891" | 1 39/64" | __ | __ | 17/64" | 1" | __ | 1 1/4" |
| 6350K62CHN | C | 1/2"-10 | 2" | 0.891" | 1 39/64" | __ | __ | 17/64" | 0.2" | __ | 1 1/4" |
| 6350K177CHN | C | 5/8"-6 | 2" | 1.063" | 1 51/64" | __ | __ | 17/64" | 2" | __ | 1 3/8" |
| 6350K183CHN | C | 5/8"-8 | 2" | 1.063" | 1 51/64" | __ | __ | 17/64" | 0.5" | __ | 1 3/8" |
| Metric Fast-Travel Ultra-Precision Lead Screws and Nuts |
| Acetal Plastic | ||||||||
| Part NO. | Style | Thread Size | Thread Pitch/mm | Lg. | Dia. | No. of Thread Starts |
Speed Ratio |
Travel Distance per Turn/mm |
| 2391N17CHN | A | M8 | 2.5 | 15/32" | 0.709" | 4 | 4:01 | 10 |
| 2391N18CHN | A | M10 | 3 | 25/32" | 0.866" | 4 | 4:01 | 12 |
| 2391N19CHN | A | M12 | 2.5 | 15/16" | 1.024" | 2 | 2:01 | 5 |
| 2391N21CHN | A | M16 | 5 | 1 17/64" | 1.417" | 7 | 7:01 | 35 |
| 2391N22CHN | A | M20 | 5 | 1 37/64" | 1.772" | 4 | 4:01 | 20 |
| 2391N23CHN | A | M20 | 7.5 | 1 37/64" | 1.772" | 8 | 8:01 | 60 |
| Metric Fast-Travel Ultra-Precision Lead Screws and Nuts |
| Acetal Plastic | |||||||||||
| Part NO. | Style | Thread Size | Thread Pitch/mm | Dia. | Wd. | Ht. | Thick. | Hex Wd. |
Travel Distance per Turn/mm |
External Thread Size | External Thread Lg. |
| 97783A190CHN | B | M2 | 0.5 | 11/16" | __ | __ | 0.297" | 7/16" | 1 | 3/8"-24 | 3/16" |
| 97783A210CHN | B | M4 | 1.25 | 11/16" | __ | __ | 0.297" | 7/16" | 10 | 3/8"-24 | 3/16" |
| 97783A220CHN | B | M5 | 1.25 | 11/16" | __ | __ | 0.297" | 7/16" | 5 | 3/8"-24 | 3/16" |
| 97783A230CHN | B | M8 | 2 | 1" | __ | __ | 0.548" | 11/16" | 4 | 5/8"-18 | 1/4" |
| PEEK Plastic | |||||||||||
| 4537N161CHN | C | M2 | 0.4 | 5/16" | 0.22" | 0.197" | __ | __ | 0.75 | M5 | 9/64" |
| 4537N162CHN | C | M2 | 0.4 | 5/16" | 0.22" | 0.197" | __ | __ | 1.5 | M5 | 9/64" |
| 4537N163CHN | C | M2 | 0.4 | 5/16" | 0.22" | 0.197" | __ | __ | 3 | M5 | 9/64" |
| 4537N164CHN | C | M3 | 0.5 | 13/32" | 0.311" | 0.276" | __ | __ | 1 | M7 | 5/32" |
| 4537N165CHN | C | M3 | 0.5 | 13/32" | 0.311" | 0.276" | __ | __ | 3 | M7 | 5/32" |
| 4537N166CHN | C | M4 | 1 | 1/2" | 0.402" | 0.354" | __ | __ | 4 | M9 | 13/64" |
| 4537N167CHN | C | M4 | 1 | 1/2" | 0.402" | 0.354" | __ | __ | 8 | M9 | 13/64" |
| Metric Fast-Travel Ultra-Precision Lead Screws and Nuts |
| Acetal Plastic | |||||||||||
| Part NO. | Style | Thread Size | Thread Pitch/mm | Lg. | Dia. | Flange Dia. | Flange Wd. | Flange Ht. | Flange Thick. | Travel Distance per Turn |
Bolt Circle Dia. |
| 97783A240CHN | D | M2 | 0.5 | 1/2" | 0.297" | __ | 3/4" | 13/32" | 1/8" | 1 | 39/64" |
| 97783A250CHN | D | M4 | 1.25 | 1/2" | 0.297" | __ | 3/4" | 13/32" | 1/8" | 10 | 39/64" |
| 97783A260CHN | D | M5 | 1.25 | 1/2" | 0.297" | __ | 3/4" | 13/32" | 1/8" | 5 | 39/64" |
| 97783A270CHN | E | M8 | 2 | 3/4" | 0.548" | 1 1/8" | __ | __ | 3/16" | 4 | 7/8" |
| 2391N11CHN | F | M8 | 2.5 | 25/32" | 0.787" | 1 27/64" | __ | __ | 5/16" | 10 | 1 7/64" |
| 2391N12CHN | F | M10 | 3 | 63/64" | 0.984" | 1 21/32" | __ | __ | 25/64" | 12 | 1 11/32" |
| 2391N13CHN | F | M12 | 2.5 | 1 3/8" | 1.102" | 1 57/64" | __ | __ | 15/32" | 5 | 1 1/2" |
| 2391N14CHN | F | M16 | 5 | 1 3/8" | 1.102" | 1 57/64" | __ | __ | 15/32" | 35 | 1 1/2" |
| 2391N15CHN | F | M20 | 5 | 1 47/64" | 1.26" | 2 11/64" | __ | __ | 15/32" | 20 | 1 49/64" |
| 2391N16CHN | F | M20 | 7.5 | 1 47/64" | 1.26" | 2 11/64" | __ | __ | 15/32" | 60 | 1 49/64" |
| PEEK Plastic | |||||||||||
| 4537N181CHN | D | M2 | 0.4 | 9/32" | 0.209" | __ | 15/32" | 15/64" | 5/64" | 0.75 | 11/32" |
| 4537N182CHN | D | M2 | 0.4 | 9/32" | 0.209" | __ | 15/32" | 15/64" | 5/64" | 1.5 | 11/32" |
| 4537N183CHN | D | M2 | 0.4 | 9/32" | 0.209" | __ | 15/32" | 15/64" | 5/64" | 3 | 11/32" |
| 4537N184CHN | D | M3 | 0.5 | 21/64" | 0.295" | __ | 39/64" | 5/16" | 3/32" | 1 | 15/32" |
| 4537N185CHN | D | M3 | 0.5 | 21/64" | 0.295" | __ | 39/64" | 5/16" | 3/32" | 3 | 15/32" |
| 4537N186CHN | D | M3 | 0.5 | 21/64" | 0.295" | __ | 39/64" | 5/16" | 3/32" | 6 | 15/32" |
| 4537N187CHN | D | M4 | 1 | 13/32" | 0.354" | __ | 3/4" | 13/32" | 1/8" | 4 | 19/32" |
| 4537N188CHN | D | M4 | 1 | 13/32" | 0.354" | __ | 3/4" | 13/32" | 1/8" | 8 | 19/32" |
| PEEK Plastic with Wear-Compensating Internal O-Ring | |||||||||||
| 4537N201CHN | D | M2 | 0.4 | 5/16" | 0.228" | __ | 15/32" | 15/64" | 5/64" | 0.75 | 11/32" |
| 4537N202CHN | D | M2 | 0.4 | 5/16" | 0.228" | __ | 15/32" | 15/64" | 5/64" | 1.5 | 11/32" |
| 4537N203CHN | D | M2 | 0.4 | 5/16" | 0.228" | __ | 15/32" | 15/64" | 5/64" | 3 | 11/32" |
| 4537N204CHN | D | M3 | 0.5 | 25/64" | 0.315" | __ | 39/64" | 5/16" | 3/32" | 1 | 15/32" |
| 4537N205CHN | D | M3 | 0.5 | 25/64" | 0.315" | __ | 39/64" | 5/16" | 3/32" | 3 | 15/32" |
| 4537N206CHN | D | M3 | 0.5 | 25/64" | 0.315" | __ | 39/64" | 5/16" | 3/32" | 6 | 15/32" |
| 4537N207CHN | D | M4 | 1 | 31/64" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 4 | 19/32" |
| 4537N208CHN | D | M4 | 1 | 31/64" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 8 | 19/32" |
| Metric Ultra-Precision Lead Screws and Nuts |
| Acetal Plastic | |||||||||||
| Part NO. | Style | Thread Size | Thread Pitch/mm | Lg. | Wd. | Ht. | Dia. | Hex Wd. |
External Thread Size | External Thread Pitch | External Thread Lg. |
| 7549K58CHN | A | M2 | 0.5 | 11/16" | __ | __ | 0.297" | 7/16" | 3/8"-24 | __ | 3/16" |
| 7549K59CHN | A | M4 | 0.3 | 11/16" | __ | __ | 0.297" | 7/16" | 3/8"-24 | __ | 3/16" |
| 7549K61CHN | A | M8 | 1.5 | 1" | __ | __ | 0.548" | 11/16" | 5/8"-18 | __ | 1/4" |
| PEEK Plastic | |||||||||||
| 90500A220CHN | B | M2 | 0.4 | 5/16" | 0.22" | 0.197" | __ | __ | M5 | 0.8mm | 9/64" |
| 90500A230CHN | B | M3 | 0.5 | 13/32" | 0.311" | 0.276" | __ | __ | M7 | 0.75mm | 5/32" |
| 90500A240CHN | B | M4 | 1 | 1/2" | 0.402" | 0.354" | __ | __ | M9 | 1mm | 13/64" |
| Metric Ultra-Precision Lead Screws and Nuts |
| Acetal Plastic | ||||||||||
| Part NO. | Style | Thread Size | Thread Pitch/mm | Lg. | Dia. | Flange Dia. | Flange Wd. | Flange Ht. | Flange Thick. | Bolt Circle Dia. |
| 7549K62CHN | C | M2 | 0.5 | 1/2" | 0.297" | __ | 3/4" | 13/32" | 1/8" | 39/64" |
| 7549K63CHN | C | M4 | 0.3 | 1/2" | 0.297" | __ | 3/4" | 13/32" | 1/8" | 39/64" |
| 7549K64CHN | D | M8 | 1.5 | 3/4" | 0.548" | 1 1/8" | __ | __ | 3/16" | 7/8" |
| PEEK Plastic | ||||||||||
| 90500A250CHN | C | M2 | 0.4 | 9/32" | 0.209" | __ | 15/32" | 15/64" | 5/64" | 11/32" |
| 90500A260CHN | C | M3 | 0.5 | 21/64" | 0.295" | __ | 39/64" | 5/16" | 3/32" | 15/32" |
| 90500A270CHN | C | M4 | 1 | 13/32" | 0.354" | __ | 3/4" | 13/32" | 1/8" | 19/32" |
| PEEK Plastic with Wear-Compensating Internal O-Ring | ||||||||||
| 90500A280CHN | C | M2 | 0.4 | 5/16" | 0.228" | __ | 15/32" | 15/64" | 5/64" | 11/32" |
| 90500A290CHN | C | M3 | 0.5 | 25/64" | 0.315" | __ | 39/64" | 5/16" | 3/32" | 15/32" |
| 90500A310CHN | C | M4 | 1 | 31/64" | 0.406" | __ | 3/4" | 13/32" | 1/8" | 19/32" |
| Precision Acme Lead Screws and Nuts |
| Acetal Plastic | ||||||||
| Part NO. | Thread Size | Lg. | Dia. | No. of Thread Starts |
Speed Ratio |
Travel Distance per Turn |
External Thread Size | External Thread Lg. |
| 90493A110CHN | 3/4"-8 | 1 1/4" | 1.125" | 1 | 1:01 | 0.125" | 1"-18 | 1/2" |
| 90493A120CHN | 3/4"-16 | 1 1/4" | 1.125" | 1 | 1:01 | 0.063" | 1"-18 | 1/2" |
| 90493A130CHN | 1"-8 | 1 1/2" | 1.5" | 1 | 1:01 | 0.125" | 1 3/8"-16 | 1/2" |
| 90493A140CHN | 1 1/2"-10 | 2 19/64" | 2.125" | 1 | 1:01 | 0.1" | 1 31/32"-18 | 13/16" |
| Precision Acme Lead Screws and Nuts |
| 1117 Carbon Steel | |||||
| Part NO. | Style | Thread Size | Flange Dia. |
Flange Thick. |
Bolt Circle Dia. |
| 95082A644CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 95082A645CHN | Flanges | 1 31/32"-18 | 4 13/64" | 53/64" | 3 7/16" |
| Black-Oxide 1117 Carbon Steel | |||||
| 1329K104CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 1329K105CHN | Flanges | 1 31/32"-18 | 4 13/64" | 53/64" | 3 7/16" |
| 1215 Carbon Steel | |||||
| 95082A643CHN | Flanges | 1"-18 | 2 5/8" | 17/32" | 2 3/32" |
| 303 Stainless Steel | |||||
| 1329K13CHN | Flanges | 1"-18 | 2 5/8" | 17/32" | 2 3/32" |
| 1329K14CHN | Flanges | 1 3/8"-16 | 2 49/64" | 33/64" | 2 17/64" |
| 1329K15CHN | Flanges | 1 31/32"-18 | 4 13/64" | 53/64" | 3 7/16" |
| Routing Eyebolts with Nuts—Not for Lifting |
| Nylon Plastic | ||||||||
| Part NO. | Type | Thread Size | Thread Lg. | Shank Lg. |
Overall Lg. |
Eye Dia. |
Nuts No. Included |
Nuts Style |
| 9686T71CHN | Closed Eye | 6-32 | 5/8" | 3/4" | 1 1/4" | 1/4" | 1 | Hex |
| 9686T72CHN | Closed Eye | 8-32 | 1" | 1 1/8" | 1 5/8" | 1/4" | 1 | Hex |
| 9686T73CHN | Closed Eye | 10-24 | 7/8" | 1" | 1 3/4" | 3/8" | 1 | Hex |
| 9686T74CHN | Closed Eye | 1/4"-20 | 7/8" | 1" | 2" | 1/2" | 1 | Hex |
| 9686T75CHN | Closed Eye | 1/4"-20 | 1 1/4" | 1 1/2" | 2 1/2" | 1/2" | 1 | Hex |
| 9686T76CHN | Closed Eye | 1/4"-20 | 1 1/4" | 2" | 3" | 1/2" | 1 | Hex |
| 9686T78CHN | Closed Eye | 5/16"-18 | 7/8" | 1" | 2 1/4" | 5/8" | 1 | Hex |
| 9686T79CHN | Closed Eye | 5/16"-18 | 1 1/4" | 2" | 3 1/4" | 5/8" | 1 | Hex |
| 9686T81CHN | Closed Eye | 3/8"-16 | 7/8" | 1" | 2 1/2" | 3/4" | 1 | Hex |
| 9686T82CHN | Closed Eye | 3/8"-16 | 1 1/4" | 2" | 3 1/2" | 3/4" | 1 | Hex |
| 9686T83CHN | Closed Eye | 3/8"-16 | 1 1/2" | 2 1/2" | 4" | 3/4" | 1 | Hex |
| 9686T84CHN | Closed Eye | 3/8"-16 | 2 1/2" | 4" | 5 1/2" | 3/4" | 1 | Hex |
| Screw Conveyors |
| Polyethylene Plastic | ||||
| Part NO. | Type | Screw Dia. |
Shaft Dia. |
Max. Temp./°F |
| 5866K534CHN | Bearings | 4" | 1" | 225° |
| UHMW Polyethylene Plastic (FDA Compliant 21 CFR 177.1520) | ||||
| 5914K47CHN | Bearings | 6", 9" | 1 1/2" | __ |
| 5914K48CHN | Bearings | 9", 12" | 2" | __ |
| 5914K63CHN | Bearings | 12", 14" | 2 7/16" | __ |
| Bowl-to-Floor Toilet Mounting Hardware |
| Part NO. | Material | Thread Size | Lg. | Includes |
| 2765K6CHN | Plastic | 5/16"-18 | 2 1/2" | Two Bolts, Two Nuts |
| Toilet Mounting Flanges |
| Part NO. | Material | Pipe Size | Thick. | Fasteners Included |
No. of Holes |
Hole Dia. |
No. of Slots |
Slot Lg. |
Slot Wd. |
| 29045K62CHN | PVC Plastic | 4 | 7/16" | No | 4 | 1/4" | 2 | 1 1/4" | 11/32" |
| 29045K64CHN | ABS Plastic | 4 | 7/16" | No | 4 | 1/4" | 2 | 1 1/4" | 11/32" |
如果您需要获取以上塑料螺丝的免费样品,三维工程数模或者报价，或者您没有找到您中意的产品，我们将竭力提供帮助！
欢迎您即刻联络我们的产品经理Jack Yao: jack.y@sinohua.com.cn, 电话:166 2512 4595
